74258 (Z 288 E) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230999999) (2003) GUARD ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

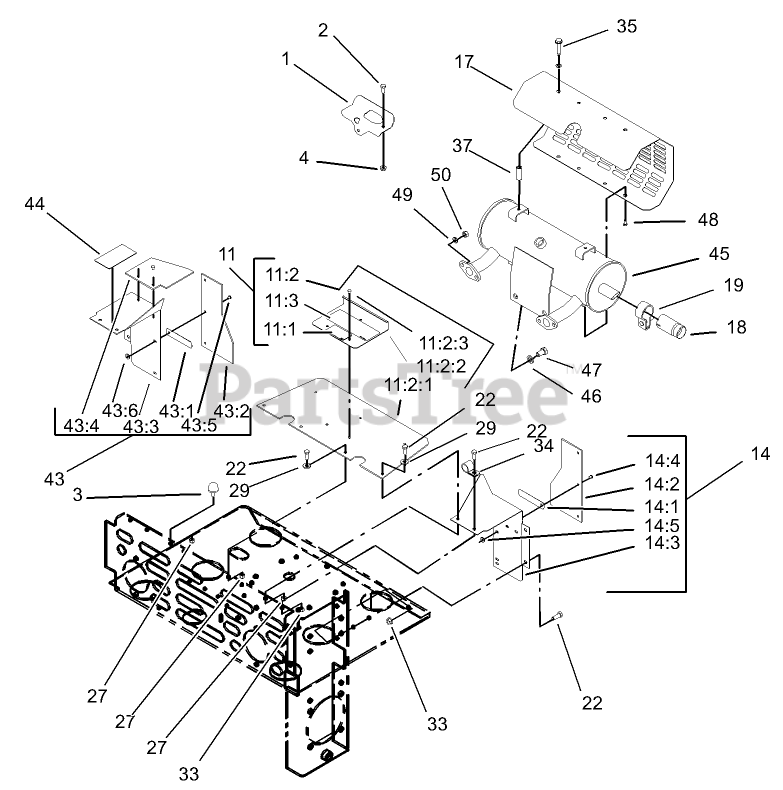

GUARD ASSEMBLY Parts Diagram

  • Title

1

Toro 103-3388

SHIELD-HEAT, CABLE

$

$

Not available

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

4

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

11

Toro 1-644276

SHIELD ASM

$124.99

$

In Stock, only 2 left!

0

11:1

Toro 1-633462

DECAL-IMPORTANT

$5.49

$

In Stock, only 3 left!

0

11:2

Toro 1-634308

SHIELD AND LIFT ASM

$104.99

$

Usually ships in 3-6 days

0

11:2:1

Toro 103-1308

SHIELD-ENGINE

$36.99

$

In Stock, Qty 9

0

11:2:2

Toro 1-633300-03

LIFT-SHIELD

$18.99

$

Usually ships in 3-6 days

0

11:2:3

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

11:3

Toro 103-0368

DECAL-DEVICES, ROTATING
(Superseded to 103-5881)

$6.99

$

In Stock, Qty 9

0

14

Toro 1-634796

LH SHIELD ASM

$

$

Not available

14:1

Toro 1-523285

CLIP-BAFFLE, REAR

$

$

Not available

14:2

Toro 1-633301

SHIELD-ENGINE

$18.99

$

Usually ships in 3-6 days

0

14:3

Toro 1-633795-03

BAFFLE-ENGINE SHIELD, LH

$

$

Not available

14:4

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

14:5

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

17

Toro 1-643313-03

GUARD-MUFFLER

$120.99

$

In Stock, Qty 5

0

18

Toro 103-1513

ARRESTER-SPARK

$

$

Not available

19

Toro 103-1514

CLAMP-MUFFLER

$

$

Not available

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

35

Toro 1-809108

SCREW-HWH

$6.99

$

In Stock, only 1 left!

0

37

Toro 1-323236

SPACER

$8.49

$

In Stock, Qty 13

0

43

Toro 1-644316

RH SHIELD ASM

$

$

Not available

43:1

Toro 1-523285

CLIP-BAFFLE, REAR

$

$

Not available

43:2

Toro 1-633301

SHIELD-ENGINE

$18.99

$

Usually ships in 3-6 days

0

43:3

Toro 1-633794-03

SHIELD-RH

$

$

Not available

43:4

Toro 1-643315

BAFFLE-COOLER, ENGINE

$16.99

$

Usually ships in 3-6 days

0

43:5

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

43:6

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

44

Toro 1-643339

DECAL-ROUTING, BELT

$

$

Not available

45

Toro 103-2757

MUFFLER
(Superseded to 105-1679)

$601.99

$

Usually ships in 3-6 days

0

46

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

47

Toro 324-2

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

48

Toro 9266934

SCREW

$9.49

$

In Stock, Qty 7

0

49

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

50

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+
