74258 (Z 288 E) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230999999) (2003) DECK AND WHEEL GAGE ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

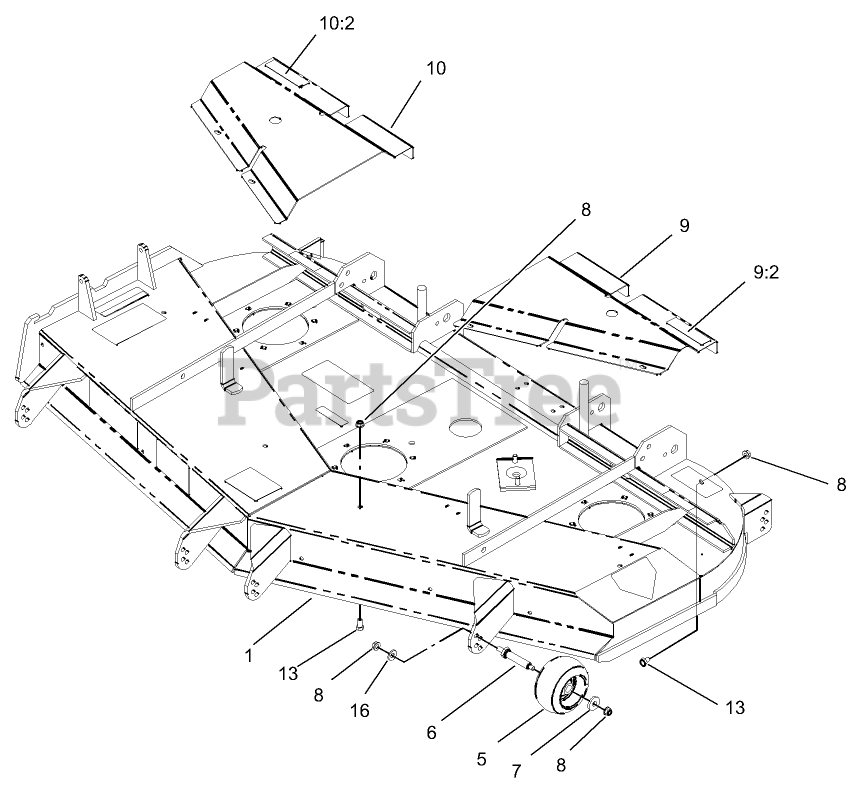

DECK AND WHEEL GAGE ASSEMBLY Parts Diagram

  • Title
1

Toro 106-5864

Deck ASM

$

$

Not available

2

Toro 3230-18

SCREW-CARR

Note: Not illustrated

$5.49

$

In Stock, Qty 5

0

5

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

6

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 5

0

7

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

8

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Toro 98-5955

LH COVER ASM

$

$

Not available

9:2

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

10

Toro 98-5956

RH COVER ASM

$

$

Not available

10:2

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

13

Toro 323-2

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

16

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0
