74256 (Z 588 E) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000109 - 260999999) (2006) IGNITION AND ELECTRICAL ASSEMBLY KOHLER CH745-0012 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

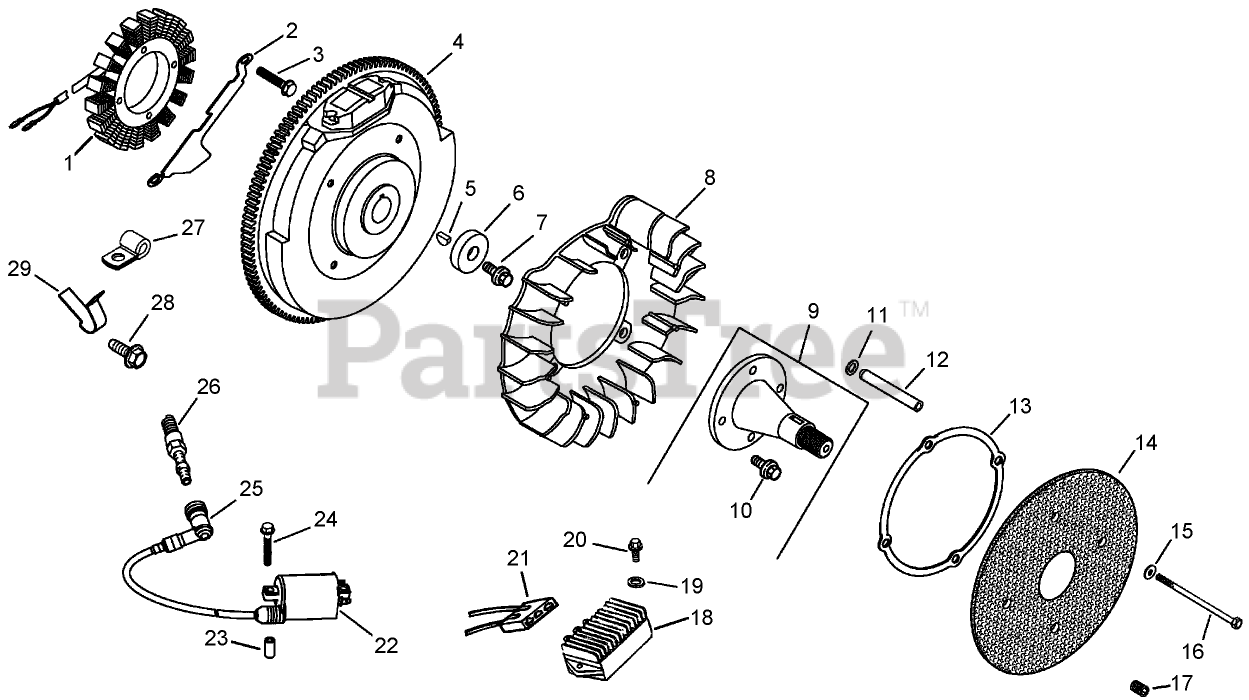

IGNITION AND ELECTRICAL ASSEMBLY KOHLER CH745-0012 Parts Diagram

  • Title

1

Kohler 28 085 02-S

Stator Kit (Includes 3, 21)

Note: Obtain parts from www.kohlerplus.com

$194.99

$

In Stock, only 1 left!

0

2

Kohler 24 126 139-S

Bracket-Wire, Stator

Note: Obtain parts from www.kohlerplus.com

$15.99

$

Usually ships in 2-5 days

0

3

Kohler 25 086 29-S

Screw-Tapping

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

4

Kohler 24 025 30-S

Flywheel
(Superseded to 24 025 23-S)

Note: Obtain parts from www.kohlerplus.com

$283.99

$

Usually ships in 2-5 days

0

5

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 6

0

6

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

7

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 12

0

8

Kohler 24 157 04-S

Fan

Note: Obtain parts from www.kohlerplus.com

$79.99

$

Usually ships in 2-5 days

0

9

Kohler 24 755 08-S

Front Drive Shaft Kit (Includes 10)

Note: Obtain parts from www.kohlerplus.com

$174.99

$

Usually ships in 2-5 days

0

10

Kohler M-839025-S

Screw-HF (M8x1.25x25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 24 468 11-S

Washer-Spring (10MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 24 112 14-S

Spacer

Note: Obtain parts from www.kohlerplus.com

$18.99

$

Usually ships in 2-5 days

0

13

Kohler 24 141 06-S

Ring-Support
(Superseded to 25 141 08-S)

Note: Obtain parts from www.kohlerplus.com

$5.49

$

Usually ships in 2-5 days

0

14

Kohler 24 162 22-S

Screen-Grass
(Superseded to 24 162 38-S)

Note: Obtain parts from www.kohlerplus.com

$24.99

$

In Stock, only 1 left!

0

15

Kohler X-25-53-S

WASHER-FLAT (1/4)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

16

Kohler M-603100-S

Screw-HH (M6x1.0x100)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 4 left!

0

17

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 25 403 08-S

Rectifier-regulator
(Superseded to 25 403 48-S)

Note: Obtain parts from www.kohlerplus.com

$68.99

$

In Stock, Qty 20+

0

19

Kohler X-25-92-S

WASHER-FLAT (.188)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

20

Kohler 24 086 18-S

SCREW-PHL HD (11-16X.88)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

Note: Obtain parts from www.kohlerplus.com

$24.99

$

In Stock, only 1 left!

0

22

Kohler 24 519 02-S

Coil-Ignition

Note: Obtain parts from www.kohlerplus.com

$180.99

$

In Stock, only 1 left!

0

23

Kohler 24 112 16-S

Spacer

Note: Obtain parts from www.kohlerplus.com

$29.99

$

Usually ships in 2-5 days

0

24

Kohler 24 086 48-S

Screw-Tapping

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

25

Kohler 24 131 02-S

Spark Plug Boot ASM

Note: Obtain parts from www.kohlerplus.com

$57.99

$

Usually ships in 2-5 days

0

26

Kohler 25 132 12-S

SPARK PLUG (PRO SERIES)

Note: Obtain parts from www.kohlerplus.com

$20.99

$

Usually ships in 2-5 days

0

27

Kohler 12 154 01-S

CLAMP-INSULATED

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

28

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

29

Kohler 25 237 06-S

Clamp-Hose
(Superseded to 25 237 35-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Not illustrated

$2.49

$

In Stock, Qty 7

0

Kohler 24 126 137-S

Bracket-Strap, Ground
(Superseded to 24 518 12-S)

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 126 137-S

Bracket-Strap, Ground
(Superseded to 24 518 12-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

Kohler 25 468 07-S

WASHER-FLAT (.22)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 468 07-S

WASHER-FLAT (.22)

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 452 01-S

Terminal

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 1 left!

0

Kohler 25 452 01-S

Terminal

Note: Not illustrated

$5.49

$

In Stock, only 1 left!

0

Kohler 24 518 12-S

Lead-Black (6in - 18 gauge - insulated grip barrel eyelet terminals)

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 518 12-S

Lead-Black (6in - 18 gauge - insulated grip barrel eyelet terminals)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

Kohler 12 454 03-S

Tie-Wire

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days

0

Kohler 12 454 03-S

Tie-Wire

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0
