74256 (Z 588 E) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) AIR INTAKE/FILTRATION ASSEMBLY KOHLER CH745-0003 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

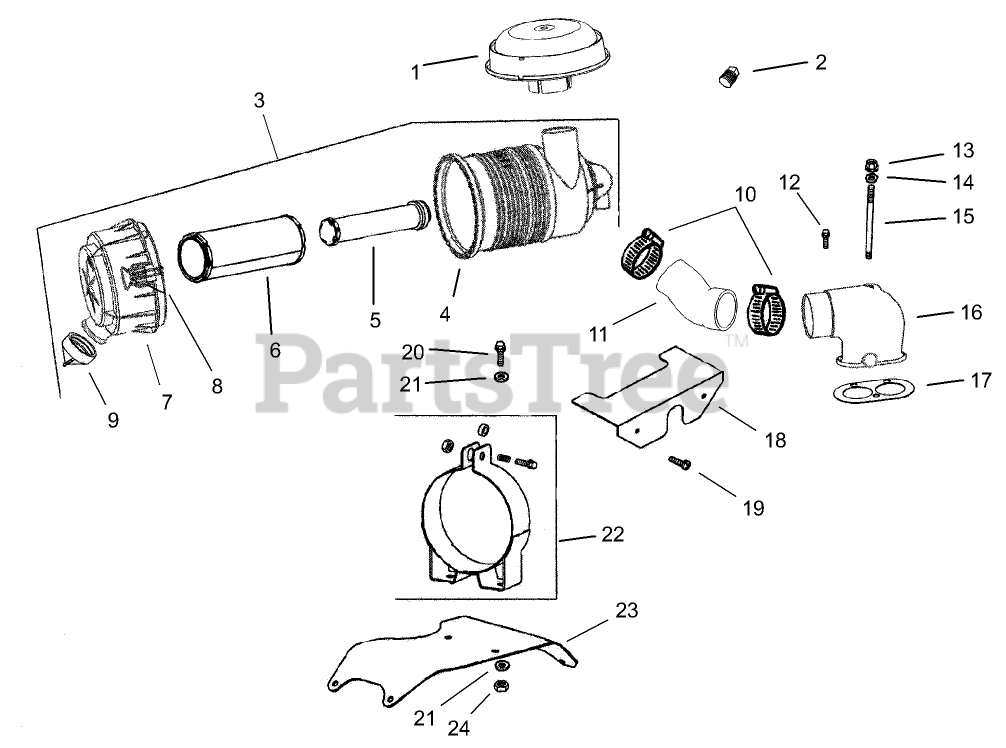

AIR INTAKE/FILTRATION ASSEMBLY KOHLER CH745-0003 Parts Diagram

  • Title

1

Kohler 25 126 02-S

Air Cleaner Bracket ASM
(Superseded to 24 126 191-S)

Note: Obtain parts from www.kohlerplus.com

$60.99

$

Usually ships in 2-5 days

0

2

Kohler 25 139 20-S

Plug-Pipe

Note: Obtain parts from www.kohlerplus.com

$8.49

$

Usually ships in 2-5 days

0

3

Kohler 25 048 07-S

Cleaner assembly, heavy-duty air (Includes 4-9)
(Superseded to 25 048 17-S)

Note: Obtain parts from www.kohlerplus.com

$142.99

$

In Stock, only 1 left!

0

4

Kohler 25 081 01-S

Housing-Air Cleaner, Heavy Duty

Note: Obtain parts from www.kohlerplus.com

$140.99

$

In Stock, only 1 left!

0

5

Kohler 25 083 04-S

Element-Air Filter, Safety

Note: Obtain parts from www.kohlerplus.com

$31.99

$

In Stock, Qty 20+

0

6

Kohler 25 083 01-S

Element-Air Filter, Primary

Note: Obtain parts from www.kohlerplus.com

$31.99

$

In Stock, Qty 20+

0

7

Kohler 25 096 06-S

Cover assembly, heavy-duty air (Includes 8,9)

Note: Obtain parts from www.kohlerplus.com

$83.99

$

In Stock, only 1 left!

0

8

Kohler 25 154 02-S

Clip-Mounting
(Superseded to 25 154 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 12

0

9

Kohler 24 462 07-S

Valve-Ejector, Dust

Note: Obtain parts from www.kohlerplus.com

$21.99

$

In Stock, only 2 left!

0

10

Kohler 25 237 07-S

Clamp-Hose
(Superseded to 25 237 21-S)

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 2 left!

0

11

Kohler 24 326 32-S

Hose-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$14.99

$

Usually ships in 2-5 days

0

12

Kohler M-644025-S

Screw-HSH

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

13

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 11

0

14

Kohler 25 468 01-S

Washer-Copper

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

15

Kohler M-629122-S

STUD-CARBURETOR (M6X1.0X122)

Note: Obtain parts from www.kohlerplus.com

$5.99

$

Usually ships in 2-5 days

0

16

Kohler 24 029 28-S

Adapter-Intake, Air

Note: Obtain parts from www.kohlerplus.com

$181.99

$

Usually ships in 2-5 days

0

17

Kohler 24 041 36-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$5.49

$

Usually ships in 2-5 days

0

18

Kohler 24 314 28-S

Shield-Debris

Note: Obtain parts from www.kohlerplus.com

$368.99

$

Usually ships in 2-5 days

0

19

Kohler 24 086 06-S

SCREW-PPH (11-16X3/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

20

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

21

Kohler X-25-73-S

Washer-Flat (1/4)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

22

Kohler 25 126 02-S

Air Cleaner Bracket ASM
(Superseded to 24 126 191-S)

Note: Obtain parts from www.kohlerplus.com

$60.99

$

Usually ships in 2-5 days

0

23

Kohler 24 126 98-S

Bracket, Air Cleaner
(Superseded to 24 126 142-S)

Note: Obtain parts from www.kohlerplus.com

$19.99

$

Usually ships in 2-5 days

0

24

Kohler M-647060-S

Nut-Lock (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

Kohler 24 113 14-S

Decal-Maintenance,Engine

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 24 113 14-S

Decal-Maintenance,Engine

Note: Not illustrated

$

$

Not available
