74256 (Z 588 E) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) ELECTRICAL ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

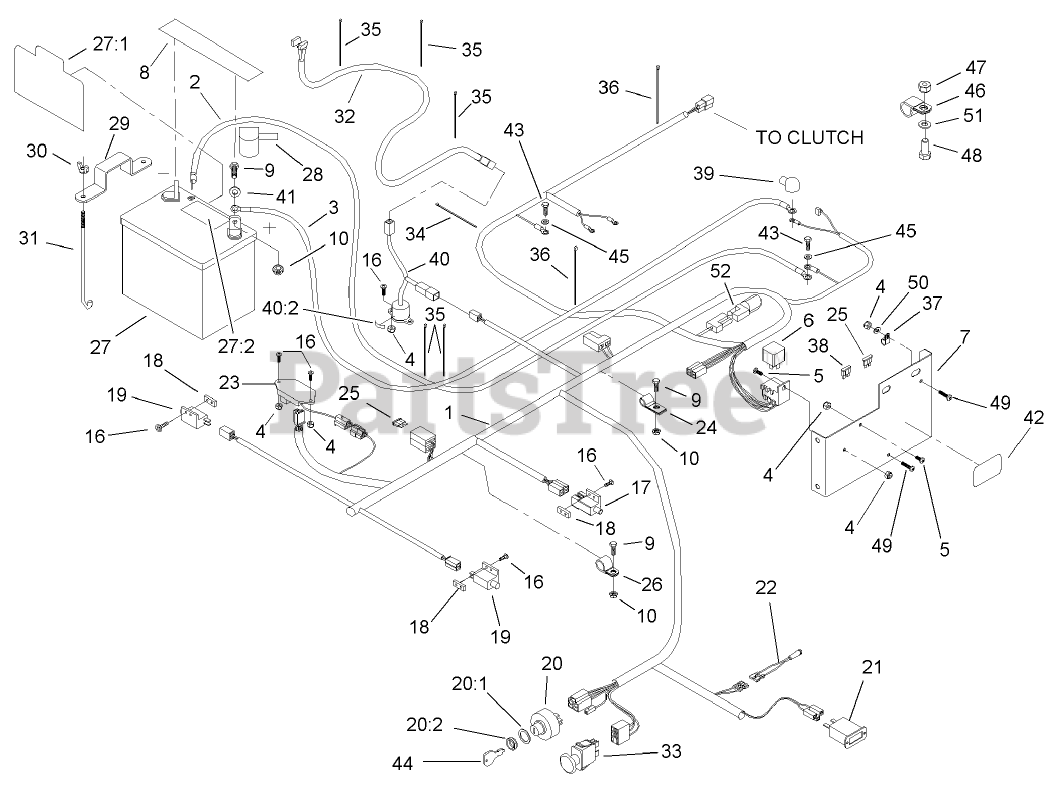

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 106-7495

Harness-Wire

$

$

Not available

2

Toro 1-633307

WIRE-GROUND

$45.99

$

In Stock, only 3 left!

0

3

Toro 1-523279

WIRE-BATTERY, POSITIVE
(Superseded to 109-7608)

$44.99

$

Usually ships in 3-6 days

0

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

6

Toro 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

7

Toro 103-2549-03

PANEL-MOUNT, FUSE

$

$

Not available

8

Toro 105-3646

Decal-Warning, Battery

$

$

Not available

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

16

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

17

Toro 1-633111

SWITCH

$21.99

$

In Stock, Qty 20+

0

18

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

19

Toro 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

20

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$39.99

$

In Stock, Qty 20+

0

20:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

20:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

21

Toro 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

22

Toro 1-643267

INDICATOR-LED, RED

$25.99

$

In Stock, only 1 left!

0

23

Toro 100-6186

MODULE-DELAY, SEAT

$44.99

$

In Stock, Qty 6

0

24

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

25

Toro 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

26

Toro 103-0373

Clip

$

$

Not available

27

Toro 105-1692

BATTERY

$

$

Not available

27:1

Toro 104-4163

Decal-Battery

$

$

Currently unavailable

27:2

Toro 104-4164

Decal-Battery

$

$

Currently unavailable

28

Toro 1-543391

INSULATOR-BATTERY
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

29

Toro 1-633652-03

STRAP-HOLDDOWN

$21.99

$

In Stock, only 3 left!

0

30

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

31

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

32

Toro 103-1227

HARNESS-WIRING, SEAT

$23.99

$

Usually ships in 3-6 days

0

33

Toro 1-633673

SWITCH-DELTA
(Superseded to 103-5221)

$58.99

$

In Stock, Qty 20+

0

34

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

35

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

36

Toro 1-643115

TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

37

Toro 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

38

Toro 1-816002

FUSE-BLADE TYPE, 10 AMP

$

$

Not available

39

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

40

Toro 1-644427

TILT SWITCH ASM
(Superseded to 112-8349)

$

$

Not available

40:2

Toro 1-643401

DECAL-SWITCH, MERCURY

$5.99

$

Usually ships in 3-6 days

0

41

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 103-2750

DECAL-RELAY / FUSE

$

$

Not available

43

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

44

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

45

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

46

Toro 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

47

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

48

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

49

Toro 32105-20

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

50

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

52

Toro 103-3895

DIODE

$64.99

$

In Stock, only 4 left!

0

99

Toro 1-816003

FUSE-BLADE TYPE, 30 AMP

Note: Not illustrated

$5.99

$

Usually ships in 3-6 days

0
