74255 (Z 588 E) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) FUEL SYSTEM ASSEMBLY KOHLER CH745-0007 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

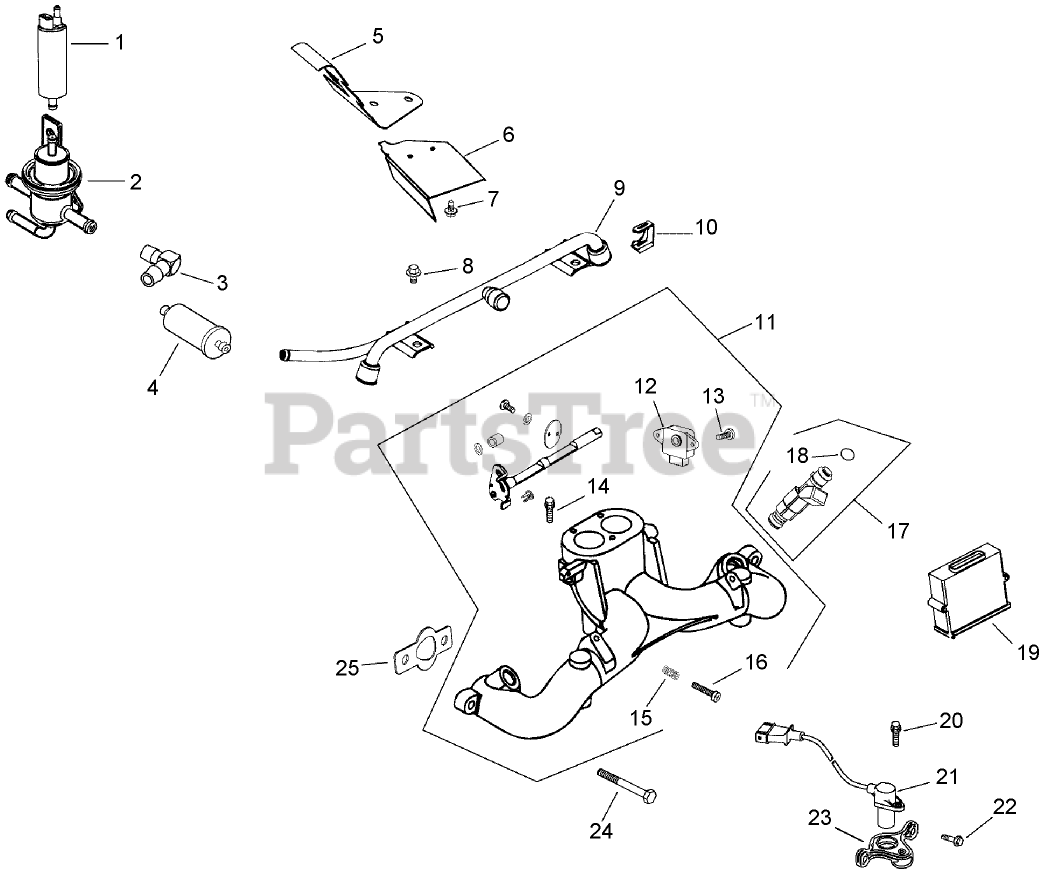

FUEL SYSTEM ASSEMBLY KOHLER CH745-0007 Parts Diagram

  • Title

1

Kohler 24 393 20-S

Fuel Pump ASM (Includes 24 050 06-S)
(Superseded to 24 393 52-S)

Note: Obtain parts from www.kohlerplus.com

$358.99

$

Usually ships in 2-5 days

0

2

Kohler 24 403 17-S

Fuel Pressure Regulator ASM

Note: Obtain parts from www.kohlerplus.com

$214.99

$

Usually ships in 2-5 days

0

3

Kohler 25 155 38-S

Connector-Hose

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, only 3 left!

0

4

Kohler 24 050 03-S

Filter-Fuel

Note: Obtain parts from www.kohlerplus.com

$75.99

$

In Stock, only 2 left!

0

5

Kohler 24 063 37-S

Baffle-Valley

Note: Obtain parts from www.kohlerplus.com

$52.99

$

Usually ships in 2-5 days

0

6

Kohler 24 265 08-S

Deflector-Air
(Superseded to 24 265 11-S)

Note: Obtain parts from www.kohlerplus.com

$68.99

$

Usually ships in 2-5 days

0

7

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

8

Kohler M-639010-S

Screw-HF (M6x1.0x10)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 24 399 04-S

Rail-Fuel

Note: Obtain parts from www.kohlerplus.com

$153.99

$

Usually ships in 2-5 days

0

10

Kohler 24 154 05-S

Clip-Injector, Fuel

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

11

Kohler 24 164 84-S

Intake Manifold ASM (Includes 18-22 and 25 454 03-S)

Note: Obtain parts from www.kohlerplus.com

$587.99

$

Usually ships in 2-5 days

0

12

Kohler 24 418 06-S

Sensor-Position,Throttle

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

13

Kohler M-442012-S

Screw-Head, Pan

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

14

Kohler 24 086 49-S

Screw-Set

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 12 089 11-S

Spring-Control, Speed

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

16

Kohler M-442025-S

Screw-HH

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 24 331 02-S

Injector-Fuel (Includes 24)

Note: Obtain parts from www.kohlerplus.com

$205.99

$

In Stock, only 2 left!

0

18

Kohler 24 153 26-S

O Ring-Injector, Fuel

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

19

Kohler 24 584 29-S

Control Unit-Electronic (ECU)
(Superseded to 24 584 58-S)

Note: Obtain parts from www.kohlerplus.com

$737.99

$

Usually ships in 2-5 days

0

20

Kohler 24 086 42-S

Screw-HF
(Superseded to 25 086 404-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

21

Kohler 24 418 03-S

Sensor-Speed, Engine

Note: Obtain parts from www.kohlerplus.com

$200.99

$

Usually ships in 2-5 days

0

22

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

23

Kohler 24 126 69-S

Bracket-Sensor,Speed

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

24

Kohler M-639025-S

Screw-HF
(Superseded to 25 086 294-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

25

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 9

0

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 15

0

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Not illustrated

$2.49

$

In Stock, Qty 15

0

Kohler X-25-79-S

Washer-Plain

Note: Not illustrated

$3.99

$

In Stock, only 2 left!

0

Kohler X-25-79-S

Washer-Plain

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 2 left!

0

Kohler 24 050 06-S

Filter-Strainer, Fuel

Note: Obtain parts from www.kohlerplus.com

$39.99

$

Usually ships in 2-5 days

0

Kohler 24 050 06-S

Filter-Strainer, Fuel

Note: Not illustrated

$39.99

$

Usually ships in 2-5 days

0

Kohler X-22-9-S

Washer-Lock

Note: Not illustrated

$3.99

$

In Stock, only 1 left!

0

Kohler X-22-9-S

Washer-Lock

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

Kohler 24 176 122-S

Harness-Wiring (Includes 24 404 02-S)

Note: Obtain parts from www.kohlerplus.com

$686.99

$

Usually ships in 2-5 days

0

Kohler 24 176 122-S

Harness-Wiring (Includes 24 404 02-S)

Note: Not illustrated

$686.99

$

Usually ships in 2-5 days

0

Kohler 25 454 04-S

Tie-Wire

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days

0

Kohler 25 454 04-S

Tie-Wire

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

Kohler 24 113 78-S

Decal-Warning, Fuel

Note: Obtain parts from www.kohlerplus.com

$29.99

$

Usually ships in 2-5 days

0

Kohler 24 113 78-S

Decal-Warning, Fuel

Note: Not illustrated

$29.99

$

Usually ships in 2-5 days

0
