74255 (Z 588 E) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CH745-0007 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

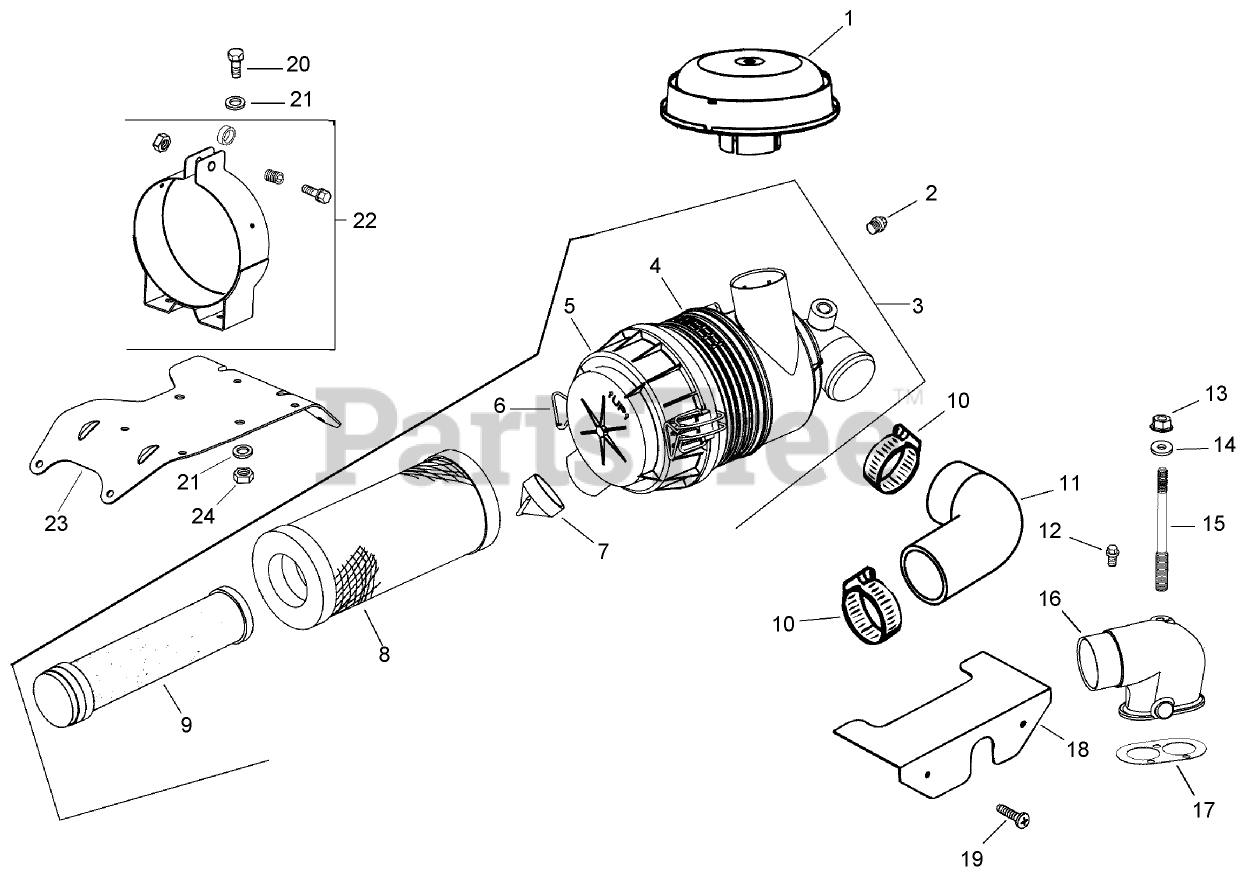

AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CH745-0007 Parts Diagram

  • Title

1

Kohler 25 324 02-S

Hood-Cleaner, Air
(Superseded to 25 324 04-S)

Note: Obtain parts from www.kohlerplus.com

$49.99

$

In Stock, only 1 left!

0

2

Kohler 25 139 20-S

Plug-Pipe

Note: Obtain parts from www.kohlerplus.com

$8.99

$

Usually ships in 2-5 days

0

3

Kohler 25 048 07-S

Heavy Duty Air Cleaner ASM (Includes 4-9)
(Superseded to 25 048 17-S)

Note: Obtain parts from www.kohlerplus.com

$143.99

$

Usually ships in 2-5 days

0

4

Kohler 25 081 01-S

Housing-Air Cleaner, Heavy Duty

Note: Obtain parts from www.kohlerplus.com

$140.99

$

In Stock, only 1 left!

0

5

Kohler 25 096 06-S

Cover ASM (Includes 6, 7)

Note: Obtain parts from www.kohlerplus.com

$87.99

$

In Stock, only 1 left!

0

6

Kohler 25 154 05-S

Clip
(Superseded to 62 154 07-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 12

0

7

Kohler 24 462 07-S

Valve-Ejector, Dust

Note: Obtain parts from www.kohlerplus.com

$21.99

$

In Stock, only 3 left!

0

8

Kohler 25 083 01-S

Element-Air Filter, Primary

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 20+

0

9

Kohler 25 083 04-S

Element-Air Filter, Safety

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 20+

0

10

Kohler 25 237 07-S

Clamp-Hose
(Superseded to 25 237 21-S)

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 1 left!

0

11

Kohler 24 326 32-S

Hose-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$14.99

$

Usually ships in 2-5 days

0

12

Kohler M-644025-S

Screw-HSH

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

13

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 6

0

14

Kohler 25 468 01-S

Washer-Copper

Note: Obtain parts from www.kohlerplus.com

$5.49

$

Usually ships in 2-5 days

0

15

Kohler M-629122-S

STUD-CARBURETOR (M6X1.0X122)

Note: Obtain parts from www.kohlerplus.com

$5.99

$

Usually ships in 2-5 days

0

16

Kohler 24 029 60-S

Adapter-Air Cleaner, Remote
(Superseded to 24 029 89-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

17

Kohler 24 041 36-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$5.99

$

Usually ships in 2-5 days

0

18

Kohler 24 314 28-S

Shield-Debris

Note: Obtain parts from www.kohlerplus.com

$382.99

$

Usually ships in 2-5 days

0

19

Kohler 24 086 06-S

SCREW-PPH (11-16X3/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

20

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

21

Kohler X-25-73-S

Washer-Flat (1/4)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

22

Kohler 25 126 02-S

Air Cleaner Bracket ASM
(Superseded to 24 126 191-S)

Note: Obtain parts from www.kohlerplus.com

$62.99

$

Usually ships in 2-5 days

0

23

Kohler 24 126 142-S

Bracket-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$19.99

$

Usually ships in 2-5 days

0

24

Kohler M-647060-S

Nut-Lock (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Not illustrated

$

$

Not available
