74254 (Z 589) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) SEAT AND ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

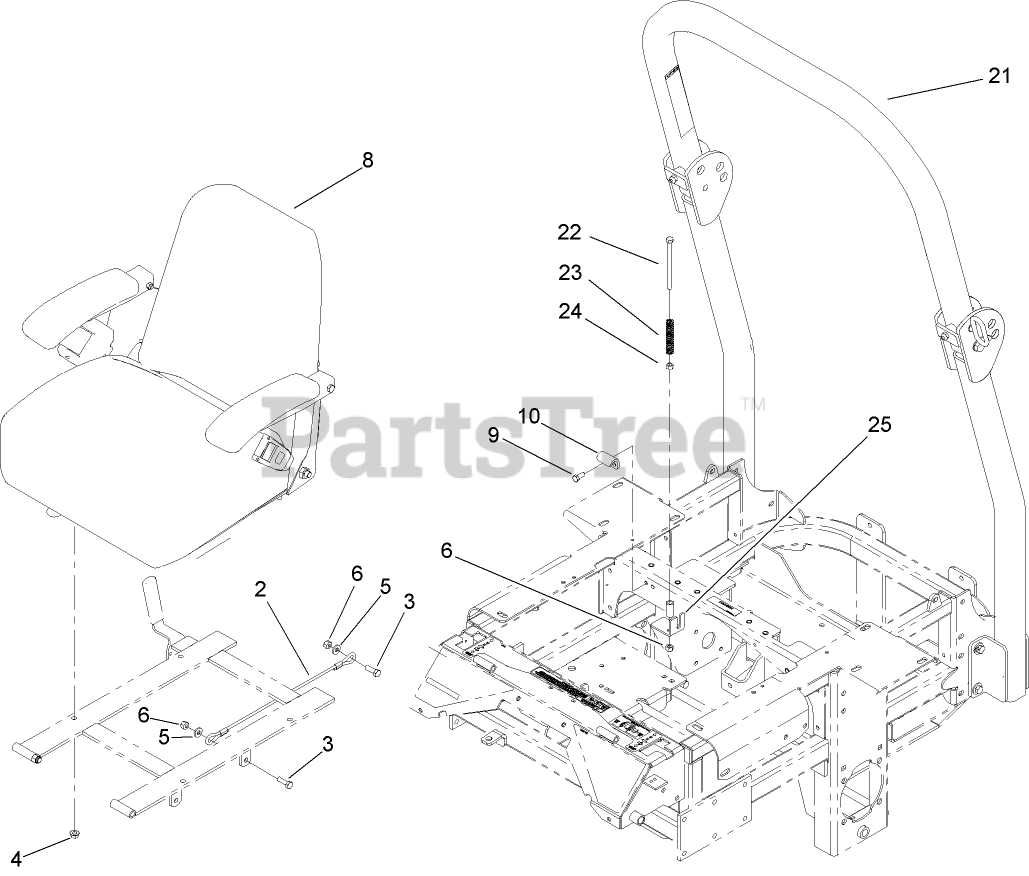

SEAT AND ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram

  • Title

2

Toro 98-4371

CABLE-SEAT

$37.99

$

Usually ships in 3-6 days

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 110-0446

SEAT ASM

$1312.99

$

Usually ships in 3-6 days

0

9

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 107-3058

Catch-Latch, Seat

$6.99

$

Usually ships in 3-6 days

0

21

Toro 110-0877

ROPS KIT

$997.99

$

Usually ships in 3-6 days

0

22

Toro 322-38

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

23

Toro 1-523415

SPRING-SWITCH, SEAT

$33.99

$

In Stock, only 1 left!

0

24

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

25

Toro 114-1500-03

PLATE-SWITCH, SEAT

$

$

Not available
