74254 (Z 589) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) FUEL TANK, LINES AND FILTER ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

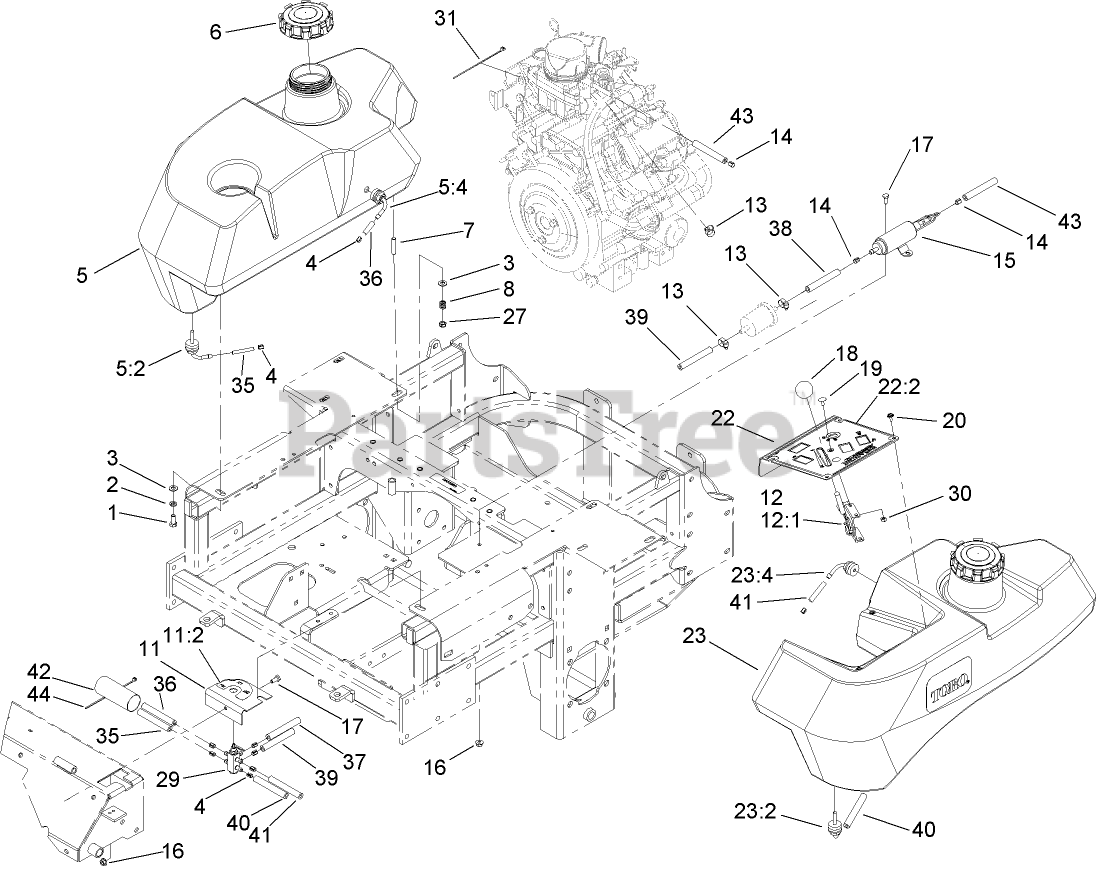

FUEL TANK, LINES AND FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

2

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 1-643293

CLAMP-HOSE, FUEL

$6.49

$

In Stock, Qty 6

0

5

Toro 110-0440

TANK-FUEL, RH

$

$

Not available

5:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

5:4

Toro 103-2615

Fitting-Fuel, Bulkhead

$41.99

$

In Stock, only 1 left!

0

6

Toro 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, only 1 left!

0

7

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

8

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

11

Toro 110-6247

FUEL VALVE BRACKET ASM

$

$

Not available

11:2

Toro 107-2114

DECAL-VALVE, FUEL

$34.99

$

Usually ships in 3-6 days

0

12

Toro 110-6234

THROTTLE CONTROL ASM

$108.99

$

Usually ships in 3-6 days

0

12:1

Toro 112-2334

LEVER-THROTTLE

$82.99

$

Usually ships in 3-6 days

0

13

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

14

Toro 1-643277

CLAMP-HOSE, FUEL

$4.99

$

In Stock, only 3 left!

0

15

Toro 109-0928

PUMP-FUEL

$

$

Not available

16

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

17

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 7

0

19

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

20

Toro 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 11

0

22

Toro 110-6233

CONTROL PANEL ASM

$106.99

$

Usually ships in 3-6 days

0

22:2

Toro 110-5772

DECAL-CONTROL PANEL

$

$

Not available

23

Toro 110-0441

TANK-FUEL, LH

$

$

Not available

23:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

23:4

Toro 103-2615

Fitting-Fuel, Bulkhead

$41.99

$

In Stock, only 1 left!

0

27

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

29

Toro 1-643234

VALVE-FUEL, DUAL FLOW

$201.99

$

In Stock, only 1 left!

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

35

Toro 109-0307

HOSE-FUEL

$21.99

$

In Stock, only 1 left!

0

36

Toro 110-5702

HOSE-FUEL

$24.99

$

Usually ships in 3-6 days

0

37

Toro 109-0281

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

0

38

Toro 114-4416

HOSE-FUEL

$

$

Not available

39

Toro 109-0295

HOSE-FUEL

$3.49

$

Usually ships in 3-6 days

0

40

Toro 109-0305

HOSE-FUEL
(Superseded to 1-603954)

$8.99

$

In Stock, only 1 left!

0

41

Toro 109-0299

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

42

Toro 114-4406

SLEEVE-FABRIC

$

$

Not available

43

Toro 114-4404

HOSE-FUEL

$

$

Not available

44

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
