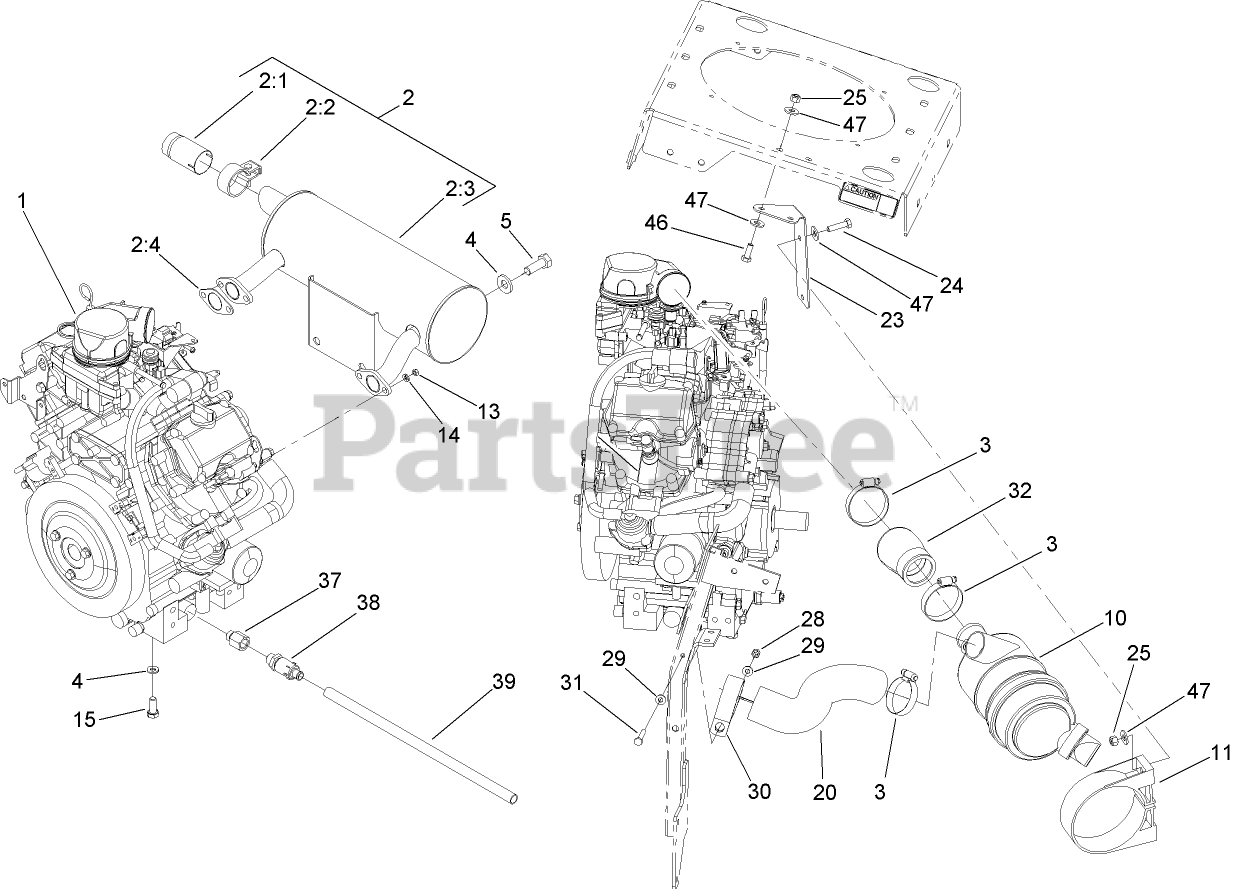

74254 (Z 589) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) ENGINE, MUFFLER AND AIR CLEANER ASSEMBLY Parts Diagram
72" Z Master Zero-Turn Mower, Side-Discharge Deck
ENGINE, MUFFLER AND AIR CLEANER ASSEMBLY Parts Diagram
Note: Not serviced separately
$
$
Not available
Note: Obtain parts from www.kawpowerepc.com
$
$
Not available
Toro 105-1678
$
$
Not available
Toro 103-1511
$
$
Not available
Toro 103-1512
$
$
Not available
Toro 103-2759
$338.99
$
Toro 103-1564
$
$
Not available
Toro 2412-42
$11.99
$
Toro 98-5975
$3.99
$
Toro 33115-020
$1.49
$
Toro 95-5805
$177.99
$
Toro 95-5806
$31.99
$
Toro 33013-00
$2.99
$
Toro 1-805004
$1.49
$
Toro 33115-025
$1.99
$
Toro 110-6227
$
$
Not available
Toro 110-6226-03
$
$
Not available
Toro 322-6
$4.49
$
Toro 3296-29
$2.49
$
Toro 3296-42
$0.99
$
Toro 3256-22
$0.99
$
Toro 110-6245
$15.99
$
Toro 321-10
$1.49
$
Toro 110-6222
$
$
Not available
Toro 109-0878
$26.99
$
Toro 92-6877
$43.99
$
Toro 106-7022
$9.99
$
Toro 322-4
$0.99
$
Toro 3256-3
$0.99
$
