74254 (Z 589) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) CASTER WHEEL AND FORK ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

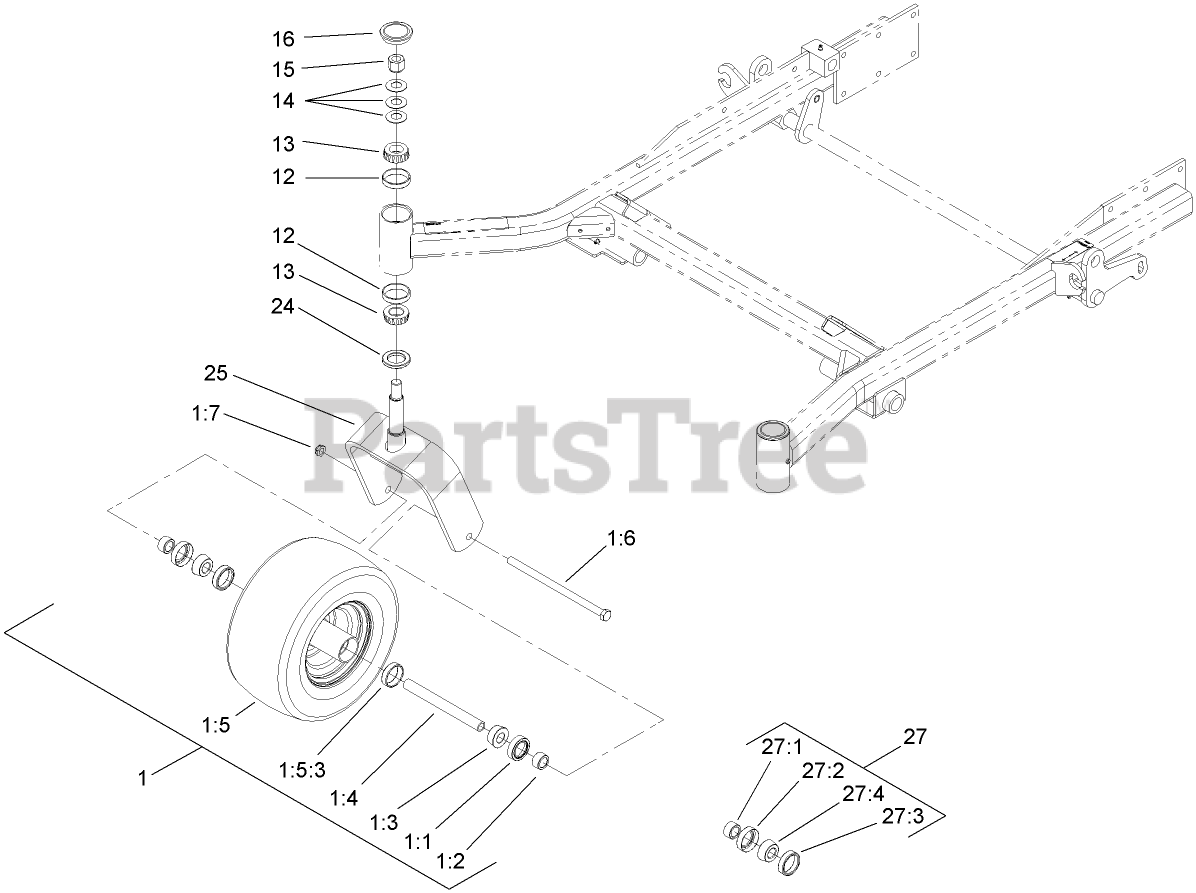

CASTER WHEEL AND FORK ASSEMBLY Parts Diagram

  • Title

1

Toro 110-5746

CASTOR WHEEL ASM

$311.99

$

In Stock, only 3 left!

0

1:1

Toro 1-633580

SEAL-BEARING

$9.49

$

In Stock, only 3 left!

0

1:2

Toro 1-633581

SPACER-BEARING

$4.99

$

In Stock, Qty 16

0

1:3

Toro 1-633585

BEARING-CONE, TAPER

$22.99

$

In Stock, Qty 20+

0

1:4

Toro 1-633959

SPACER-CASTER, FRONT

$19.99

$

In Stock, only 4 left!

0

1:5

Toro 110-5744

WHEEL AND TIRE ASM (SEMI-PNEUMATIC)

$223.99

$

Usually ships in 3-6 days

0

1:5:3

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, only 4 left!

0

1:6

Toro 325-24

SCREW-HH

$16.99

$

In Stock, only 2 left!

0

1:7

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

12

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0

13

Toro 254-94

BEARING-CONE, TAPERED

$9.99

$

In Stock, Qty 20+

0

14

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

15

Toro 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, Qty 20+

0

16

Toro 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

24

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

25

Toro 103-1474-01

CASTER-FORK
(Superseded to 116-8888)

$197.99

$

In Stock, Qty 20+

0

27

Toro 110-8837

CASTER WHEEL BEARING KIT

$46.99

$

In Stock, only 2 left!

0

27:1

Toro 1-633581

SPACER-BEARING

$4.99

$

In Stock, Qty 16

0

27:2

Toro 1-633580

SEAL-BEARING

$9.49

$

In Stock, only 3 left!

0

27:3

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, only 4 left!

0

27:4

Toro 1-633585

BEARING-CONE, TAPER

$22.99

$

In Stock, Qty 20+

0
