74254 (Z 589) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) 90 DEGREE GEARBOX ASSEMBLY NO. 110-5771 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

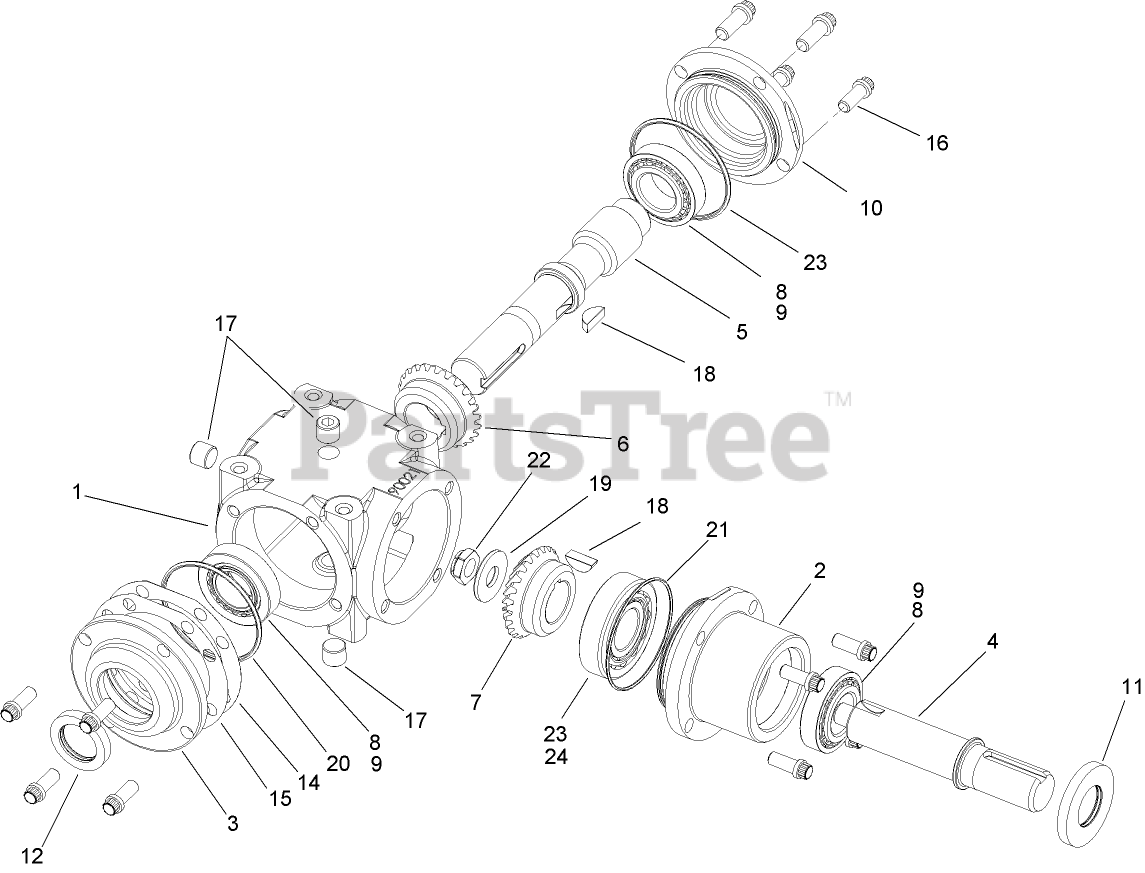

90 DEGREE GEARBOX ASSEMBLY NO. 110-5771 Parts Diagram

  • Title

1

Toro 114-4413

CASE

$

$

Currently unavailable

2

Toro 110-0853

HOUSING-PINION

$673.99

$

Usually ships in 3-6 days

0

3

Toro 114-4414

CAP, END, OPEN

$

$

Not available

4

Toro 110-0844

SHAFT-PINION

$797.99

$

Usually ships in 3-6 days

0

5

Toro 114-4415

SHAFT, CROSS

$

$

Not available

6

Toro 110-0847

GEAR-SHAFT, CROSS

$715.99

$

Usually ships in 3-6 days

0

7

Toro 110-0846

GEAR-PINION

$715.99

$

Usually ships in 3-6 days

0

8

Toro 110-0848

BEARING-CUP

$54.99

$

Usually ships in 3-6 days

0

9

Toro 110-0849

BEARING-CONE

$54.99

$

Usually ships in 3-6 days

0

10

Toro 100-4574

CAP-END, CLOSED

$270.99

$

Usually ships in 3-6 days

0

11

Toro 100-4575

SEAL

$57.99

$

In Stock, only 1 left!

0

12

Toro 110-0850

SEAL-SHAFT, CROSS
(Superseded to 253-118)

$19.99

$

In Stock, Qty 20+

0

14

Toro 100-4592

SHIM-BLUE, .005IN

$12.99

$

Usually ships in 3-6 days

0

15

Toro 100-4593

SHIM-GREEN, .003IN

$11.99

$

In Stock, only 1 left!

0

16

Toro 100-4578

SCREW

$14.99

$

Usually ships in 3-6 days

0

17

Toro 100-4579

PLUG

$31.99

$

Usually ships in 3-6 days

0

18

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

19

Toro 100-4581

WASHER

$49.99

$

Usually ships in 3-6 days

0

20

Toro 100-4582

O-RING

$8.49

$

Usually ships in 3-6 days

0

21

Toro 110-0851

O-RING

$19.99

$

Usually ships in 3-6 days

0

22

Toro 110-0852

NUT LOCK

$28.99

$

Usually ships in 3-6 days

0

23

Toro 100-5817

BEARING-CUP

$51.99

$

Usually ships in 3-6 days

0

24

Toro 100-5816

BEARING-CONE

$116.99

$

Usually ships in 3-6 days

0
