74254 (Z 580) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) FUEL SYSTEM AND THROTTLE CONTROL ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

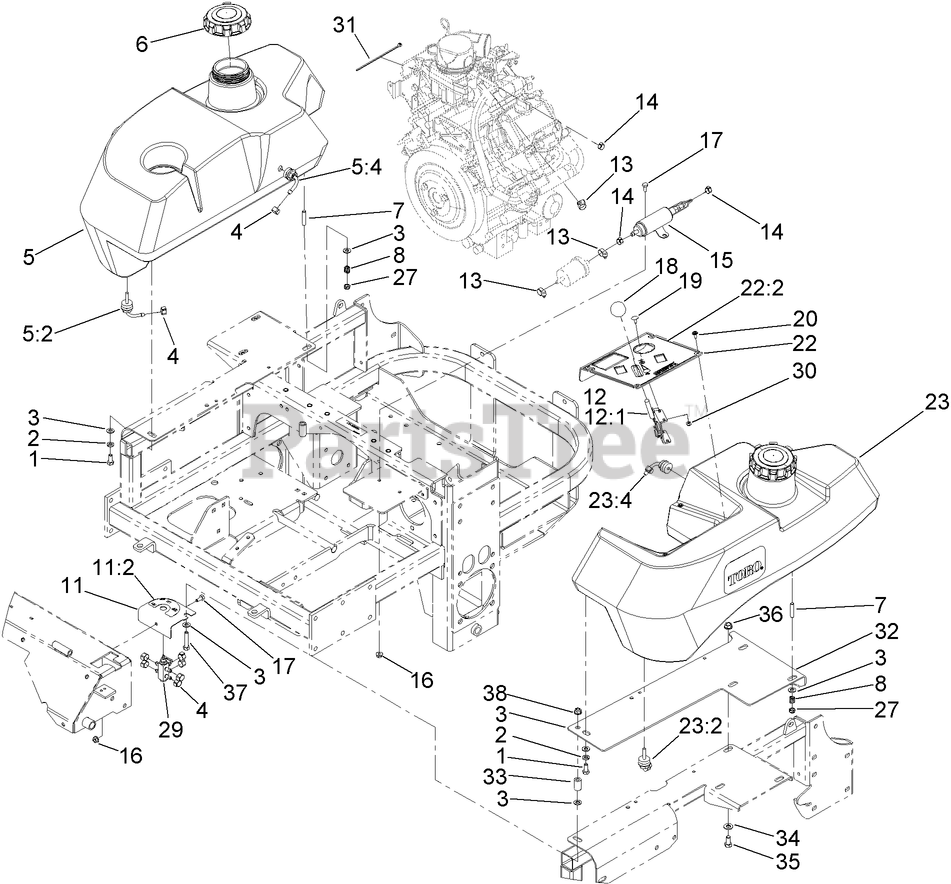

FUEL SYSTEM AND THROTTLE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 1-643293

CLAMP-HOSE, FUEL

$6.49

$

In Stock, Qty 6

0

5

Toro 110-0440

TANK-FUEL, RH

$

$

Not available

5:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, only 3 left!

0

5:4

Toro 103-2615

Fitting-Fuel, Bulkhead

$39.99

$

In Stock, only 1 left!

0

6

Toro 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, only 1 left!

0

7

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

8

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

11

Toro 110-6247

FUEL VALVE BRACKET ASM

$

$

Not available

11:2

Toro 107-2114

DECAL-VALVE, FUEL

$30.99

$

Usually ships in 3-6 days

0

12

Toro 110-6234

THROTTLE CONTROL ASM

$90.99

$

Usually ships in 3-6 days

0

12:1

Toro 112-2334

LEVER-THROTTLE

$76.99

$

Usually ships in 3-6 days

0

13

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

14

Toro 1-643277

CLAMP-HOSE, FUEL

$4.99

$

In Stock, only 3 left!

0

15

Toro 109-0928

PUMP-FUEL

$

$

Not available

16

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

17

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 8

0

19

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

20

Toro 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 11

0

22

Toro 117-0920

CONTROL PANEL ASM

$

$

Not available

22:2

Toro 117-0919

DECA -PANEL, CONTROL

$

$

Not available

23

Toro 110-0441

TANK-FUEL, LH

$

$

Not available

23:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, only 3 left!

0

23:4

Toro 103-2615

Fitting-Fuel, Bulkhead

$39.99

$

In Stock, only 1 left!

0

27

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

29

Toro 1-643234

VALVE-FUEL, DUAL FLOW

$217.99

$

In Stock, only 1 left!

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

32

Toro 114-1545-03

BRACKET-FUEL TANK, LH

$107.99

$

Usually ships in 3-6 days

0

33

Toro 94-7564

SPACER

$9.49

$

Usually ships in 3-6 days

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

36

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

37

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

38

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+
