74254 (Z 580) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) ENGINE, MUFFLER AND AIR CLEANER ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

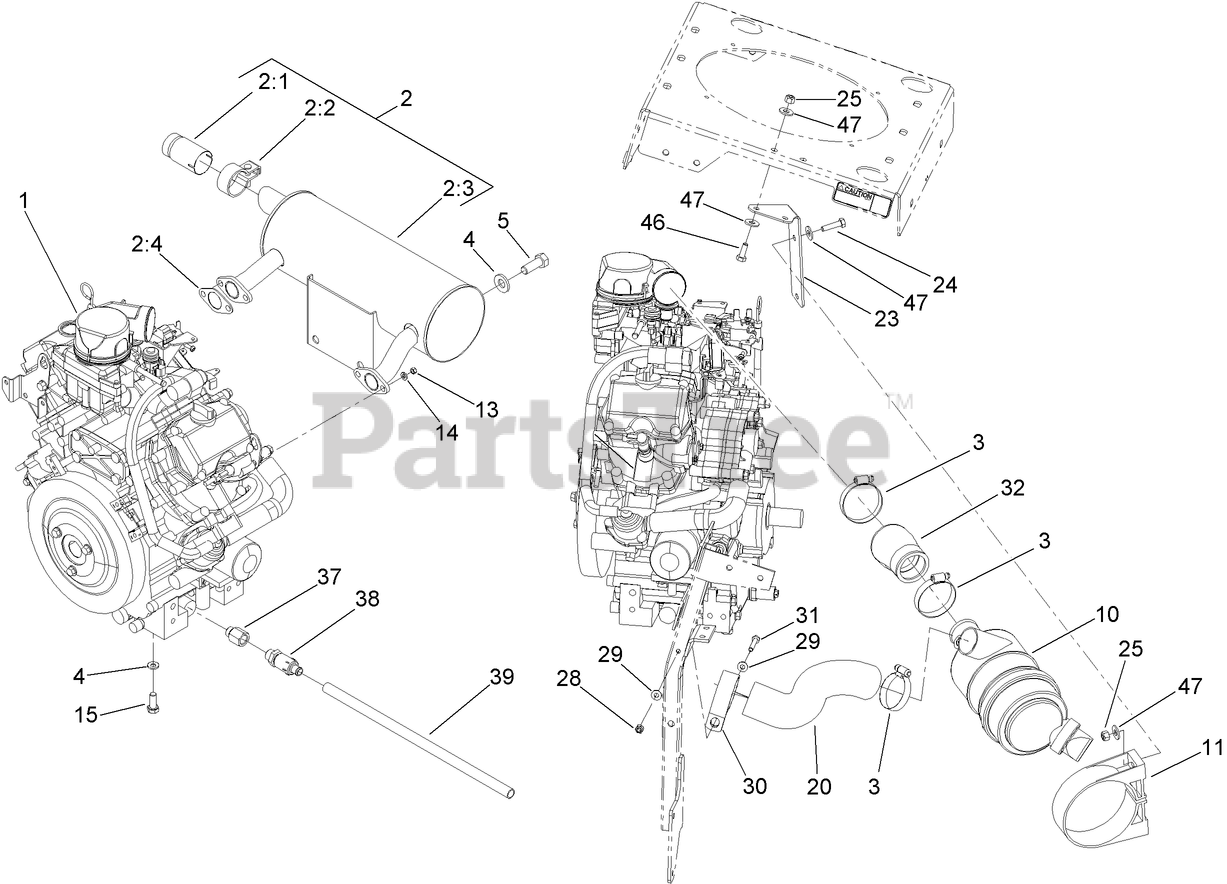

ENGINE, MUFFLER AND AIR CLEANER ASSEMBLY Parts Diagram

  • Title
1

ENGINE-KAWASAKI, FD791D-AS

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FD791D-AS

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Toro 105-1678

MUFFLER KIT (W/ ARRESTER)

$

$

Not available

2:1

Toro 103-1511

ARRESTOR-SPARK

$

$

Not available

2:2

Toro 103-1512

CLAMP-MUFFLER

$31.99

$

Usually ships in 3-6 days

0

2:3

Toro 103-2759

MUFFLER

$319.99

$

Usually ships in 3-6 days

0

2:4

Toro 103-1564

GASKET-EXHAUST

$

$

Not available

3

Toro 2412-42

CLAMP-HOSE

$10.99

$

Usually ships in 3-6 days

0

4

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

10

Toro 95-5805

AIR CLEANER ASM

$167.99

$

In Stock, only 1 left!

0

11

Toro 95-5806

BRACKET-MOUNTING

$29.99

$

Usually ships in 3-6 days

0

13

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

20

Toro 110-6227

HOSE-AIR CLEANER, INLET

$

$

Not available

23

Toro 110-6226-03

BRACKET-MOUNT, AC

$

$

Not available

24

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 110-6245

CLAMP-R

$14.99

$

Usually ships in 3-6 days

0

31

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 110-6222

HOSE-AIR CLEANER, OUTLET

$

$

Not available

37

Toro 109-0878

ADAPTER

$25.99

$

Usually ships in 3-6 days

0

38

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 2 left!

0

39

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

In Stock, only 4 left!

0

46

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

47

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
