74254 (Z 580) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) ENGINE HOUSING ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

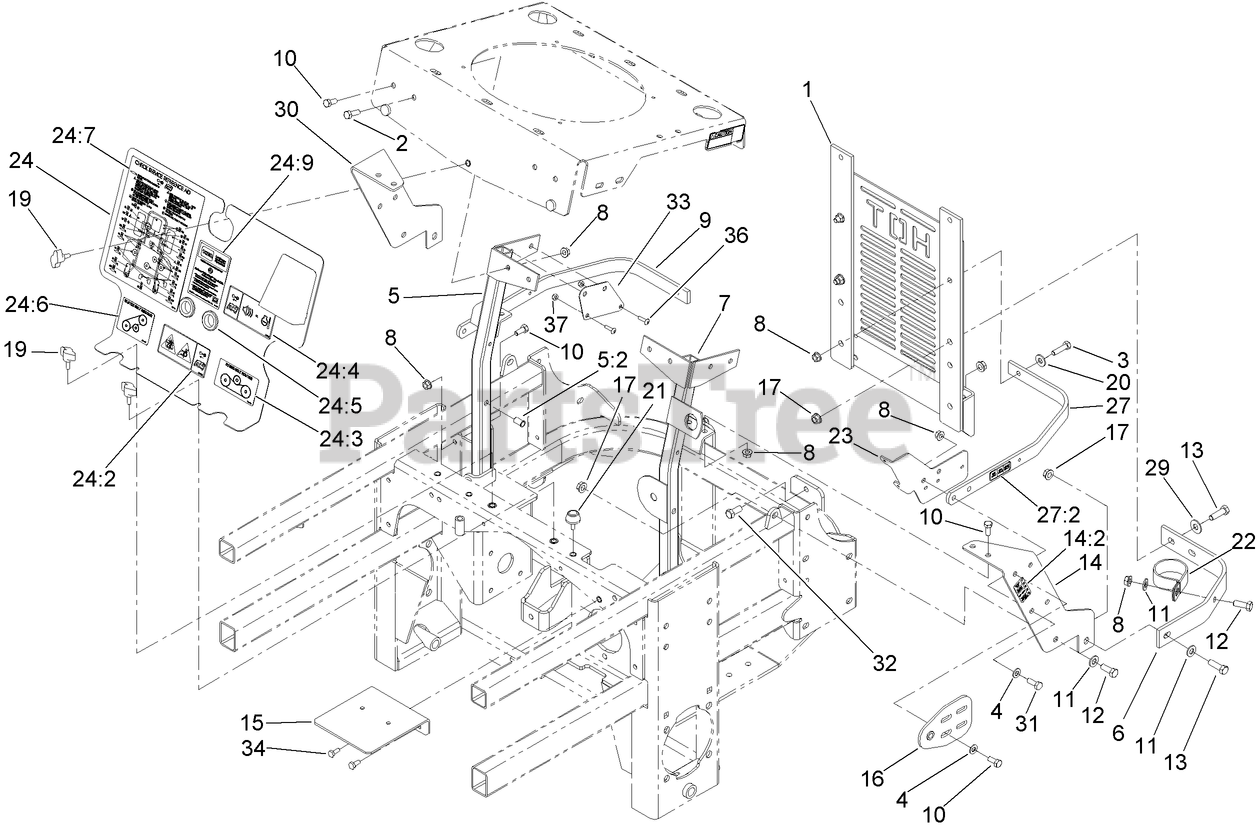

ENGINE HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 110-5779-03

REAR GUARD ASM

$

$

Not available

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 110-5793

RH RADIATOR BRACE ASM

$231.99

$

Usually ships in 3-6 days

0

5:2

Toro 32148-11

INSERT-THREADED

$2.49

$

Usually ships in 3-6 days

0

6

Toro 110-6235-03

STRAP-GUARD

$54.99

$

Usually ships in 3-6 days

0

7

Toro 110-6213-03

LH RADIATOR BRACE ASM

$

$

Not available

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 1-633897-03

RIB-TOP

$

$

Not available

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

12

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 117-7840

BRACKET-SUPPORT, LH

$

$

Not available

14:2

Toro 117-7839

DECAL-FUSE

$

$

Not available

15

Toro 110-6230-03

BRACKET-MOUNT, PUMP

$

$

Not available

16

Toro 108-5345-03

PLATE-PIVOT, HOOD

$56.99

$

Usually ships in 3-6 days

0

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Toro 98-8332

KNOB

$5.49

$

In Stock, Qty 15

0

20

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, only 3 left!

0

22

Toro 110-6245

CLAMP-R

$14.99

$

Usually ships in 3-6 days

0

23

Toro 117-7830-03

BRACKET-RELAY/FUSE

$

$

Not available

24

Toro 110-6219

FRONT SHIELD ASM

$

$

Not available

24:2

Toro 110-3853

DECAL-DANGER, ROTATING DEVICES

$11.99

$

Usually ships in 3-6 days

0

24:3

Toro 110-6220

DECAL-ROUTING, HYDRO BELT

$

$

Not available

24:4

Toro 110-3852

DECAL- WARNING, BUZZER

$7.99

$

Usually ships in 3-6 days

0

24:5

Toro 100-3815

GROMMET-RUBBER

$9.99

$

In Stock, only 2 left!

0

24:6

Toro 110-6221

DECAL-ROUTING, CLUTCH BELT

$11.99

$

Usually ships in 3-6 days

0

24:7

Toro 110-3851

DECAL-CHECK, SERVICE

$17.99

$

Usually ships in 3-6 days

0

24:9

Toro 104-2449

DECAL-COOLANT

$10.99

$

Usually ships in 3-6 days

0

27

Toro 117-7841

STRAP-TOP W/DECAL

$

$

Not available

27:2

Toro 117-7838

DECAL-RELAY

$21.99

$

Usually ships in 3-6 days

0

29

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Toro 108-5339-03

BRACKET-SUPPORT, RH

$41.99

$

Usually ships in 3-6 days

0

31

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

33

Toro 110-5783-03

PLATE-ECM MOUNT

$

$

Not available

34

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

37

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
