74254 (Z 580) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) ELECTRICAL ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

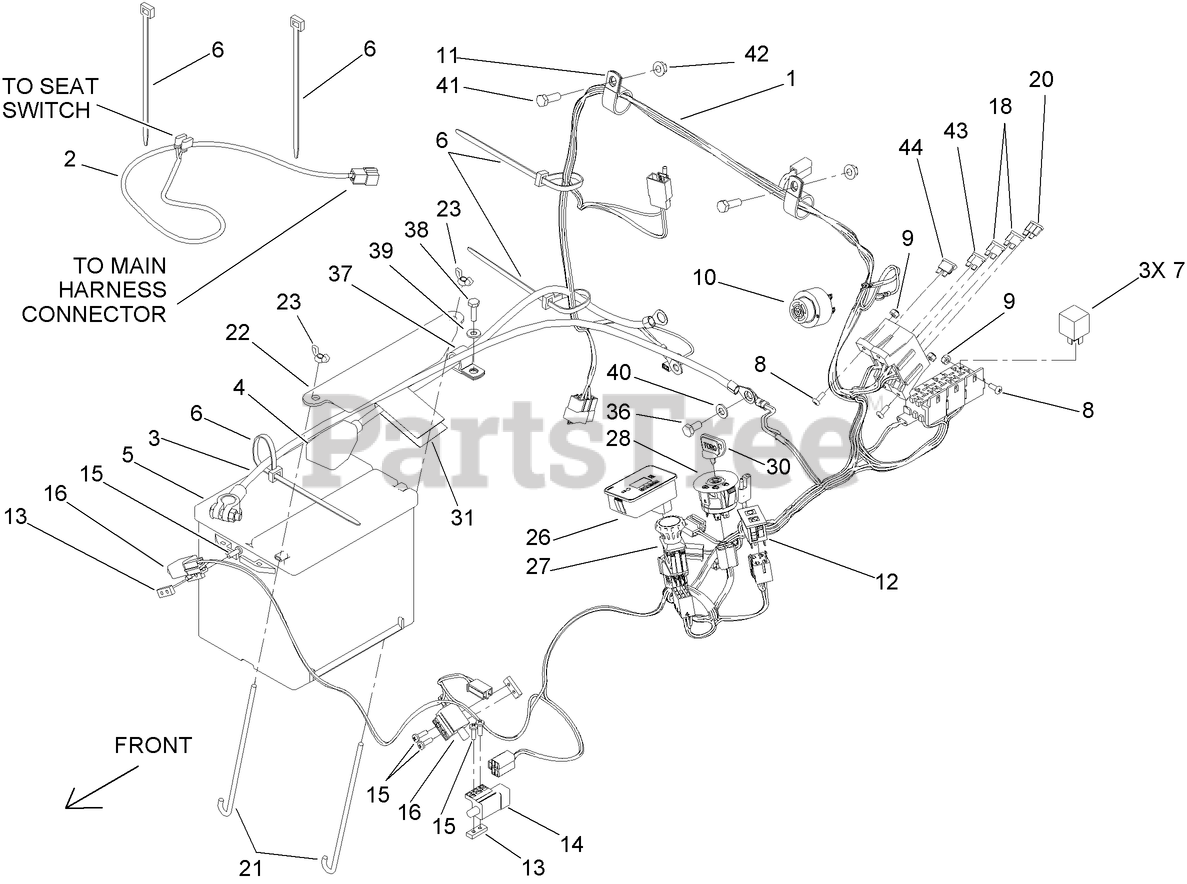

ELECTRICAL ASSEMBLY Parts Diagram

  • Title
1

Toro 117-3854

HARNESS-WIRE

$

$

Not available

2

Toro 103-1227

HARNESS-WIRING, SEAT

$23.99

$

Usually ships in 3-6 days

0

3

Toro 110-5786

CABLE-BATTERY, NEGATIVE

$

$

Not available

4

Toro 110-5775

CABLE-BATTERY, POSITIVE

$

$

Not available

5

Toro 106-5187

BATTERY-DRY

$215.99

$

Usually ships in 3-6 days

0

6

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

7

$23.99

$

In Stock, Qty 20+

0

8

$1.49

$

In Stock, Qty 13

0

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 103-0205

ALARM-TONE, DUAL

$67.99

$

In Stock, only 2 left!

0

11

Toro 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

12

Toro 110-5739

LAMP-WARNING

$

$

Not available

13

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

14

Toro 1-633111

SWITCH

$21.99

$

In Stock, Qty 20+

0

15

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Toro 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

18

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

20

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 6

0

21

Toro 103-1312

Bolt-Holddown

$6.49

$

Usually ships in 3-6 days

0

22

Toro 103-1311-03

HOLDDOWN-BATTERY

$27.99

$

Usually ships in 3-6 days

0

23

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

26

Toro 112-8650

HOUR METER ASM
(Superseded to 116-5609)

$164.99

$

In Stock, only 1 left!

0

27

Toro 116-0124

SWITCH-PTO, 10 AMP
(Superseded to 135-3653)

$68.99

$

In Stock, Qty 20+

0

28

Toro 116-0050

SWITCH-IGNITION

$38.99

$

In Stock, only 2 left!

0

30

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

31

Toro 107-9309

DECAL-INSTRUCTIONS, CHARGING

$21.99

$

Usually ships in 3-6 days

0

36

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

37

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

38

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

42

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

43

Toro 103-1368

FUSE-40 AMP

$5.49

$

Usually ships in 3-6 days

0

44

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0
