74254 (Z 580) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) COOLING SYSTEM ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

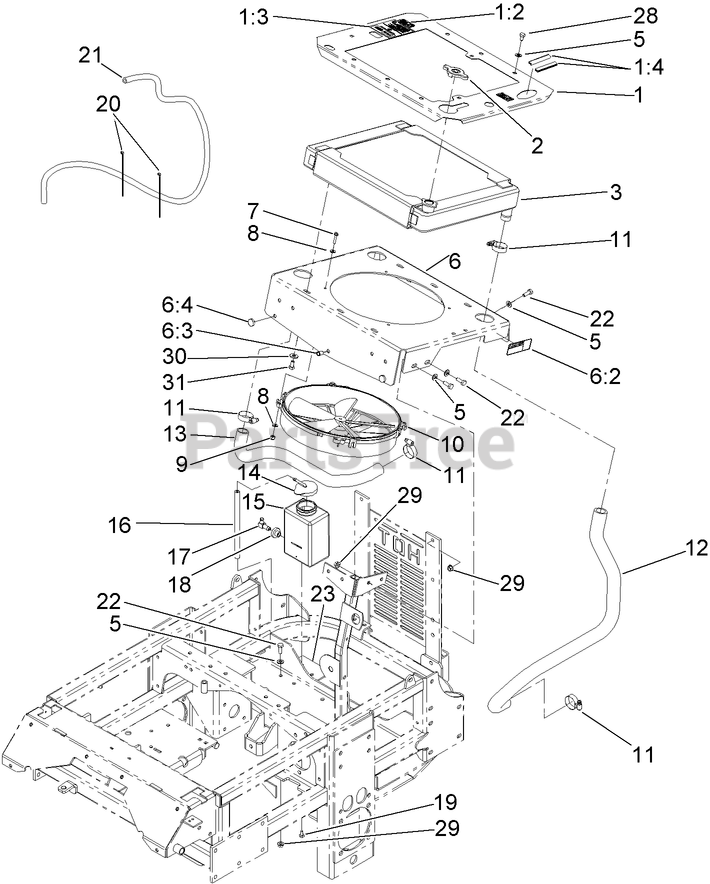

COOLING SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 110-6208

PLATE-RADIATOR, TOP

$169.99

$

Usually ships in 3-6 days

0

1:2

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

1:3

Toro 104-2449

DECAL-COOLANT

$10.99

$

Usually ships in 3-6 days

0

1:4

Toro 105-7699

STRIP-SEAL

$9.49

$

In Stock, Qty 20+

0

2

Toro 1-643161

CAP-RADIATOR

$84.99

$

In Stock, only 3 left!

0

3

Toro 103-1046

RADIATOR-MOUNT

$820.99

$

In Stock, only 1 left!

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 110-6206

PLATE-RADIATOR, BOTTOM

$

$

Not available

6:2

Toro 1-643253

DECAL-FAN, RADIATOR

$5.49

$

Usually ships in 3-6 days

0

6:3

Toro 32148-6

INSERT-NUT

$1.99

$

Usually ships in 3-6 days

0

6:4

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

7

Toro 1-803067

SCREW

$1.49

$

Usually ships in 3-6 days

0

8

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

9

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-633831

FAN

$581.99

$

Usually ships in 3-6 days

0

11

Toro 1-633989

CLAMP-HOSE
(Superseded to 2412-34)

$2.49

$

In Stock, only 4 left!

0

12

Toro 110-6231

HOSE-RADIATOR, OUTLET

$

$

Not available

13

Toro 103-0074

HOSE-INLET, RADIATOR

$123.99

$

Usually ships in 3-6 days

0

14

Toro 1-643164

CAP-TANK, OVERFLOW

$19.99

$

In Stock, only 1 left!

0

15

Toro 1-643163

TANK-OVERFLOW

$96.99

$

Usually ships in 3-6 days

0

16

Toro 109-0293

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

17

Toro 1-643259

FITTING-ELBOW
(Superseded to 46-6550)

$40.99

$

Usually ships in 3-6 days

0

18

Toro 1-513645

BUSHING-VALVE, FUEL
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 10

0

19

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

20

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

21

Toro 117-0921

HOSE-FUEL

$

$

Not available

22

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 117-0922-03

MOUNT-BOTTLE, PLATE

$

$

Not available

28

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

29

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 9

0
