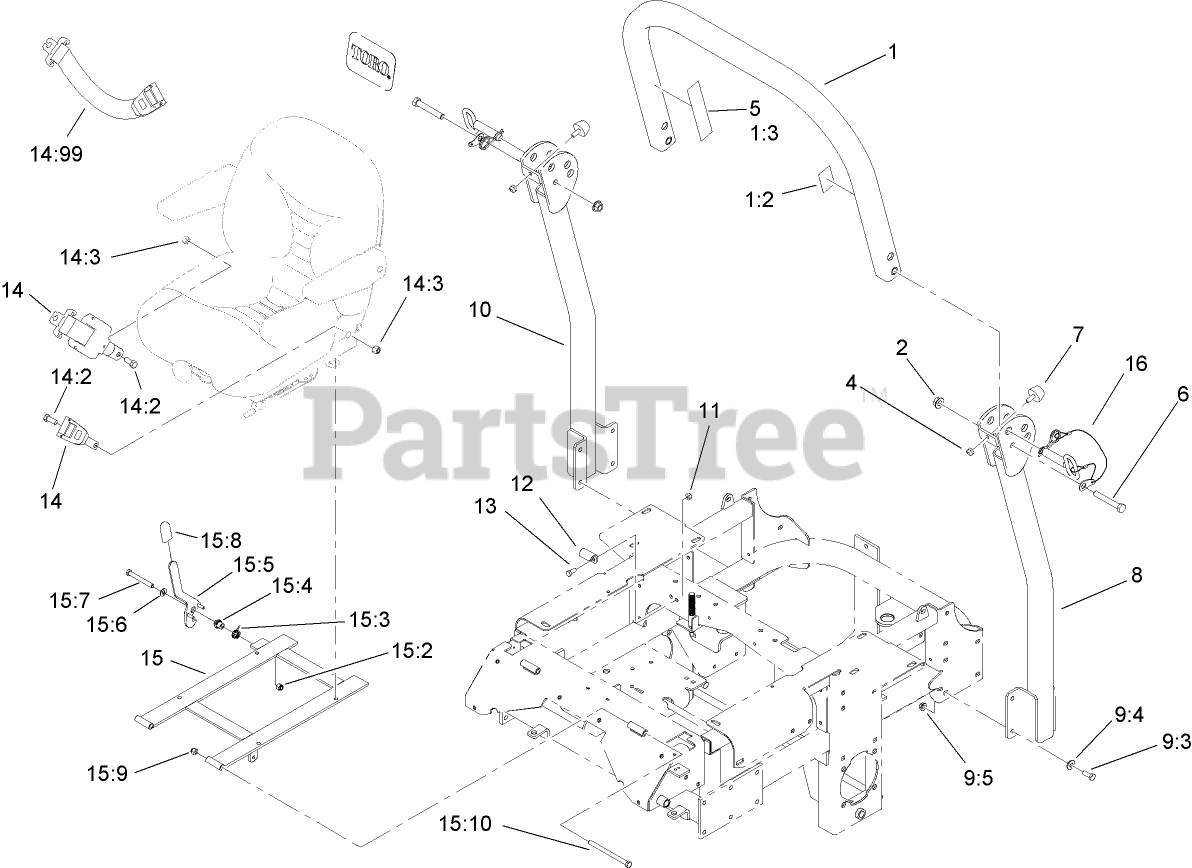

74254 CP (Z 589) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) ROLL-OVER PROTECTION SYSTEM ASSEMBLY NO. 110-0877 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

ROLL-OVER PROTECTION SYSTEM ASSEMBLY NO. 110-0877 Parts Diagram

  • Title
1

Upper Tube ASM

Note: Not serviced separately

$

$

Not available

1:2

Toro 107-2101

DECAL-ROPS

$

$

Not available

1:3

Toro 107-2102

DECAL-WARNING, FOLDING ROPS

$9.99

$

In Stock, only 1 left!

0

2

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

4

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

5

Toro 107-3069

DECAL-WARNING

$22.99

$

Usually ships in 3-6 days

0

6

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

7

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, only 3 left!

0

8

TUBE-SUPPORT, LH

Note: Not serviced separately

$

$

Not available

9:3

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9:4

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

9:5

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

BAG-BOLT, ROPS

Note: Not illustrated

$

$

Not available

10

TUBE-SUPPORT, RH

Note: Not serviced separately

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 107-3058

Catch-Latch, Seat

$6.99

$

Usually ships in 3-6 days

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

14

Toro 110-0883

RETRACTABLE SEATBELT KIT

$274.99

$

Usually ships in 3-6 days

0

14:2

Toro 3212-4

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

14:3

Toro 3296-7

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

14:99

Toro 109-6226

SEAT BELT EXTENSION KIT

$96.99

$

Usually ships in 3-6 days

0

15

Toro 110-0874

SEATFRAME ASM

$240.99

$

Usually ships in 3-6 days

0

15:2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

15:3

Toro 107-0076

SPRING-TORSION

$13.99

$

Usually ships in 3-6 days

0

15:4

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

15:5

Toro 107-3083

LATCH ASM

$27.99

$

Usually ships in 3-6 days

0

15:6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

15:7

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

15:8

Toro 103-4434

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

15:9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

15:10

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

16

Toro 103-4553

PIN-FOLD, ROPS

$79.99

$

In Stock, only 2 left!

0
