74254 CP (Z 589) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) FUEL TANK AND VALVE ASSEMBLY KAWASAKI FD791D-AS07 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

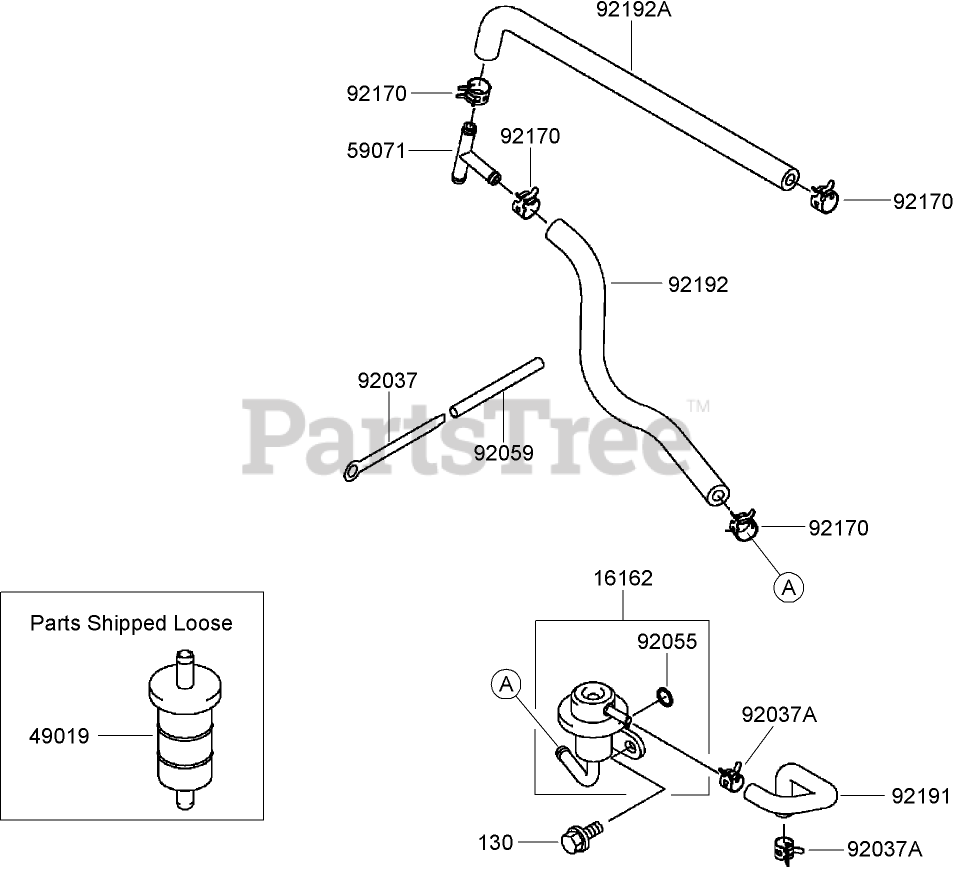

FUEL TANK AND VALVE ASSEMBLY KAWASAKI FD791D-AS07 Parts Diagram

  • Title
16162

Kawasaki 16162-2055

REGULATOR-FUEL

Note: Obtain parts from www.kawpowerepc.com

$133.99

$

Usually ships in 2-5 days

0

49019

Kawasaki 49019-1055

Filter-Fuel
(Superseded to 49019-0032)

Note: Obtain parts from www.kawpowerepc.com

$25.99

$

In Stock, Qty 20+

0

59071

Kawasaki 59071-3705

JOINT

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, only 1 left!

0

92037

Kawasaki 92037-2006

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

Usually ships in 2-5 days

0

92037A

Kawasaki 92037-2083

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 2 left!

0

92055

Kawasaki 92055-2187

O-RING, FUEL REGULATOR

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, only 1 left!

0

92059

Kawasaki 92059-2011

TUBE (5X6X75)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2009

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92191

Kawasaki 92191-2165

TUBE

Note: Obtain parts from www.kawpowerepc.com

$7.49

$

Usually ships in 2-5 days

0

92192

Kawasaki 92192-2108

TUBE (6.2X13.2X200)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92192A

Kawasaki 92192-2109

TUBE (6.2X13.2X230)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

130

Toro 130G0612

Bolt-Flanged (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
