74253 (Z 589) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) HYDRO AND GEARBOX DRIVE ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

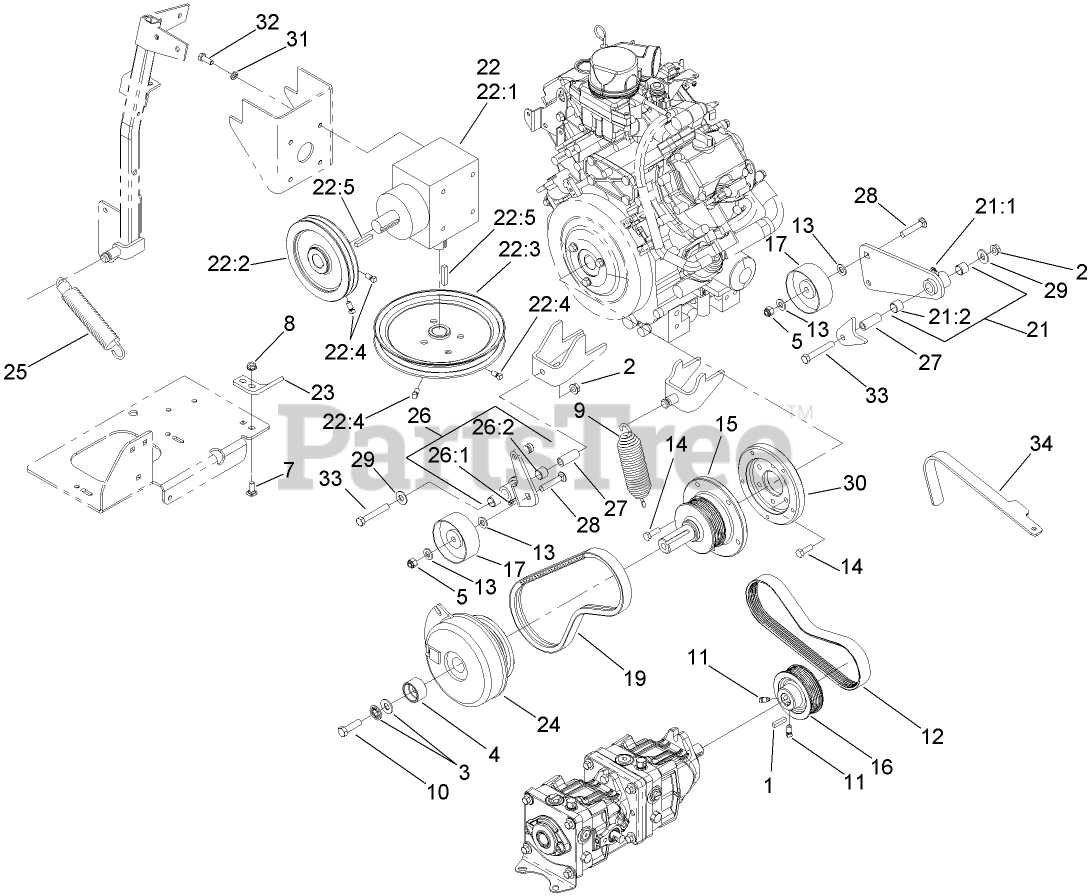

HYDRO AND GEARBOX DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-0698

KEY

$2.99

$

In Stock, only 1 left!

0

2

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

3

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

4

Toro 110-0854

RETAINER-CLUTCH

$40.99

$

Usually ships in 3-6 days

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

7

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

8

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

9

Toro 109-0148

SPRING-EXTENSION
(Superseded to 114-4430)

$47.99

$

In Stock, only 1 left!

0

10

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

11

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

12

Toro 107-9910

BELT-V

$60.99

$

Usually ships in 3-6 days

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

14

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

15

Toro 108-5975

SHAFT-STUB
(Superseded to 110-6248)

$627.99

$

Usually ships in 3-6 days

0

16

Toro 110-3864

PULLEY

$99.99

$

In Stock, only 2 left!

0

17

Toro 108-5910

PULLEY-FLAT

$107.99

$

Usually ships in 3-6 days

0

19

Toro 110-5759

BELT-V

$133.99

$

In Stock, only 4 left!

0

21

Toro 110-6216

IDLER ARM ASM

$147.99

$

Usually ships in 3-6 days

0

21:1

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

21:2

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

22

Gearbox ASM

Note: Not serviced separately

$

$

Not available

22:1

Toro 110-5771

GEARBOX-90 DEG

$2114.99

$

Usually ships in 3-6 days

0

22:2

Toro 110-3862

PULLEY

$141.99

$

Usually ships in 3-6 days

0

22:3

Toro 110-0892

PULLEY

$141.99

$

In Stock, only 1 left!

0

22:4

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

22:5

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0

23

Toro 110-6217

BRACKET-CLUTCH STOP

$31.99

$

Usually ships in 3-6 days

0

24

Toro 110-5799

CLUTCH-ELECTROMAGNETIC

$1295.99

$

Usually ships in 3-6 days

0

25

Toro 1-513308

SPRING-IDLER, DECK

$29.99

$

Usually ships in 3-6 days

0

26

Toro 110-6215

IDLER ARM ASM

$147.99

$

Usually ships in 3-6 days

0

26:1

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

26:2

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

27

Toro 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

28

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

29

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Toro 110-4195

ADAPTER-STUB SHAFT
(Superseded to 110-6249)

$

$

Not available

31

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

34

Toro 110-0876

TOOL-ALIGNMENT, PULLEY

$91.99

$

Usually ships in 3-6 days

0
