74253 CP (Z 580) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FD791D-AS07 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

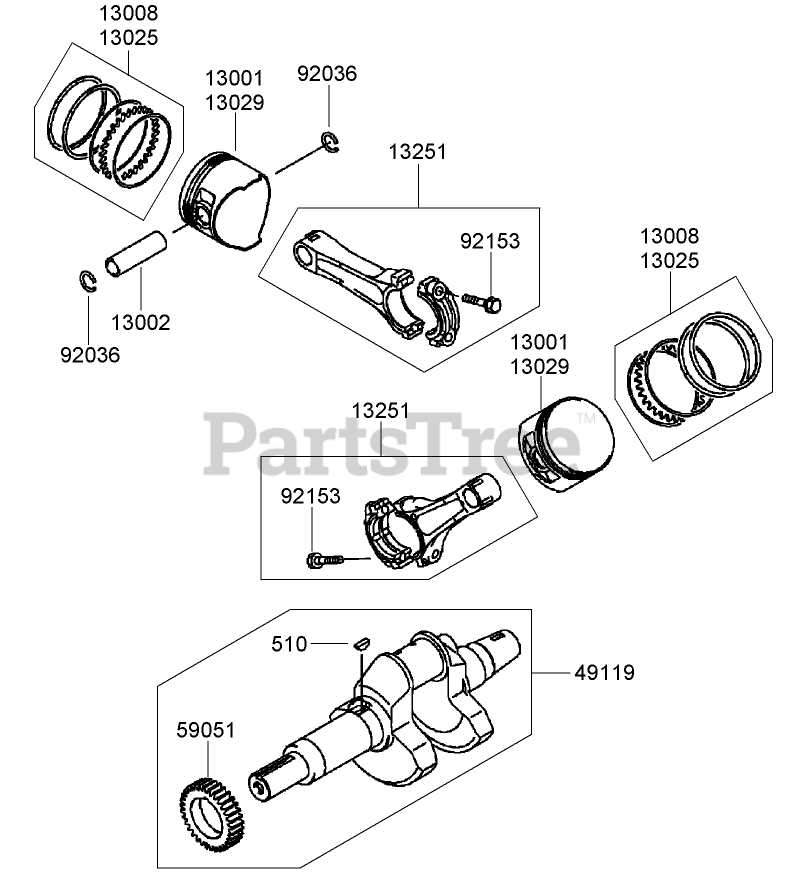

PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FD791D-AS07 Parts Diagram

  • Title

13001

Kawasaki 13001-2150

PISTON-ENGINE
(Superseded to 13001-2188)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

13002

Kawasaki 13002-2069

Pin-Piston

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, only 1 left!

0

13008

Kawasaki 13008-6007

Ring-Set, Piston

Note: Obtain parts from www.kawpowerepc.com

$37.99

$

In Stock, Qty 6

0

13025

Kawasaki 13025-2074

PISTON RING SET (0.50)

Note: Obtain parts from www.kawpowerepc.com

$44.99

$

Usually ships in 2-5 days

0

13029

Kawasaki 13029-2124

PISTON-ENGINE (0.50)
(Superseded to 13029-2133)

Note: Obtain parts from www.kawpowerepc.com

$59.99

$

Usually ships in 2-5 days

0

13251

Kawasaki 13251-2058

Connecting Rod ASM
(Superseded to 13251-2084)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

49119

Kawasaki 49119-2228

CRANKSHAFT ASM
(Superseded to 99916-2191)

Note: Obtain parts from www.kawpowerepc.com

$648.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2358

Gear-Spur (33T)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92036

Kawasaki 92036-008

Ring-Snap

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-2054

BOLT (7X35.2)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

Key-Woodruff

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0
