74252 (Z 587 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) VALVE/CAMSHAFT ASSEMBLY KAWASAKI FD750D-AS03 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

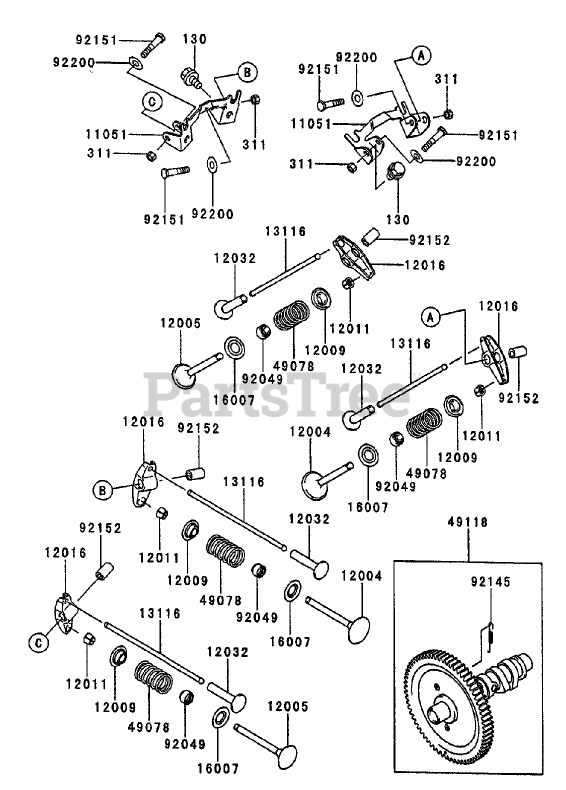

VALVE/CAMSHAFT ASSEMBLY KAWASAKI FD750D-AS03 Parts Diagram

  • Title
11051

Kawasaki 11051-2092

Bracket

Note: Obtain Parts From Kawasaki

$9.49

$

Usually ships in 2-5 days

0

12004

Kawasaki 12004-2113

Valve-Intake

Note: Obtain Parts From Kawasaki

$31.99

$

In Stock, Qty 5

0

12005

Kawasaki 12005-2100

Valve-Exhaust

Note: Obtain Parts From Kawasaki

$41.99

$

In Stock, Qty 5

0

12009

Kawasaki 12009-2060

Retainer-Spring, Valve

Note: Obtain Parts From Kawasaki

$5.99

$

In Stock, Qty 6

0

12011

Kawasaki 12011-2052

Collet

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-2063

Arm-Rocker
(Superseded to 12016-6005)

Note: Obtain Parts From Kawasaki

$12.99

$

Usually ships in 2-5 days

0

12032

Kawasaki 12032-2060

Tappet

Note: Obtain Parts From Kawasaki

$17.99

$

In Stock, only 2 left!

0

13116

Kawasaki 13116-2074

Rod-Push

Note: Obtain Parts From Kawasaki

$13.99

$

Usually ships in 2-5 days

0

16007

Kawasaki 16007-2052

Seat-Spring

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 7

0

49078

Kawasaki 49078-2060

Spring-Valve, Engine

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 7

0

49118

Kawasaki 49118-2138

Camshaft

Note: Obtain Parts From Kawasaki

$218.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 92049-2100

SEAL-OIL,VSB (7X12X5.5X9.7)

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 20+

0

92145

Kawasaki 92145-2085

Spring

Note: Obtain Parts From Kawasaki

$2.99

$

Usually ships in 2-5 days

0

92151

Toro 92151-2134

Bolt

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

92152

Kawasaki 92152-2066

Collar
(Superseded to 92152-2077)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, only 1 left!

0

92200

Kawasaki 92200-2128

Washer
(Superseded to 92200-2151)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 20+

0

130

Toro 130G0814

Bolt-Flanged

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

311

Toro 311B0600

NUT-HEX (6mm)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable
