74252 (Z 587 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FD750D-AS03 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

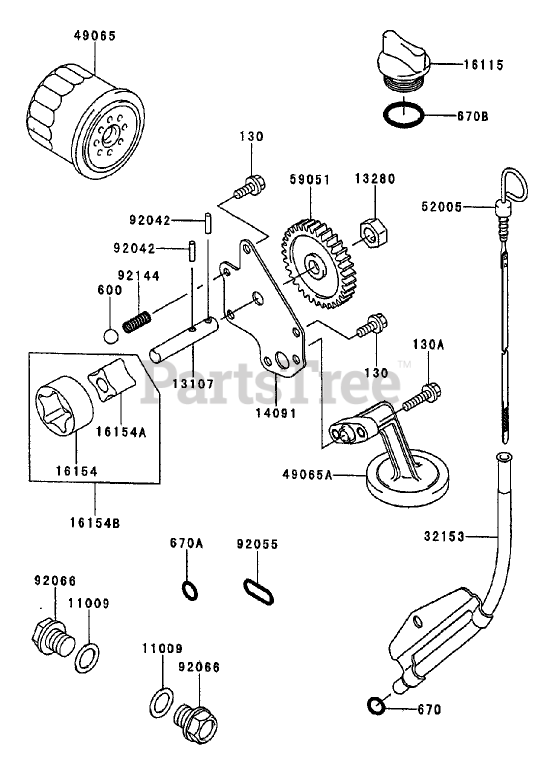

LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FD750D-AS03 Parts Diagram

  • Title
11009

Kawasaki 11009-2566

Gasket-Plug, Drain

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 8

0

13107

Kawasaki 13107-2281

Shaft-Pump, Oil

Note: Obtain Parts From Kawasaki

$11.99

$

Usually ships in 2-5 days

0

13280

Kawasaki 13280-2061

Holder-Pump, Oil

Note: Obtain Parts From Kawasaki

$6.49

$

Usually ships in 2-5 days

0

14091

Kawasaki 14091-2065

Cover-Pump, Oil

Note: Obtain Parts From Kawasaki

$9.49

$

Usually ships in 2-5 days

0

16115

Kawasaki 16115-2126

Cap-Filler, Oil

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, only 4 left!

0

16154

Kawasaki 16154-1075

Rotor-Pump, Outer

Note: Obtain Parts From Kawasaki

$22.99

$

Usually ships in 2-5 days

0

16154A

Kawasaki 16154-1076

Rotor-Pump, Inner

Note: Obtain Parts From Kawasaki

$22.99

$

Usually ships in 2-5 days

0

16154B

Kawasaki 16154-1079

Rotor-Pump

Note: Obtain Parts From Kawasaki

$29.99

$

In Stock, only 2 left!

0

32153

Kawasaki 32153-2076-9H

Pipe-Gauge, Oil

Note: Obtain Parts From Kawasaki

$31.99

$

Usually ships in 2-5 days

0

49065

Kawasaki 49065-2071

Filter-Oil

Note: Obtain Parts From Kawasaki

$15.99

$

In Stock, Qty 20+

0

49065A

Kawasaki 49065-2082

Filter-Oil

Note: Obtain Parts From Kawasaki

$30.99

$

Usually ships in 2-5 days

0

52005

Kawasaki 52005-2132

Gauge-Oil

Note: Obtain Parts From Kawasaki

$26.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2354

Gear-Spur (33T)

Note: Obtain Parts From Kawasaki

$21.99

$

In Stock, only 3 left!

0

92042

Kawasaki 92042-014

Pin

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 12

0

92055

Kawasaki 92055-2086

O-Ring

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 16

0

92066

Kawasaki 92066-2099

Plug-Drain

Note: Obtain Parts From Kawasaki

$15.99

$

In Stock, only 2 left!

0

92144

Kawasaki 92144-2053

Spring
(Superseded to 92145-2132)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, only 1 left!

0

130

Toro 130G0616

Bolt-Flanged (6X16)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

130A

Toro 130G0625

Bolt-Flanged (6X25)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

600

Kawasaki 600A1300

Ball-Steel (13/32)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 14

0

670

Kawasaki 670B2010

O-Ring (10mm)

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 10

0

670A

Kawasaki 670B2011

O-Ring (11MM)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 20+

0

670B

Kawasaki 670B3025

O-Ring (25mm)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 1 left!

0
