74252 (Z 587 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) COOLING SYSTEM ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

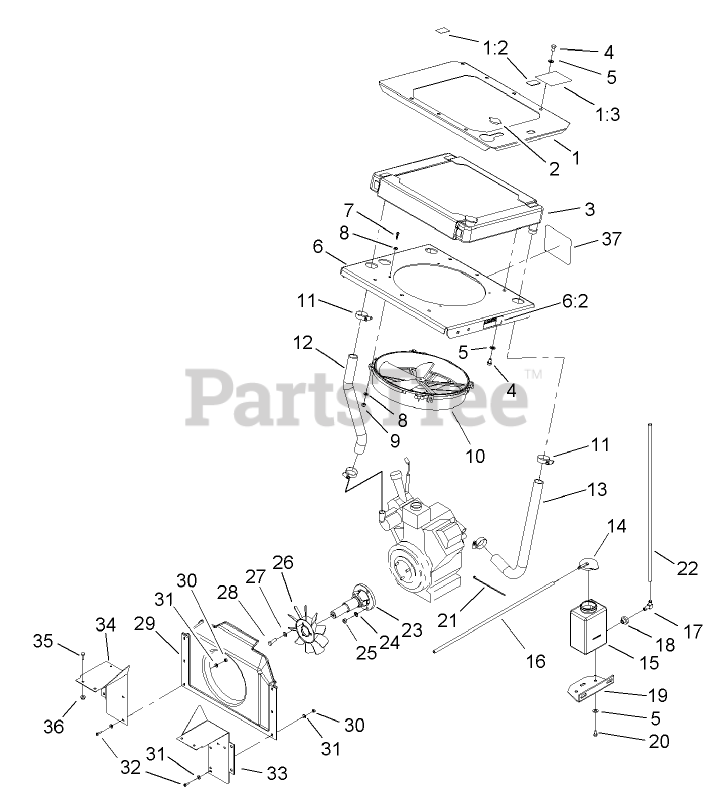

COOLING SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 104-7843

Radiator Trim Plate ASM

$

$

Not available

1:2

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

1:3

Toro 104-2449

DECAL-COOLANT

$10.99

$

Usually ships in 3-6 days

0

2

Toro 1-643161

CAP-RADIATOR

$84.99

$

In Stock, only 3 left!

0

3

Toro 103-1046

RADIATOR-MOUNT

$868.99

$

Usually ships in 3-6 days

0

4

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 100-4301

FAN MOUNTING PLATE ASM
(Superseded to 99-4644)

$

$

Not available

6:2

Toro 1-643253

DECAL-FAN, RADIATOR

$5.49

$

Usually ships in 3-6 days

0

7

$1.49

$

Usually ships in 3-6 days

0

8

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

9

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

10

$615.99

$

Usually ships in 3-6 days

0

11

Toro 1-633989

CLAMP-HOSE
(Superseded to 2412-34)

$2.49

$

In Stock, only 3 left!

0

12

Toro 103-0074

HOSE-INLET, RADIATOR

$130.99

$

Usually ships in 3-6 days

0

13

Toro 103-0075

HOSE-OUTLET, RADIATOR

$104.99

$

Usually ships in 3-6 days

0

14

Toro 1-643164

CAP-TANK, OVERFLOW

$19.99

$

In Stock, only 3 left!

0

15

Toro 1-643163

TANK-OVERFLOW

$96.99

$

Usually ships in 3-6 days

0

16

Toro 1-643131

HOSE
(Superseded to 109-2669)

$12.99

$

In Stock, only 1 left!

0

17

Toro 1-643259

FITTING-ELBOW
(Superseded to 46-6550)

$41.99

$

Usually ships in 3-6 days

0

18

Toro 1-513645

BUSHING-VALVE, FUEL
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

19

Toro 103-2603-03

BRACKET-BOTTLE

$

$

Not available

20

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

21

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

22

$

$

Not available

23

Toro 1-633851

EXTENSION-CRANKSHAFT

$327.99

$

Usually ships in 3-6 days

0

24

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

25

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

26

Toro 1-633869

FAN-PUMP, COOLING

$28.99

$

In Stock, only 1 left!

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 1-809095

SCREW-HSH

$

$

Not available

29

Toro 103-0098

SHROUD-FAN, HYD

$212.99

$

Usually ships in 3-6 days

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

33

Toro 103-0895-03

SHIELD-LH

$

$

Not available

34

Toro 1-633794-03

SHIELD-RH

$

$

Not available

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

37

$

$

Not available
