74252 (Z 587 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) COOLING EQUIPMENT ASSEMBLY KAWASAKI FD750D-AS03 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

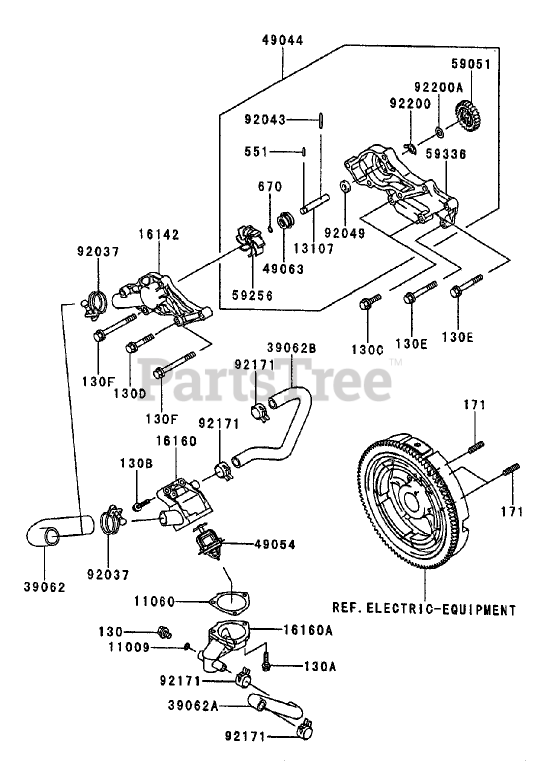

COOLING EQUIPMENT ASSEMBLY KAWASAKI FD750D-AS03 Parts Diagram

  • Title

11009

Kawasaki 11009-3028

Gasket (8.2X12X1)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 10

0

11060

Kawasaki 11060-2475

Gasket-Thermostat

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, only 3 left!

0

13107

Kawasaki 13107-2097

Shaft-Impeller

Note: Obtain Parts From Kawasaki

$9.49

$

In Stock, only 1 left!

0

16142

Kawasaki 16142-2077

Cover-Pump

Note: Obtain Parts From Kawasaki

$49.99

$

Usually ships in 2-5 days

0

16160

Kawasaki 16160-2127

Body-Upper
(Superseded to 16160-2139)

Note: Obtain Parts From Kawasaki

$38.99

$

Usually ships in 2-5 days

0

16160A

Kawasaki 16160-6002

Body-Valve

Note: Obtain Parts From Kawasaki

$71.99

$

Usually ships in 2-5 days

0

39062

Toro 39062-2080

Hose-Cooling

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

39062A

Kawasaki 39062-2083

Hose-Cooling

Note: Obtain Parts From Kawasaki

$17.99

$

Usually ships in 2-5 days

0

39062B

Kawasaki 39062-2084

Hose-Cooling
(Superseded to 39062-2098)

Note: Obtain Parts From Kawasaki

$25.99

$

Usually ships in 2-5 days

0

49044

Kawasaki 49044-2063

Pump-Water
(Superseded to 49044-2067)

Note: Obtain Parts From Kawasaki

$261.99

$

In Stock, only 1 left!

0

49054

Kawasaki 49054-2058

Thermostat

Note: Obtain Parts From Kawasaki

$58.99

$

In Stock, only 2 left!

0

49063

Kawasaki 49063-1054

Seal-Mechanical
(Superseded to 49063-1056)

Note: Obtain Parts From Kawasaki

$

$

Not available

59051

Kawasaki 59051-2355

Gear-Spur (25T)

Note: Obtain Parts From Kawasaki

$9.49

$

In Stock, only 2 left!

0

59256

Kawasaki 59256-2069

Impeller

Note: Obtain Parts From Kawasaki

$21.99

$

In Stock, only 1 left!

0

59336

Kawasaki 59336-2078

Case-Pump

Note: Obtain Parts From Kawasaki

$126.99

$

Usually ships in 2-5 days

0

92037

Toro 92170-1284

Clamp

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

92043

Kawasaki 92043-2237

Pin

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 6

0

92049

Kawasaki 92049-2111

Seal-Oil

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, only 2 left!

0

92171

Kawasaki 92171-2056

Clamp

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, only 1 left!

0

92200

Kawasaki 92200-2134

Washer

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 3 left!

0

92200A

Kawasaki 92200-2135

Washer (10.2X19X0.8)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 2 left!

0

130

Kawasaki 130C0812

Bolt-Flanged (8X12)
(Superseded to 130AB0812)

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0

130A

Toro 130G0625

Bolt-Flanged (6X25)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

130B

Toro 130G0635

Bolt-Flanged (6X35)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

130C

Kawasaki 130G0830

Bolt-Flanged (8X30)
(Superseded to 130BA0830)

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 5

0

130D

Kawasaki 130G0845

Bolt-Flanged (8X45)
(Superseded to 130BA0845)

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 13

0

130E

Kawasaki 130G0860

Bolt-Flanged (8X60)
(Superseded to 130BA0860)

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 9

0

130F

Kawasaki 130G0880

Bolt-Flanged (8X80)

Note: Obtain Parts From Kawasaki

$2.49

$

Usually ships in 2-5 days

0

171

Toro 171G0818

Bolt-Stud

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

551

Kawasaki 551A0314

Pin-Dowel (3X14)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 9

0

670

Kawasaki 670B1507

O Ring (7mm)
(Superseded to 92055-1072)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 4 left!

0
