74252 (Z 587 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) BRAKE AND WHEEL HUB ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

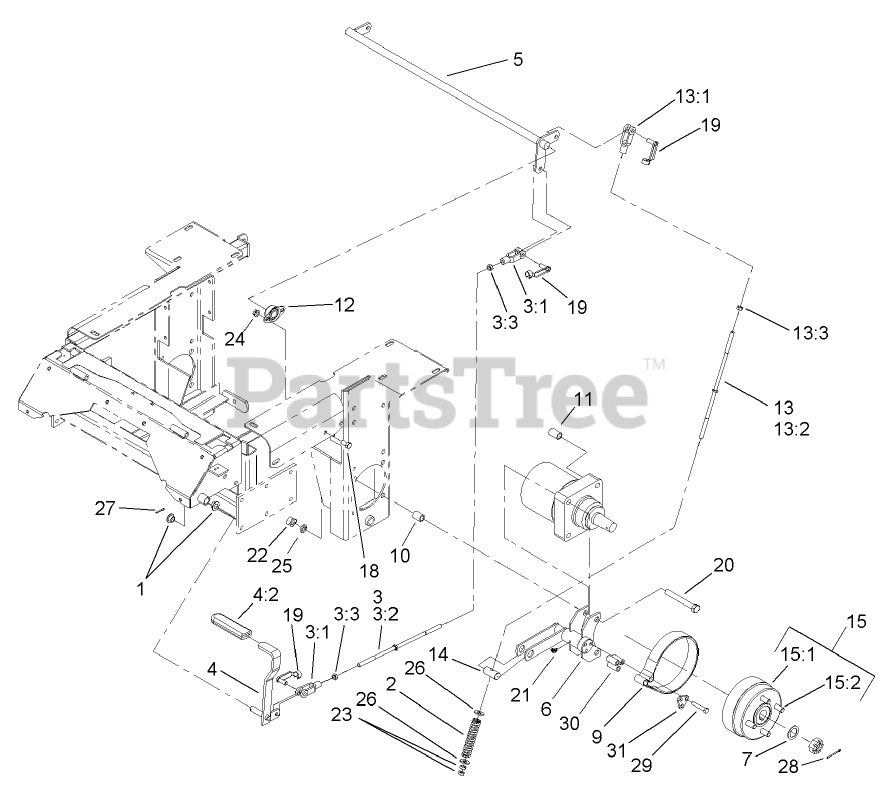

BRAKE AND WHEEL HUB ASSEMBLY Parts Diagram

  • Title
1

Toro 1-513140

BEARING-CONTROL

$6.49

$

In Stock, Qty 8

0

2

Toro 1-633454

SPRING-BRAKE

$10.99

$

In Stock, only 1 left!

0

3

Toro 103-4332

Brake Rod And Yoke ASM

$49.99

$

Usually ships in 3-6 days

0

3:1

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 5

0

3:2

Toro 1-633477

ROD-BRAKE

$19.99

$

In Stock, only 1 left!

0

3:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

4

Toro 1-634500

BRAKE LEVER ASM

$74.99

$

Usually ships in 3-6 days

0

4:2

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

5

Toro 1-632217-03

SHAFT-BRAKE

$169.99

$

Usually ships in 3-6 days

0

6

Toro 103-0354-03

BRAKE BRACKET ASM

$215.99

$

Usually ships in 3-6 days

0

7

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

9

Toro 103-0355

BAND-BRAKE

$58.99

$

In Stock, only 4 left!

0

10

Toro 1-633060

SPACER-WHEEL, SHORT

$14.99

$

Usually ships in 3-6 days

0

11

Toro 1-633062

SPACER-WHEEL, LONG

$17.99

$

Usually ships in 3-6 days

0

12

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

13

Toro 103-4333

Brake Rod And Yoke ASM

$40.99

$

Usually ships in 3-6 days

0

13:1

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 5

0

13:2

Toro 1-633477

ROD-BRAKE

$19.99

$

In Stock, only 1 left!

0

13:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

14

Toro 1-633144

PIN-TRUNION

$13.99

$

Usually ships in 3-6 days

0

15

Toro 103-0590

WHEEL HUB ASM

$182.99

$

In Stock, Qty 8

0

15:1

Toro 103-0589

HUB-WHEEL

$173.99

$

In Stock, only 3 left!

0

15:2

Toro 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 11

0

18

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

19

Toro 103-2399

Pin-Spring, Clevis

$6.49

$

In Stock, Qty 11

0

20

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

21

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

22

Toro 103-0131

NUT-SQUARE

$6.49

$

In Stock, Qty 17

0

23

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

24

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

26

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

27

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

28

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

29

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

30

Toro 103-0384

SPACER

$1.99

$

In Stock, Qty 6

0

31

Toro 103-0374

RETAINER-BAND, BRAKE

$5.49

$

In Stock, only 4 left!

0
