74251 (Z 587 L) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) ROLL-OVER PROTECTION SYSTEM ASSEMBLY NO. 108-1097 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

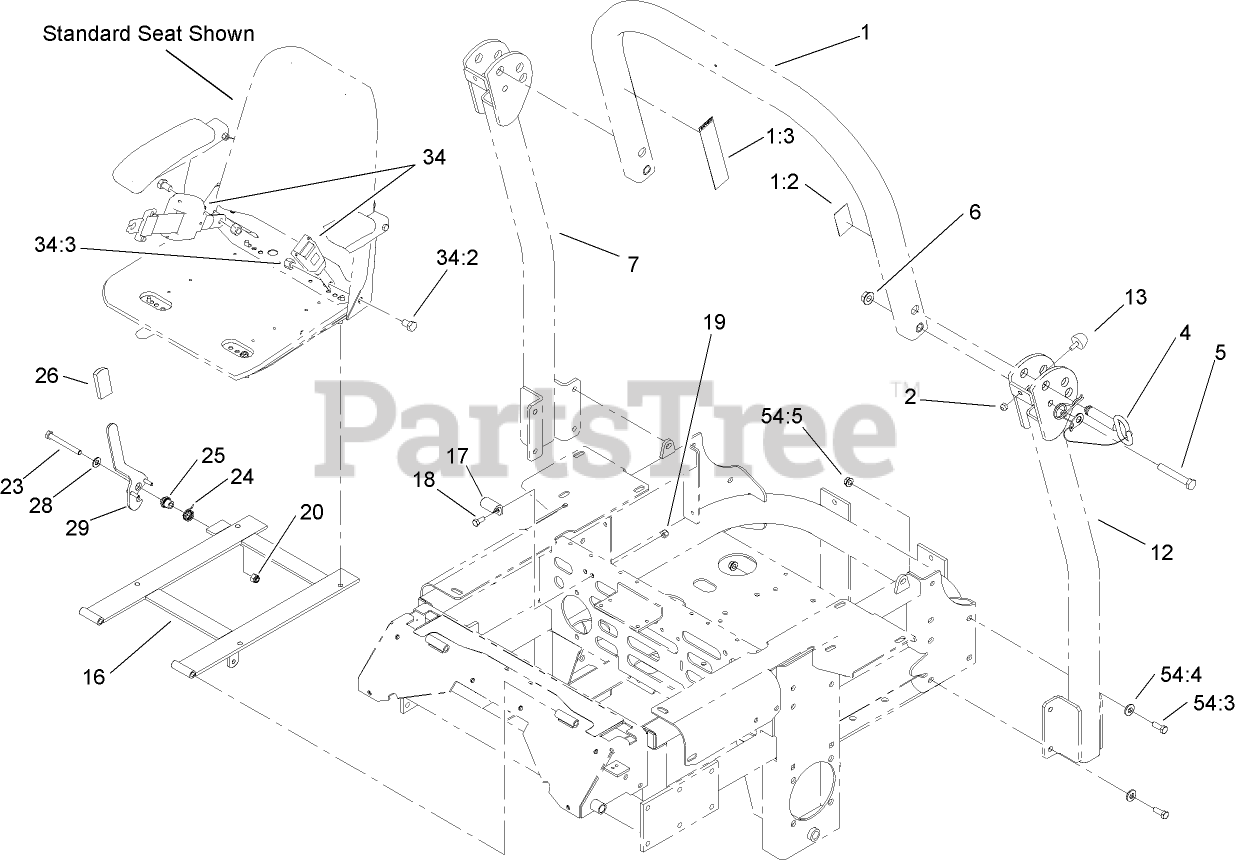

ROLL-OVER PROTECTION SYSTEM ASSEMBLY NO. 108-1097 Parts Diagram

  • Title
1

Upper Tube ASM

Note: Not serviced separately

$

$

Not available

1:2

Toro 107-2101

DECAL-ROPS

$

$

Not available

1:3

Toro 107-2102

DECAL-WARNING, FOLDING ROPS

$9.99

$

In Stock, only 1 left!

0

2

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 8

0

4

Toro 103-4553

PIN-FOLD, ROPS

$79.99

$

In Stock, only 2 left!

0

5

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

6

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

7

TUBE-SUPPORT, RH

Note: Not serviced separately

$

$

Not available

12

TUBE-SUPPORT, LH

Note: Not serviced separately

$

$

Not available

13

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 13

0

16

Toro 107-3052-03

SEAT SUPPORT FRAME ASM

$347.99

$

Usually ships in 3-6 days

0

17

Toro 107-3058

Catch-Latch, Seat

$7.99

$

Usually ships in 3-6 days

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

24

Toro 107-0076

SPRING-TORSION

$13.99

$

Usually ships in 3-6 days

0

25

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

26

Toro 103-4434

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 107-3083

LATCH ASM

$30.99

$

Usually ships in 3-6 days

0

34

Toro 110-0883

RETRACTABLE SEATBELT KIT

$274.99

$

Usually ships in 3-6 days

0

34:2

Toro 3212-4

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

34:3

Toro 3296-7

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

54:3

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

54:4

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

54:5

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

54

BAG-BOLT, ROPS

Note: Not serviced separately

$

$

Not available
