74251 (Z 587 L) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FD750D-BS03 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

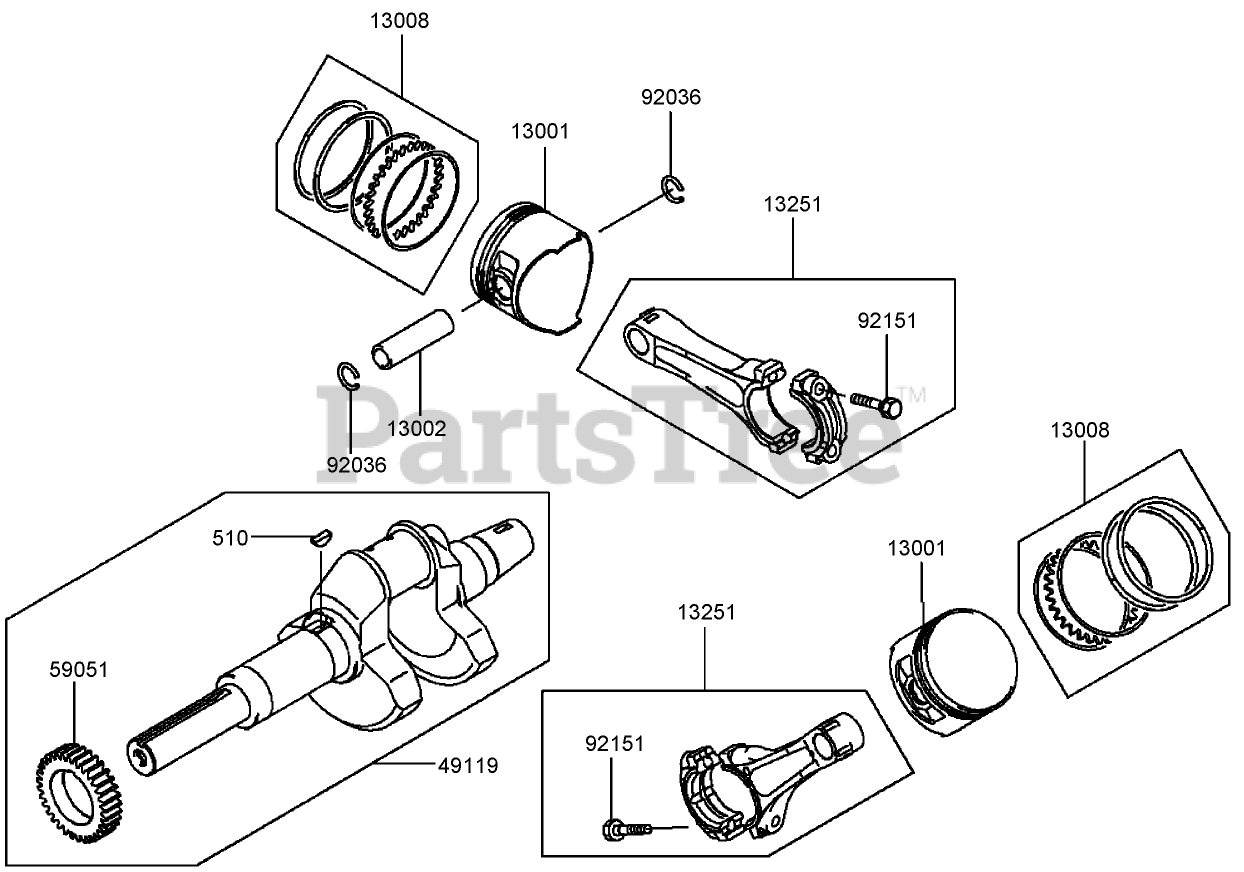

PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FD750D-BS03 Parts Diagram

  • Title
13001

Toro 13001-2125

Piston-Engine

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13002

Kawasaki 13002-2069

Pin-Piston

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, only 1 left!

0

13008

Kawasaki 13008-6007

Ring-Set, Piston

Note: Obtain parts from www.kawpowerepc.com

$37.99

$

In Stock, Qty 6

0

13251

Kawasaki 13251-2058

Connecting Rod ASM
(Superseded to 13251-2084)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

49119

Kawasaki 49119-2198

Crankshaft ASM
(Superseded to 49119-2206)

Note: Obtain parts from www.kawpowerepc.com

$650.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2358

Gear-Spur (33T)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92036

Kawasaki 92036-008

Ring-Snap

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-2150

Bolt
(Superseded to 92153-2054)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

Key-Woodruff

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0
