74250 (Z 587 L) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FD750D-AS03 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

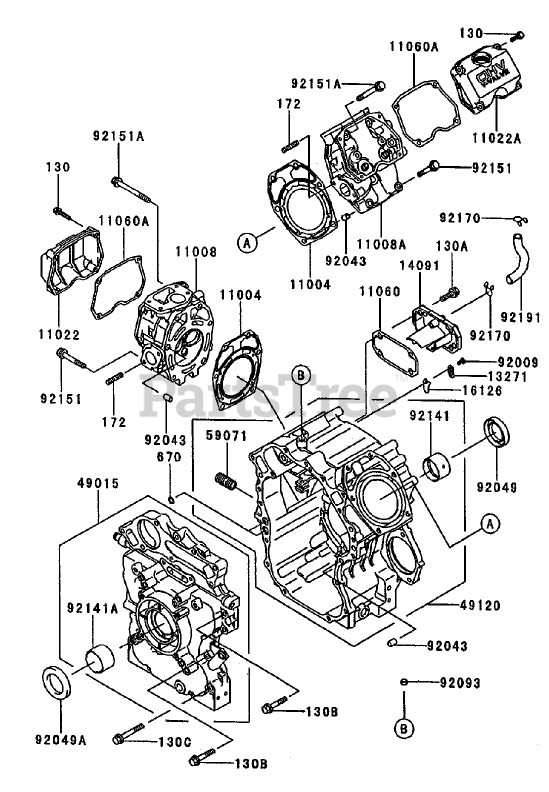

CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FD750D-AS03 Parts Diagram

  • Title

11004

Kawasaki 11004-2142

Gasket-Head

Note: Obtain Parts From Kawasaki

$58.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-2145

Head-Cylinder
(Superseded to 11008-0823)

Note: Obtain Parts From Kawasaki

$333.99

$

Usually ships in 2-5 days

0

11008A

Kawasaki 11008-2146

Head-Cylinder
(Superseded to 11008-0824)

Note: Obtain Parts From Kawasaki

$334.99

$

Usually ships in 2-5 days

0

11022

Kawasaki 11022-2072

Case-Rocker

Note: Obtain Parts From Kawasaki

$50.99

$

Usually ships in 2-5 days

0

11022A

Kawasaki 11022-2073

Case-Rocker

Note: Obtain Parts From Kawasaki

$59.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2466

Gasket-Breather

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, Qty 6

0

11060A

Kawasaki 11060-2470

Gasket-Case, Rocker

Note: Obtain Parts From Kawasaki

$6.49

$

In Stock, Qty 19

0

13271

Kawasaki 13271-2105

Plate

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 2 left!

0

14091

Kawasaki 14091-2064

Cover-Breather

Note: Obtain Parts From Kawasaki

$22.99

$

Usually ships in 2-5 days

0

16126

Kawasaki 16126-2225

Valve-Breather

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 1 left!

0

49015

Kawasaki 49015-6232

Cover-Crankcase
(Superseded to 49015-6292)

Note: Obtain Parts From Kawasaki

$476.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 49120-6127

Crankcase
(Superseded to 49120-6134)

Note: Obtain Parts From Kawasaki

$

$

Not available

59071

Kawasaki 59071-2079

Joint

Note: Obtain Parts From Kawasaki

$6.49

$

In Stock, Qty 8

0

92009

Kawasaki 92009-2308

Screw

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 10

0

92043

Kawasaki 92043-1037

Pin

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-2242

Seal-Oil, ISD (38X58X11) AE

Note: Obtain Parts From Kawasaki

$14.99

$

In Stock, only 2 left!

0

92049A

Kawasaki 92049-2243

Seal-Oil, ISD (42X65X9) AE

Note: Obtain Parts From Kawasaki

$15.99

$

In Stock, only 2 left!

0

92093

Kawasaki 92093-2086

Seal
(Superseded to 92049-2255)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 6

0

92141

Kawasaki 92141-2118

Bearing-Plane
(Superseded to 92141-2123)

Note: Obtain Parts From Kawasaki

$25.99

$

Usually ships in 2-5 days

0

92141A

Kawasaki 92141-2119

Bearing-Plane
(Superseded to 92141-2124)

Note: Obtain Parts From Kawasaki

$25.99

$

In Stock, only 1 left!

0

92151

Toro 92151-2158

Bolt

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

92151A

Kawasaki 92151-2159

Bolt
(Superseded to 92153-2132)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

92170

Kawasaki 92170-2002

Clamp

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, only 3 left!

0

92191

Kawasaki 92191-2105

Tube
(Superseded to 92192-1611)

Note: Obtain Parts From Kawasaki

$3.49

$

Usually ships in 2-5 days

0

130

Toro 130G0630

Bolt-Flanged (6X30)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

130A

Kawasaki 130G0830

Bolt-Flanged (8X30)
(Superseded to 130BA0830)

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 5

0

130B

Kawasaki 130G0845

Bolt-Flanged (8X45)
(Superseded to 130BA0845)

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 13

0

130C

Toro 310G0860

Bolt-Flanged

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

172

Kawasaki 172G0822

Bolt-Stud (8X22)
(Superseded to 172BA0822)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

670

Kawasaki 670B2011

O-Ring (11MM)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 20+

0
