74250 (Z 587 L) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) COOLING MOUNTING FRAME ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

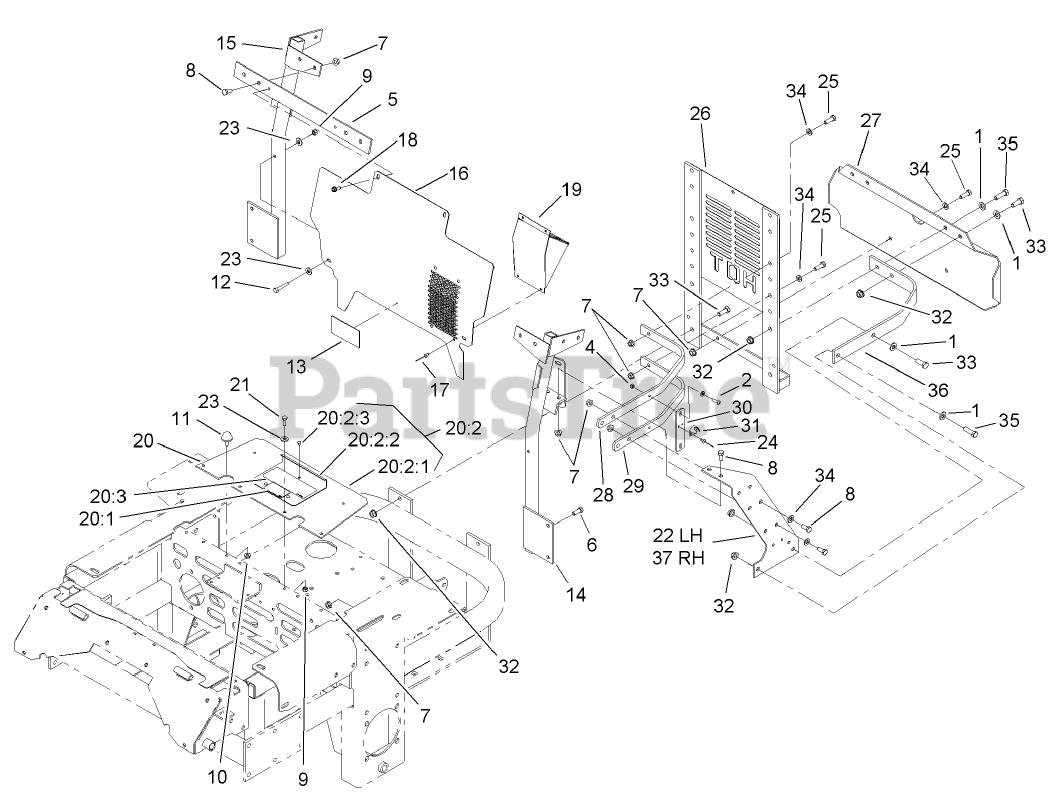

COOLING MOUNTING FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 1-633878-03

CROSSBAR

$

$

Not available

6

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

11

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

12

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

13

Toro 1-643339

DECAL-ROUTING, BELT

$

$

Not available

14

Toro 103-0107-03

Brace-Radiator, LH

$

$

Not available

15

Toro 1-632985-03

BRACE-RADIATOR, RH

$

$

Not available

16

Toro 103-2870-03

Deflector-Air

$112.99

$

Usually ships in 3-6 days

0

17

Toro 3269-3

RIVET-POP

$0.99

$

In Stock, only 4 left!

0

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

19

Toro 103-0110-03

Plenum-Intake, Air

$

$

Not available

20

Toro 1-644276

SHIELD ASM

$102.99

$

In Stock, only 1 left!

0

20:1

Toro 1-633462

DECAL-IMPORTANT

$5.49

$

In Stock, only 4 left!

0

20:2

Toro 1-634308

SHIELD AND LIFT ASM

$84.99

$

Usually ships in 3-6 days

0

20:2:1

Toro 103-1308

SHIELD-ENGINE

$29.99

$

In Stock, only 2 left!

0

20:2:2

Toro 1-633300-03

LIFT-SHIELD

$14.99

$

Usually ships in 3-6 days

0

20:2:3

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

20:3

Toro 103-0368

DECAL-DEVICES, ROTATING
(Superseded to 103-5881)

$6.49

$

In Stock, Qty 10

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 103-0896-03

PLATE-SIDE, LH

$

$

Not available

23

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 923786

RIVET

$0.99

$

Usually ships in 3-6 days

0

25

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 1-632873-03

MOUNT-RADIATOR, REAR

$

$

Not available

27

Toro 1-633886-03

GUARD-BUMPER

$

$

Not available

28

$

$

Not available

29

Toro 1-633898-03

RIB-BOTTOM

$

$

Not available

30

Toro 1-633877-03

BAR-HOOK, LATCH

$

$

Not available

31

Toro 1-643189

KEEPER-LATCH, RUBBER
(Superseded to 249-40)

$11.99

$

Usually ships in 3-6 days

0

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

34

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

35

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Toro 1-633896-03

BAR-RADIATOR MOUNT FRAME

$

$

Not available

37

Toro 103-0897-03

PLATE-SIDE, RH

$

$

Not available
