74248 (Z 500) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) PISTON/CRANKSHAFT ASSEMBLY KAWASAKI FH721D-AS08 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

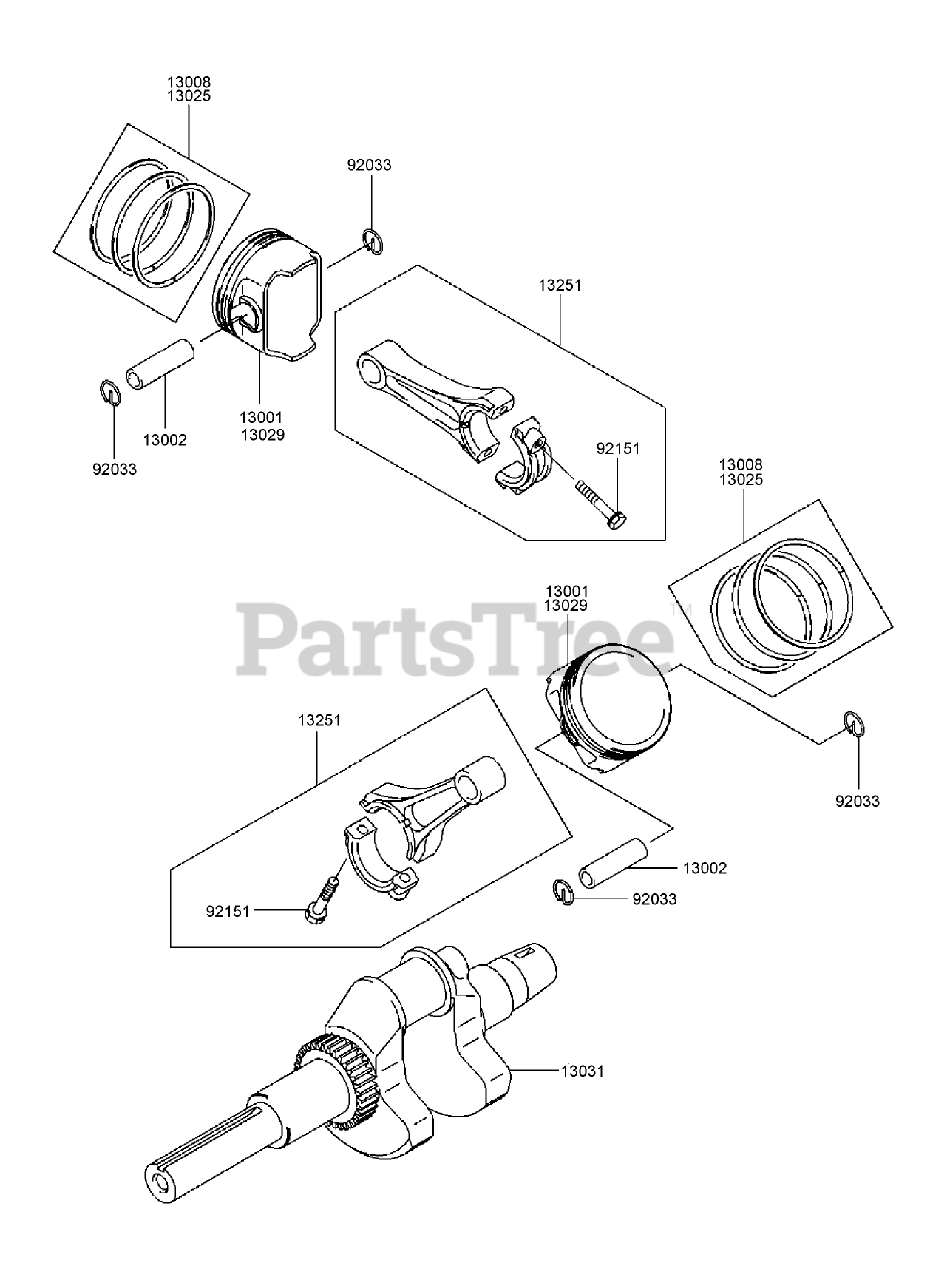

PISTON/CRANKSHAFT ASSEMBLY KAWASAKI FH721D-AS08 Parts Diagram

  • Title
13001

Toro 13001?7007

PISTON?ENGINE

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13002

Toro 13002?7001

PIN?PISTON

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13008

Toro 13008?6058

RING SET?PISTON

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13025

Toro 13025?7002

RING SET?PISTON (L,0.50)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13029

Toro 13029?7003

PISTON?ENGINE (L,0.50)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13031

Toro 13031?7007

CRANKSHAFT

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13251

Toro 13251?7005

CONNECTING ROD ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92033

Toro 92033?7005

RING?SNAP

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92151

Toro 92151?7017

BOLT (6X35)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
