74248 (Z 500) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) ELECTRICAL ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

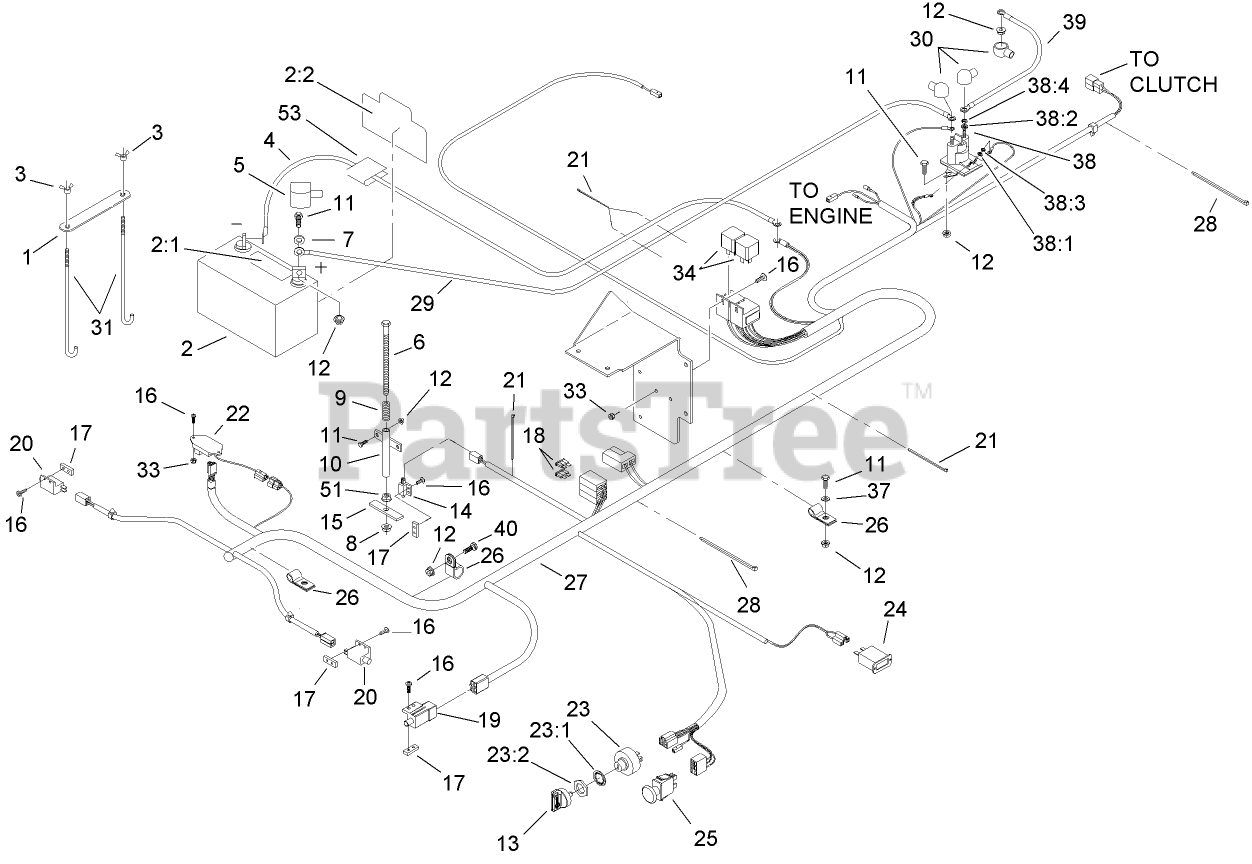

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 107-9277-03

STRAP-HOLDDOWN, BATTERY

$6.49

$

In Stock, Qty 7

0

2

Toro 105-1692

BATTERY

$

$

Not available

2:1

Toro 104-4163

Decal-Battery

$

$

Currently unavailable

2:2

Toro 104-4164

Decal-Battery

$

$

Currently unavailable

3

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

4

Toro 1-633307

WIRE-GROUND

$39.99

$

In Stock, only 3 left!

0

5

Toro 1-543391

INSULATOR-BATTERY
(Superseded to 109-2407)

$5.49

$

In Stock, only 4 left!

0

6

Toro 1-800282

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

7

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

9

Toro 1-523415

SPRING-SWITCH, SEAT

$31.99

$

In Stock, only 1 left!

0

10

Toro 1-522424-03

MOUNT-SPRING, SEAT

$36.99

$

Usually ships in 3-6 days

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

13

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

14

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 15

0

15

Toro 1-513180

PLATE-SWITCH, SEAT

$7.99

$

In Stock, only 3 left!

0

16

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

17

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

18

Toro 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

19

Toro 1-633111

SWITCH

$20.99

$

In Stock, Qty 20+

0

20

Toro 1-513051

SWITCH-OPEN, NORMALLY

$18.99

$

In Stock, Qty 20+

0

21

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

22

Toro 100-6186

MODULE-DELAY, SEAT

$43.99

$

In Stock, only 4 left!

0

23

Toro 103-0206

SWITCH-STARTING, KEY
(Superseded to 109-4736)

$41.99

$

In Stock, Qty 15

0

23:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

23:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

24

Toro 1-513374

METER-HOUR
(Superseded to 120-2244)

$67.99

$

In Stock, only 1 left!

0

25

Toro 103-5221

SWITCH-PTO

$55.99

$

In Stock, Qty 20+

0

26

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

27

Toro 106-7494

Harness-Wire

$681.99

$

Usually ships in 3-6 days

0

28

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

29

Toro 1-523281

WIRE-STARTER
(Superseded to 109-7630)

$42.99

$

In Stock, only 2 left!

0

30

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

31

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, only 2 left!

0

33

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 1-643275

RELAY

$22.99

$

In Stock, Qty 8

0

37

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 1-513075

SWITCH-SOLENOID
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

38:1

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

38:2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

38:3

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

38:4

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

39

Toro 1-633306

CABLE-STARTER, POSITIVE
(Superseded to 109-7620)

$23.99

$

In Stock, only 1 left!

0

40

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

51

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

53

Toro 107-9309

DECAL-INSTRUCTIONS, CHARGING

$20.99

$

Usually ships in 3-6 days

0
