74247 (Z 557) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) GROUP 7-STARTER ASSEMBLY KOHLER CH740-0007 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

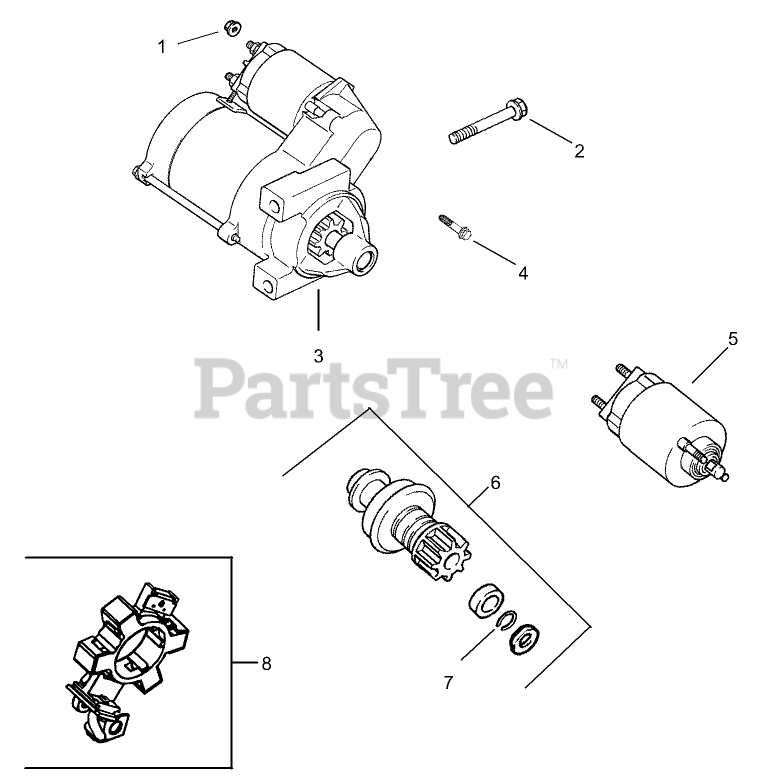

GROUP 7-STARTER ASSEMBLY KOHLER CH740-0007 Parts Diagram

  • Title

1

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

2

Kohler M-839080-S

SCREW-FLG (M8X1.25X80)
(Superseded to M-851080-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 2 left!

0

3

Kohler 25 098 09-S

Starter, solenoid shift assembly(Includes 4-8)
(Superseded to 25 098 20-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 25 086 113-S

SCREW-TORX HEAD, EXTERNAL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

Usually ships in 2-5 days

0

5

Kohler 25 435 05-S

Kit, solenoid (Includes 4)
(Superseded to 25 435 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$212.99

$

In Stock, only 2 left!

0

6

Kohler 25 755 33-S

Kit, pinion drive (Includes 7)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

Kohler 25 141 05-S

RING-RETAINING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

8

Kohler 25 225 01-S

Brush Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$35.99

$

Usually ships in 2-5 days

0
