74247 (Z 557) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) GROUP 2-CRANKSCASE ASSEMBLY KOHLER CH740-0007 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

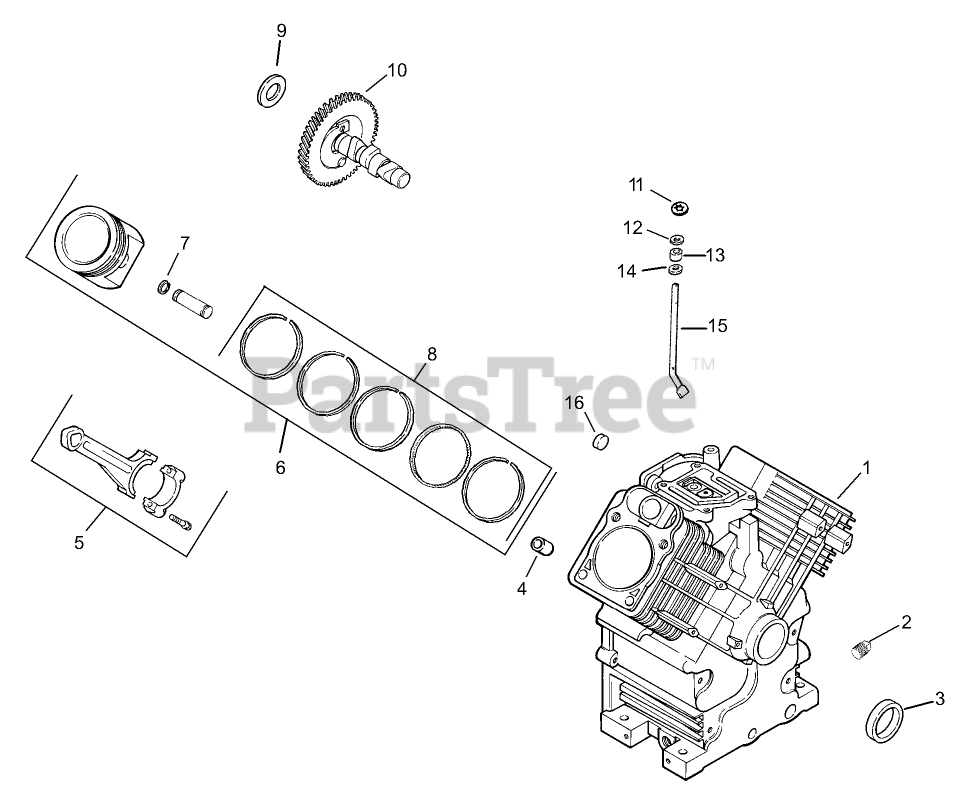

GROUP 2-CRANKSCASE ASSEMBLY KOHLER CH740-0007 Parts Diagram

  • Title

1

Toro N/A

Short Block

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

2

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

3

Kohler 24 032 01-S

SEAL-OIL
(Superseded to 24 032 19-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.49

$

In Stock, Qty 20+

0

4

Kohler 24 380 13-S

Pin-Locating
(Superseded to 24 380 16-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 3 left!

0

5

Kohler 24 067 13-S

Rod-Connecting (Standard)
(Superseded to 25 067 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$59.99

$

In Stock, only 4 left!

0

Kohler 24 067 14-S

Rod-Connecting (.25)
(Superseded to 25 067 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$59.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 08-S

Piston w/Ring Set(Std.)(Includes 7, 8)
(Superseded to 25 874 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$270.99

$

In Stock, only 2 left!

0

Kohler 24 874 16-S

Piston and Ring Set (.08)
(Superseded to 25 874 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$261.99

$

Usually ships in 2-5 days

0

7

Kohler 24 018 01-S

RETAINER-PIN, PISTON

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 7

0

8

Kohler 24 108 04-S

Set-Ring (STD and .08)
(Superseded to 24 108 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 012 18-S

CAMSHAFT KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

Kohler 24 018 09-S

RETAINER-RING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

12

Kohler M-931010-S

WASHER-FLAT (9MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

13

Kohler 28 032 09-S

SEAL-CROSS SHAFT, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 6

0

14

Kohler 24 468 15-S

WASHER-FLAT (11/32)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

15

Kohler 24 144 38-S

SHAFT-CROSS, GOVERNOR
(Superseded to 24 144 39-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$41.99

$

Usually ships in 2-5 days

0

16

Kohler 52 139 09-S

PLUG-CUP

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0
