74246 (Z 557) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) SPINDLE ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

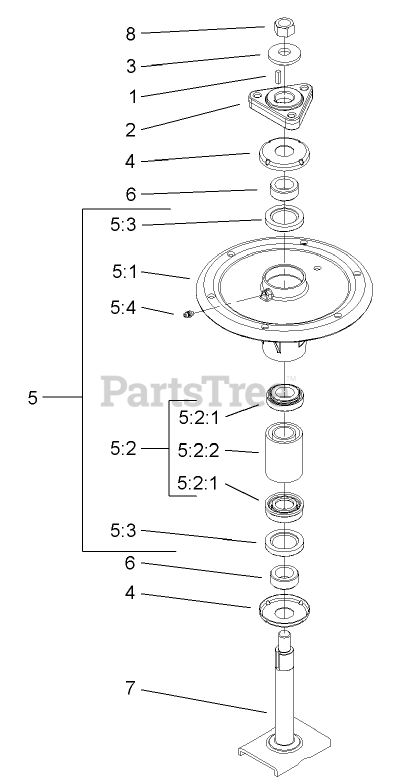

SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 10-8040

KEY-SQUARE

$2.99

$

In Stock, Qty 17

0

2

Toro 106-3277

Hub-Pulley

$27.99

$

In Stock, only 2 left!

0

3

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 19

0

4

Toro 106-3204

Shield-Bearing

$7.99

$

In Stock, Qty 20+

0

5

Toro 107-1627

Spindle Bearing ASM

$

$

Currently unavailable

5:1

Toro 106-3211

Housing-Spindle

$263.99

$

In Stock, only 1 left!

0

5:2

Toro 106-3207

Bearing ASM
(Superseded to 120-3246)

$182.99

$

In Stock, only 2 left!

0

5:2:1

Toro 27-0960

BEARING ASM

$69.99

$

In Stock, only 3 left!

0

5:2:2

Toro 106-3206

Spacer (Matched Set)
(Superseded to 119-8596)

$74.99

$

Usually ships in 3-6 days

0

5:3

Toro 253-133

SEAL-OIL

$22.99

$

In Stock, Qty 16

0

5:4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 106-3218

Spacer-Seal

$22.99

$

In Stock, only 3 left!

0

7

Toro 106-3233

Spindle Shaft ASM

$206.99

$

In Stock, only 4 left!

0

8

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0
