74246 (Z 557) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) SEAT AND ROLL-OVER-PROTECTION-SYSTEM ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

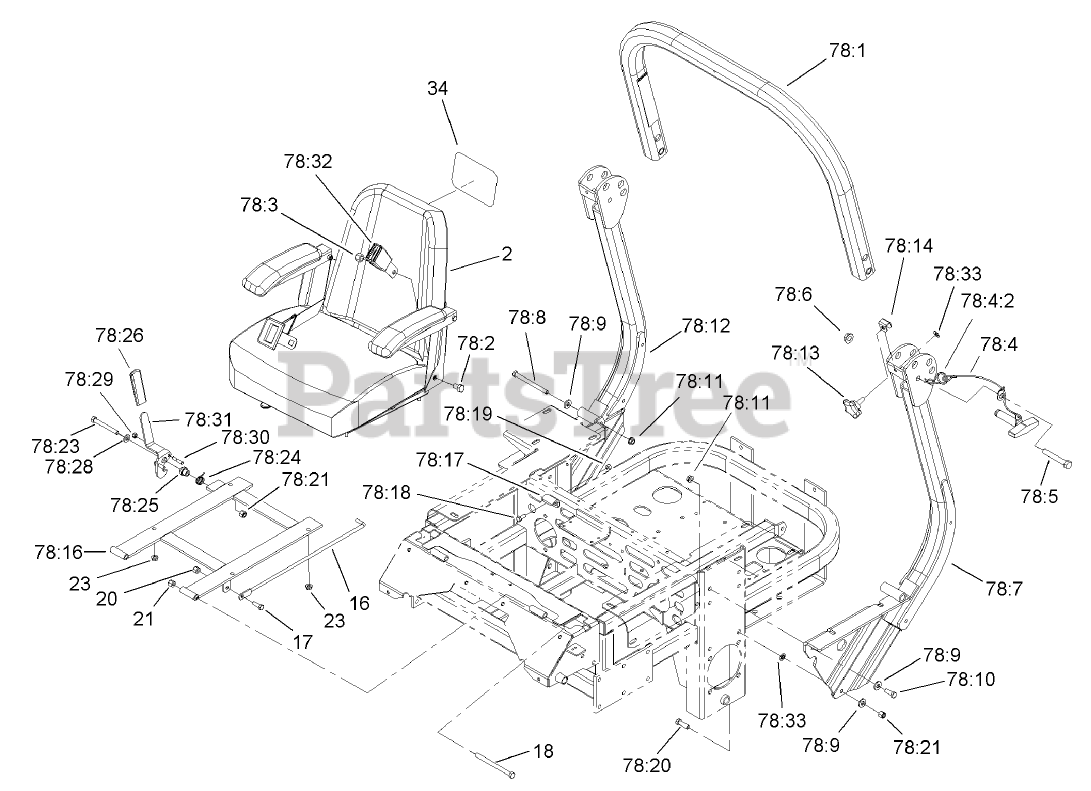

SEAT AND ROLL-OVER-PROTECTION-SYSTEM ASSEMBLY Parts Diagram

  • Title
2

Toro 107-1867

SEAT ASM
(Superseded to 110-0837)

$1641.99

$

Usually ships in 3-6 days

0

16

Toro 1-633293

ROD-HOLDUP, SEAT

$14.99

$

Usually ships in 3-6 days

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro 99-4693

DECAL

$22.99

$

In Stock, only 2 left!

0

78:1

Upper Tube ASM W/Decals

Note: Not serviced separately

$

$

Not available

78:2

Toro 3212-4

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

78:3

Toro 3296-7

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

78:4

Toro 107-3060

PIN LATCH ASM
(Superseded to 103-4553)

$79.99

$

In Stock, only 2 left!

0

78:4:2

Toro 107-3155

Hairpin

$6.49

$

Usually ships in 3-6 days

0

78:5

Toro 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

78:6

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

78:7

LH Rops ASM

Note: Not serviced separately

$

$

Not available

78:8

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

78:9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

78:10

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

78:11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

78:12

RH Rops ASM

Note: Not serviced separately

$

$

Not available

78:13

$8.49

$

In Stock, Qty 5

0

78:14

$5.49

$

In Stock, Qty 6

0

78:16

Toro 107-3052-03

SEAT SUPPORT FRAME ASM

$347.99

$

Usually ships in 3-6 days

0

78:17

Toro 107-3058

Catch-Latch, Seat

$5.49

$

Usually ships in 3-6 days

0

78:18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

78:19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

78:20

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

78:21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

78:23

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

78:24

Toro 107-0076

SPRING-TORSION

$13.99

$

Usually ships in 3-6 days

0

78:25

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

78:26

Toro 62-9130

GRIP-HANDLE

$7.49

$

Usually ships in 3-6 days

0

78:28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

78:29

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

78:30

$

$

Not available

78:31

$

$

Not available

78:32

Toro 103-4317

Belt-Seat
(Superseded to 110-0413)

$304.99

$

Usually ships in 3-6 days

0

78:33

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 9

0

78

Toro 107-0038

ROPS ASM

$740.99

$

Usually ships in 3-6 days

0
