74246 (Z 557) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) FUEL SYSTEM ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

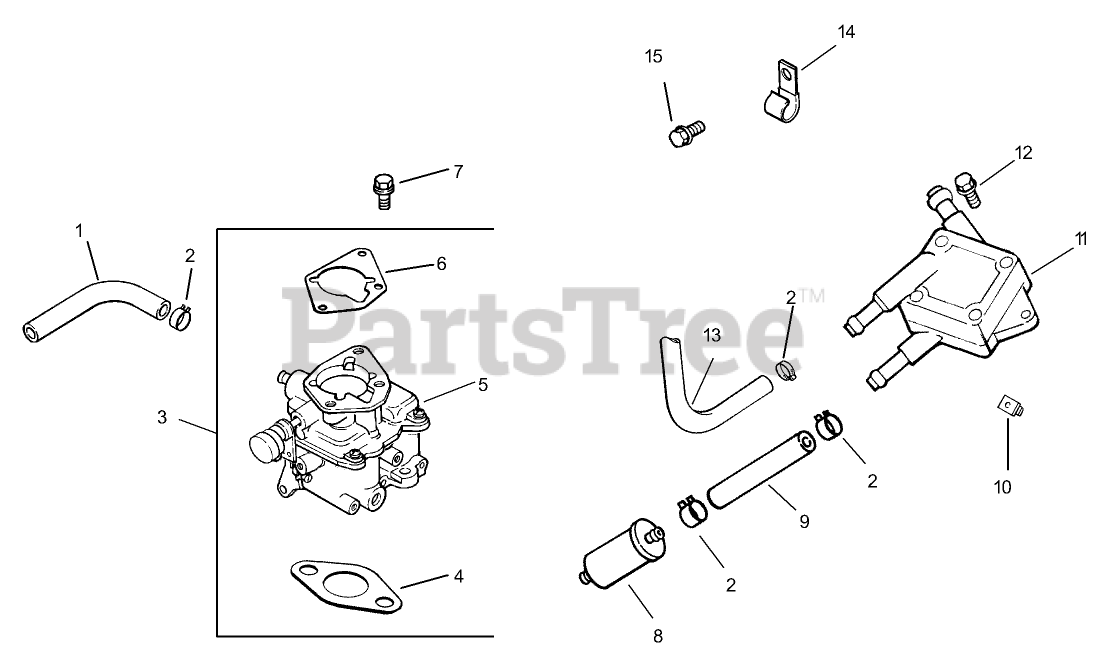

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Kohler 25 353 32-S

Line-Fuel (9.5)
(Superseded to 25 111 81-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 4 left!

0

2

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 93-S

Carburetor Kit w/gasket (Incl. Ref. #4-6)
(Superseded to 24 853 313-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$291.99

$

In Stock, only 1 left!

0

4

Kohler 24 041 17-S

Gasket-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, Qty 9

0

5

Kohler 24 053 93

Carburetor assembly (For information only, not available separately)(Service with kits 24 757 01-S, 24 757 02-S, 24 757 03-S, 24 757 07-S, 24 757 08-S, and 24 757 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 19

0

7

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 24 050 02-S

Filter-Fuel
(Superseded to 24 050 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0

9

Kohler 25 353 15-S

Line-Fuel (3.5)
(Superseded to 25 111 81-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 4 left!

0

10

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

11

Kohler 24 393 16-S

PUMP-FUEL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 18

0

12

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

Kohler 24 353 02-S

Line-Fuel, Flexible (15.5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.99

$

In Stock, only 1 left!

0

14

Kohler 47 154 01-S

CLIP-CABLE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 4 left!

0

15

Kohler M-650012-S

Screw-HF (M6x1.0x12)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 3 left!

0

Kohler 24 757 01-S

SOLENOID REPAIR KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$227.99

$

In Stock, only 1 left!

0

Kohler 24 757 01-S

SOLENOID REPAIR KIT

Note: Not illustrated

$227.99

$

In Stock, only 1 left!

0

Kohler 24 757 02-S

FLOAT REPAIR KIT

Note: Not illustrated

$133.99

$

Usually ships in 2-5 days

0

Kohler 24 757 02-S

FLOAT REPAIR KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$133.99

$

Usually ships in 2-5 days

0

Kohler 24 757 03-S

CARBURETOR REPAIR KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$112.99

$

Usually ships in 2-5 days

0

Kohler 24 757 03-S

CARBURETOR REPAIR KIT

Note: Not illustrated

$112.99

$

Usually ships in 2-5 days

0

Kohler 24 757 07-S

CHOKE REPAIR KIT

Note: Not illustrated

$95.99

$

In Stock, only 1 left!

0

Kohler 24 757 07-S

CHOKE REPAIR KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$95.99

$

In Stock, only 1 left!

0

Kohler 24 757 08-S

ACCELERATOR PUMP REPAIR KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$84.99

$

In Stock, only 1 left!

0

Kohler 24 757 08-S

ACCELERATOR PUMP REPAIR KIT

Note: Not illustrated

$84.99

$

In Stock, only 1 left!

0

Kohler 24 757 09-S

ACCELERATOR PUMP SEAL REPAIR KIT

Note: Not illustrated

$109.99

$

Usually ships in 2-5 days

0

Kohler 24 757 09-S

ACCELERATOR PUMP SEAL REPAIR KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$109.99

$

Usually ships in 2-5 days

0
