74246 TE (Z 557) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) FRONT FRAME ASSEMBLY Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

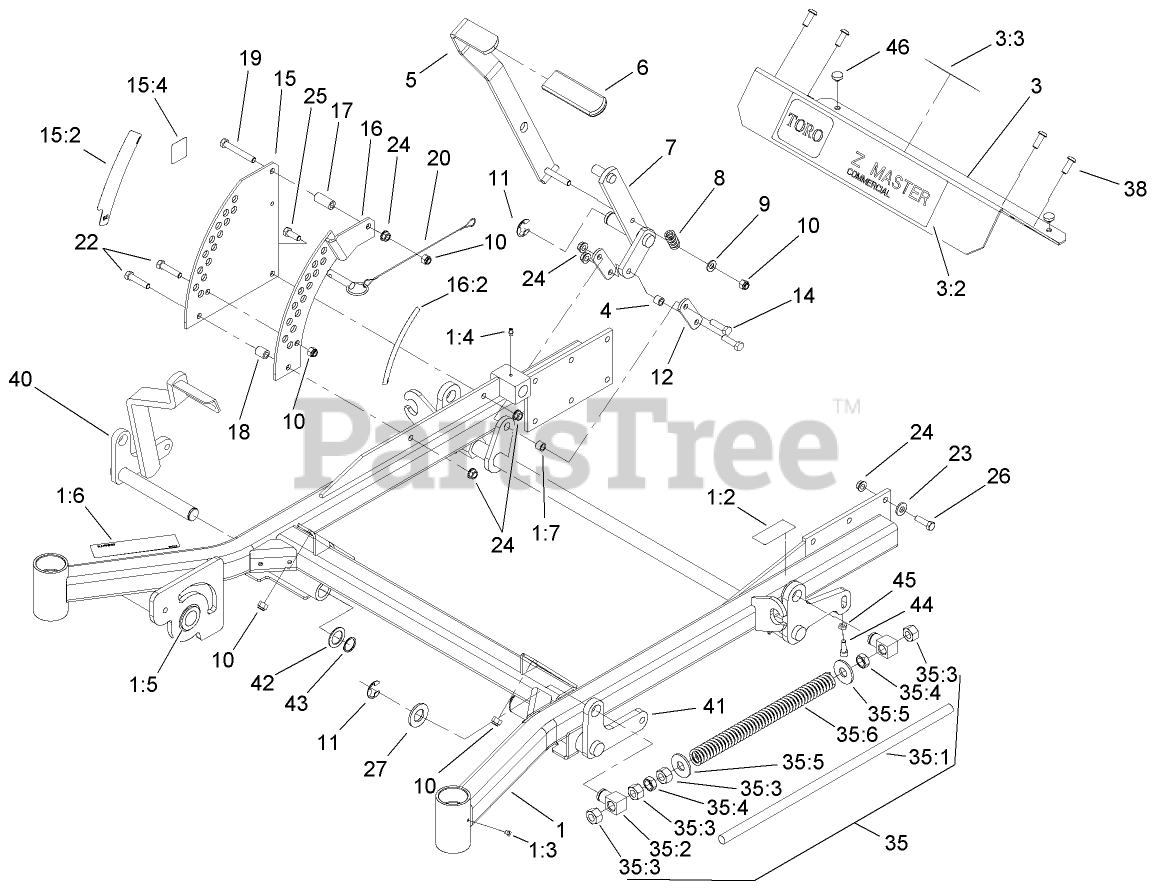

FRONT FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 107-3980

FRAME ASM

$1874.99

$

Usually ships in 3-6 days

0

1:2

Toro 107-3968

DECAL-BRAKE, PARKING

$40.99

$

Usually ships in 3-6 days

0

1:3

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

1:4

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

1:5

Toro 94-1291

BUSHING

$10.99

$

In Stock, Qty 11

0

1:6

Toro 107-3969

DECAL-WARNING

$65.99

$

Usually ships in 3-6 days

0

1:7

Toro 103-1918

Bushing

$7.99

$

In Stock, Qty 6

0

3

Toro 107-3976

FOOTREST

$294.99

$

Usually ships in 3-6 days

0

3:2

Toro 106-7451

DECAL

$27.99

$

In Stock, only 1 left!

0

3:3

Toro 107-1866

DECAL-DANGER, SLOPE

$43.99

$

Usually ships in 3-6 days

0

4

Toro 103-1918

Bushing

$7.99

$

In Stock, Qty 6

0

5

Toro 103-2083-03

LEVER-LIFT
(Superseded to 103-2084)

$75.99

$

Usually ships in 3-6 days

0

6

Toro 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, only 1 left!

0

7

Toro 103-2064-03

ARM-LIFT, DECK

$74.99

$

Usually ships in 3-6 days

0

8

Toro 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 9

0

12

Toro 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

14

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

15

Toro 110-0835

PLATE-DECK LIFT, OUTER (CE)

$

$

Not available

15:2

Toro 107-3961

DECAL-HEIGHT, DECK

$56.99

$

Usually ships in 3-6 days

0

15:4

Toro 105-4674

DECAL-NOISE

$5.99

$

Usually ships in 3-6 days

0

16

Toro 110-0836

PLATE-DECK LIFT, INNER (CE)

$78.99

$

Usually ships in 3-6 days

0

16:2

Toro 107-3962

DECAL-HEIGHT, DECK

$52.99

$

Usually ships in 3-6 days

0

17

Toro 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

18

Toro 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

0

19

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

20

Toro 106-9951

Hitch Pin ASM

$51.99

$

In Stock, only 2 left!

0

22

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

24

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

35

Front Frame Spring ASM

Note: Not serviced separately

$

$

Not available

35:1

Toro 1-633096

ROD-LIFT, DECK

$22.99

$

In Stock, only 3 left!

0

35:2

Toro 1-633441

SWIVEL-DECK MOUNT, REAR

$26.99

$

Usually ships in 3-6 days

0

35:3

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

35:4

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

35:5

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35:6

Toro 1-633064

SPRING-SUPPORT, DECK

$31.99

$

In Stock, only 1 left!

0

38

Toro 3274-94

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

40

Toro 108-7786-01

LIFT-DECK, RH FRONT

$166.99

$

Usually ships in 3-6 days

0

41

Toro 106-8984-01

LIFT-DECK, LH

$162.99

$

Usually ships in 3-6 days

0

42

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

43

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 16

0

44

Toro 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

45

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

46

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0
