74246 TE (Z 557) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) DECK ASSEMBLY NO. 107-3974 Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

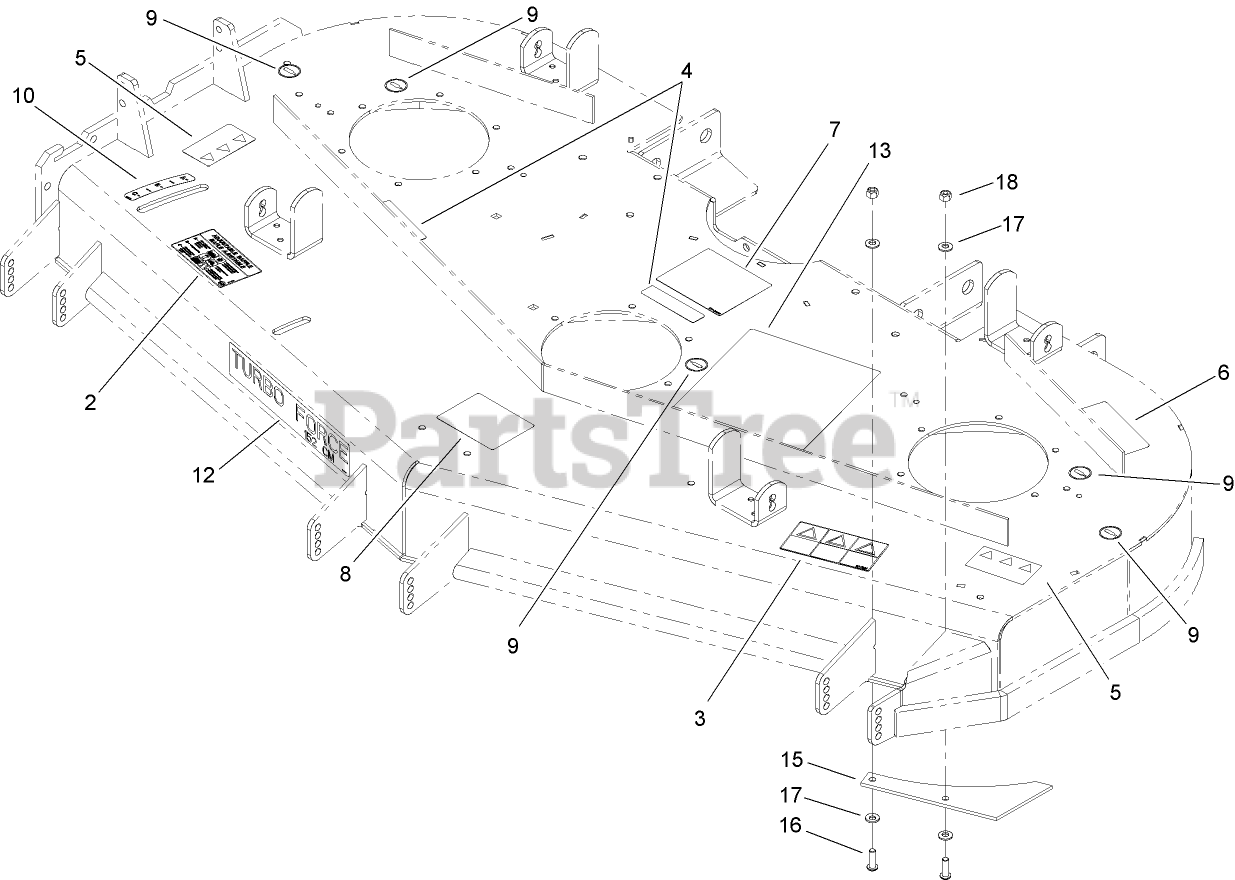

DECK ASSEMBLY NO. 107-3974 Parts Diagram

  • Title

2

Toro 110-2068

DECAL-ADJUSTMENT, BAFFLE

$11.99

$

In Stock, Qty 5

0

3

Toro 93-7824

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

4

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

5

Toro 93-7010

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

6

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$11.99

$

In Stock, only 2 left!

0

7

Toro 107-3996

DECAL-ROUTING, BELT

$

$

Not available

8

Toro 99-8939

DECAL-ANTI SCALP

$28.99

$

Usually ships in 3-6 days

0

9

Toro 58-6520

DECAL-GREASE

$3.49

$

In Stock, only 3 left!

0

10

Toro 110-2067

DECAL-SETTING, BAFFLE

$7.99

$

In Stock, Qty 6

0

12

Toro 107-1619

Decal

$29.99

$

In Stock, only 1 left!

0

13

Toro 107-3984

DECAL-SERVICE, CHECK

$

$

Not available

15

Toro 107-3137

PLATE-TURBO

$47.99

$

Usually ships in 3-6 days

0

16

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

17

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 12

0
