74246 TE (Z 557) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) CRANKCASE ASSEMBLY KOHLER CH740 0075 Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

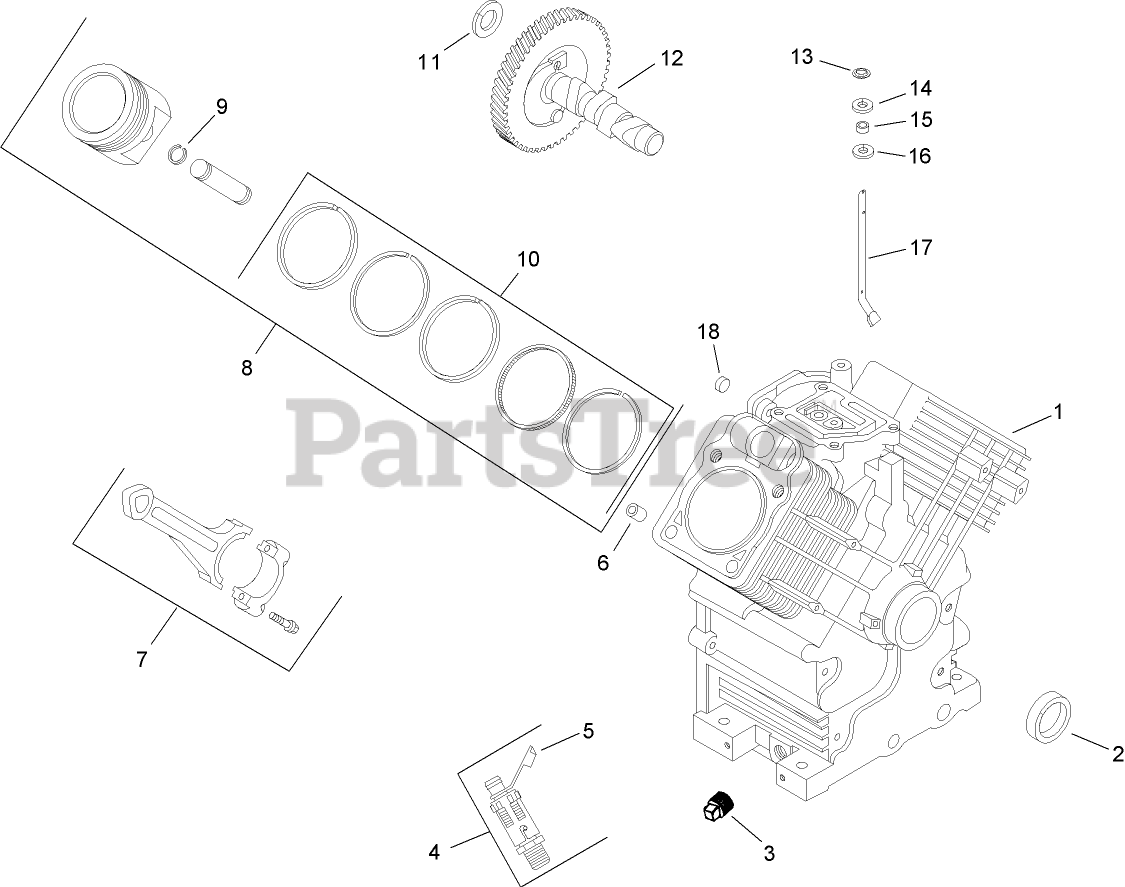

CRANKCASE ASSEMBLY KOHLER CH740 0075 Parts Diagram

  • Title
1

Crankcase (USE: Miniblock 24 782 36)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1

Crankcase (USE: Miniblock 24 782 36)

Note: Not serviced separately

$

$

Not available

2

Kohler 24 032 01-S

SEAL-OIL
(Superseded to 24 032 19-S)

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, Qty 20+

0

3

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

4

Kohler 25 755 14-S

OIL DRAIN VALVE KIT

Note: Obtain parts from www.kohlerplus.com

$26.99

$

In Stock, only 1 left!

0

5

Kohler 25 173 14-S

CAP-VALVE, OIL DRAIN

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

6

Kohler 24 380 16-S

PIN-LOCATING

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

7

Kohler 24 067 20-S

Rod-Connecting (std)
(Superseded to 25 067 04-S)

Note: Obtain parts from www.kohlerplus.com

$59.99

$

In Stock, only 4 left!

0

7

Kohler 24 067 14-S

Rod-Connecting (.25)
(Superseded to 25 067 05-S)

Note: Obtain parts from www.kohlerplus.com

$59.99

$

In Stock, only 1 left!

0

8

Kohler 24 874 08-S

Piston and Ring Set (STD)
(Superseded to 25 874 13-S)

Note: Obtain parts from www.kohlerplus.com

$270.99

$

In Stock, only 2 left!

0

8

Kohler 24 874 16-S

Piston and Ring Set (.08)
(Superseded to 25 874 07-S)

Note: Obtain parts from www.kohlerplus.com

$261.99

$

Usually ships in 2-5 days

0

8

Kohler 24 874 20-S

Piston and Ring Set (.25)
(Superseded to 25 874 16-S)

Note: Obtain parts from www.kohlerplus.com

$261.99

$

In Stock, only 1 left!

0

8

Kohler 24 874 21-S

Piston and Ring Set (.50)
(Superseded to 25 874 17-S)

Note: Obtain parts from www.kohlerplus.com

$261.99

$

Usually ships in 2-5 days

0

9

Kohler 24 018 01-S

RETAINER-PIN, PISTON

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 7

0

10

Kohler 24 108 05-S

Ring Set (.25)
(Superseded to 24 108 15-S)

Note: Obtain parts from www.kohlerplus.com

$103.99

$

In Stock, only 3 left!

0

10

Kohler 24 108 06-S

Ring Set (.25)
(Superseded to 24 108 16-S)

Note: Obtain parts from www.kohlerplus.com

$103.99

$

In Stock, only 2 left!

0

10

Kohler 24 108 07-S

Ring Set (.50)
(Superseded to 24 108 17-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

11

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

11

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

11

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

11

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

11

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

12

Kohler 24 012 18-S

CAMSHAFT KIT

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

13

Kohler 24 018 09-S

RETAINER-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

14

Kohler M-931010-S

WASHER-FLAT (9MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

15

Kohler 28 032 09-S

SEAL-CROSS SHAFT, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 6

0

16

Kohler 24 468 15-S

WASHER-FLAT (11/32)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

17

Kohler 24 144 38-S

SHAFT-CROSS, GOVERNOR
(Superseded to 24 144 39-S)

Note: Obtain parts from www.kohlerplus.com

$41.99

$

Usually ships in 2-5 days

0

18

Kohler 52 139 09-S

PLUG-CUP

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 2 left!

0
