74246 TE (Z 557) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) ROLL-OVER-PROTECTION-SYSTEM ASSEMBLY NO. 107-0038 Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

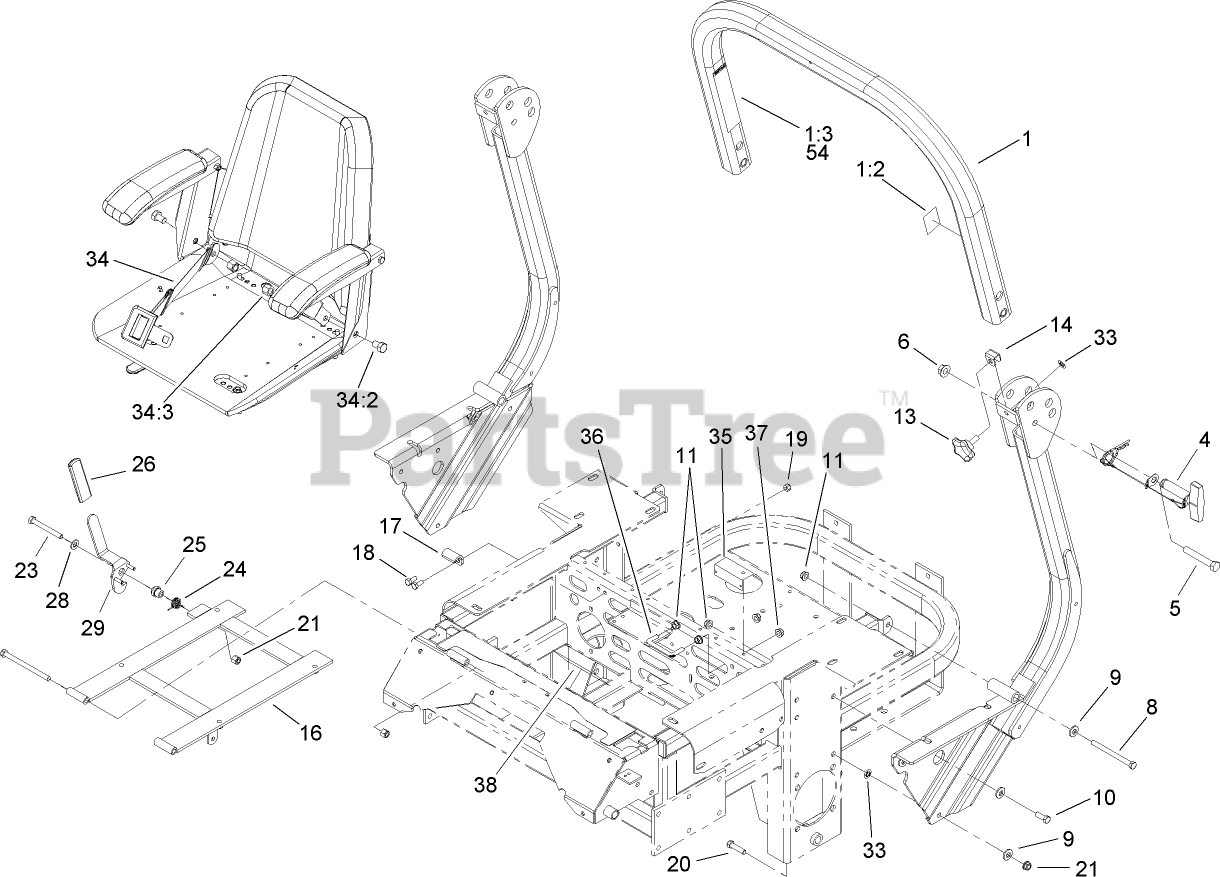

ROLL-OVER-PROTECTION-SYSTEM ASSEMBLY NO. 107-0038 Parts Diagram

  • Title
1

Upper Tube ASM

Note: Not serviced separately

$

$

Not available

1:2

Toro 107-2101

DECAL-ROPS

$

$

Not available

1:3

Toro 107-2102

DECAL-WARNING, FOLDING ROPS

$9.99

$

In Stock, only 1 left!

0

4

Toro 107-3060

PIN LATCH ASM
(Superseded to 103-4553)

$79.99

$

In Stock, only 2 left!

0

5

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

6

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

8

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

$8.49

$

In Stock, Qty 5

0

14

$5.49

$

In Stock, Qty 6

0

16

Toro 107-3052-03

SEAT SUPPORT FRAME ASM

$347.99

$

Usually ships in 3-6 days

0

17

Toro 107-3058

Catch-Latch, Seat

$6.99

$

Usually ships in 3-6 days

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

23

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

24

Toro 107-0076

SPRING-TORSION

$13.99

$

Usually ships in 3-6 days

0

25

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

26

Toro 62-9130

GRIP-HANDLE

$7.99

$

Usually ships in 3-6 days

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

29

Toro 107-3083

LATCH ASM

$27.99

$

Usually ships in 3-6 days

0

33

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

34

Toro 103-4469

SEATBELT KIT

$167.99

$

Usually ships in 3-6 days

0

34:2

Toro 3212-4

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

34:3

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

35

Toro 107-3074

TEMPLATE-DRILL, SEAT CATCH

$

$

Not available

36

Toro 107-3073

U-BOLT

$22.99

$

Usually ships in 3-6 days

0

37

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

38

Toro 107-2112

DECAL-WARNING

$20.99

$

In Stock, only 2 left!

0

54

Toro 107-3069

DECAL-WARNING

$22.99

$

Usually ships in 3-6 days
