74245 (Z 555) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

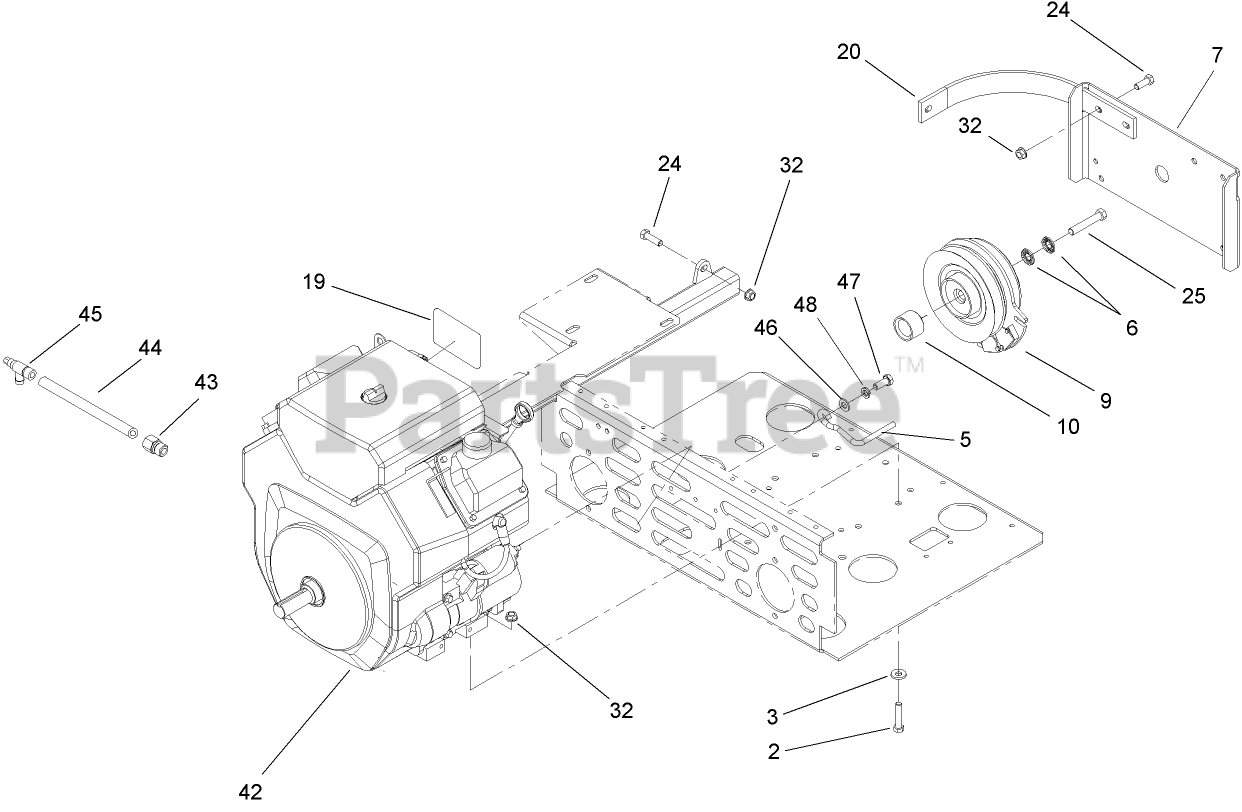

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

2

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, only 2 left!

0

6

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

7

Toro 1-633615-03

GUARD-CLUTCH

$84.99

$

Usually ships in 3-6 days

0

9

Toro 103-6589

CLUTCH

$598.99

$

Usually ships in 3-6 days

0

10

Toro 1-633179

SPACER-CLUTCH

$20.99

$

In Stock, Qty 5

0

19

Toro 103-3270

DECAL

$

$

Not available

20

Toro 103-7454-03

STRAP-GUARD

$47.99

$

Usually ships in 3-6 days

0

24

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

42

ENGINE-KAWASAKI, FH721D-AS08

Note: Not serviced separately

$

$

Not available

43

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

44

Toro 103-1965

Valve-Drain, Oil

$55.99

$

In Stock, only 1 left!

0

45

Toro 103-1964

HOSE-DRAIN, OIL

$11.99

$

In Stock, only 1 left!

0

46

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

47

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

48

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0
