74245 (Z 555) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) CARBURETOR ASSEMBLY KAWASAKI FH721D-AS08 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

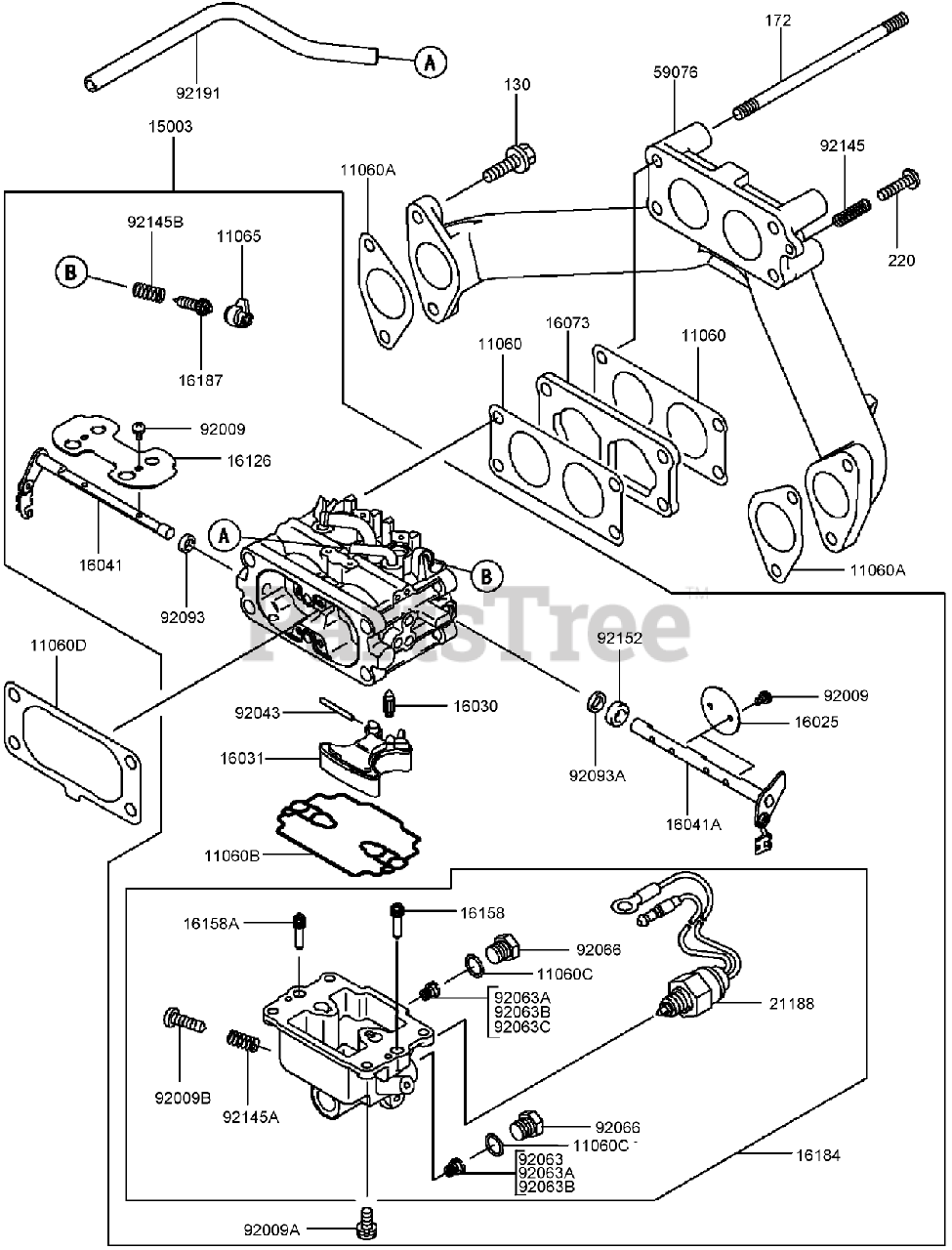

CARBURETOR ASSEMBLY KAWASAKI FH721D-AS08 Parts Diagram

  • Title
11060

Toro 11060?7010

GASKET-CARBURETOR

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

11060A

Toro 11060?7011

GASKET-MANIFOLD

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

11060B

Toro 11060?7018

GASKET-CHAMBER, Float

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

11060C

Toro 11060?7019

GASKET-PLUG, Main

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

11060D

Toro 11060?7025

GASKET-FILTER, Air

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

11065

Toro 11065?7004

CAP-LIMITTER

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

15003

Toro 15003?7088

CARBURETOR ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16025

Toro 16025?7002

VALVE?THROTTLE

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16030

Toro 16030?7002

VALVE?FLOAT

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16031

Toro 16031?7001

FLOAT

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16041

Toro 16041?7011

SHAFT?CARBURETOR

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16041A

Toro 16041?7012

SHAFT?CARBURETOR

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16073

Toro 16073?7003

INSULATOR

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16126

Toro 16126?7004

VALVE-CHOKE

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16158

Toro 16158?7004

JET?SLOW, No. 54

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16158A

Toro 16158?7010

JET?SLOW, No. 52

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16184

Toro 16184?7016

float CHAMBER ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16187

Toro 16187?7003

NEEDLE?JET

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

21188

Toro 21188?7001

SOLENOID

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

59076

Toro 59076?7006

MANIFOLD?INTAKE

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92009

Toro 92009?7003

SCREW

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92009A

Toro 92009?7005

SCREW

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92009B

Toro 92009?7006

SCREW-DRAIN

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92043

Toro 92043?7004

PIN-FLOAT

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92063

Toro 92063?7012

JET?MAIN, No. 108

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92063A

Toro 92063?7013

JET?MAIN, No. 105

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92063B

Toro 92063?7014

JET?MAIN, No. 102

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92063C

Toro 92063?7045

JET?MAIN, No. 112

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92066

Toro 92066?7008

PLUG-Jet, MAIN

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92093

Toro 92093?7001

SEAL (D=5.9)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92093A

Toro 92093?7002

SEAL (D=6.9)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92145

Toro 92145?7005

SPRING

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92145A

Toro 92145?7011

SPRING

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92145B

Toro 92145?7013

SPRING

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92152

Toro 92152?7001

COLLAR

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92191

Toro 92191?7010

TUBE (4.76X7.94X160)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

130

Toro 130B0620

Bolt-Flanged (6X20)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

172

Toro 172G06105

Bolt-Stud (6X10.5 )

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

220

Toro 220B0520

Screw-Pan (5X20)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
