74245 (Z 555) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240002000) (2004) CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

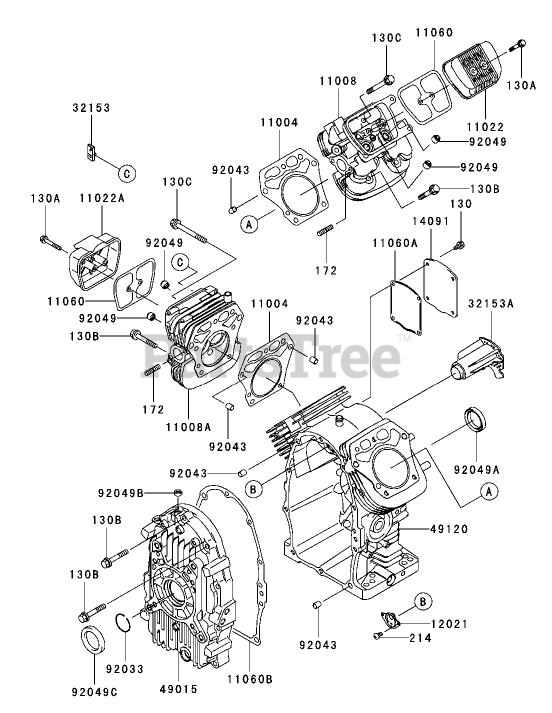

CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

  • Title

11004

Kawasaki 11004-7004

Gasket-Head
(Superseded to 11004-7006)

Note: Obtain Parts From Kawasaki

$10.99

$

In Stock, Qty 20+

0

11008

Toro 11008-7004

Head-Comp-Cylinder No. 2

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

11008A

Toro 11008-7007

Head-Comp-Cylinder No. 1

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

11022

Toro 11022-7002

Case-Rocker

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

11022A

Kawasaki 11022-7004

Case-Rocker

Note: Obtain Parts From Kawasaki

$40.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7013

Gasket-Case, Rocker

Note: Obtain Parts From Kawasaki

$5.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7014

Gasket-Breather

Note: Obtain Parts From Kawasaki

$6.49

$

In Stock, only 4 left!

0

11060B

Kawasaki 11060-7023

Gasket-Crankcase
(Superseded to 11061-7047)

Note: Obtain Parts From Kawasaki

$14.99

$

Usually ships in 2-5 days

0

12021

Kawasaki 12021-7002

Reed Valve ASM

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, only 1 left!

0

14091

Kawasaki 14091-7004

Cover

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 10

0

32153

Kawasaki 32153-7003

Pipe

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, only 3 left!

0

32153A

Kawasaki 32153-7004

Pipe

Note: Obtain Parts From Kawasaki

$21.99

$

Usually ships in 2-5 days

0

49015

Kawasaki 49015-6234

Cover-Crankcase
(Superseded to 49015-6265)

Note: Obtain Parts From Kawasaki

$165.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 49120-6135

Crankcase-Comp
(Superseded to 49120-6137)

Note: Obtain Parts From Kawasaki

$

$

Not available

92033

Kawasaki 92033-7004

Ring-Snap

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 12

0

92043

Kawasaki 92043-7001

Pin

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 7

0

92049

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

Note: Obtain Parts From Kawasaki

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7002

Seal-Oil
(Superseded to 92049-7010)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7005

SEAL-OIL, S O (8X14X5 H S)
(Superseded to 920497019)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7007

Seal-Oil
(Superseded to 92049-7022)

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 6

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 15

0

130A

Kawasaki 130B0640

Bolt-Flanged (6X40)
(Superseded to 130AA0640)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, only 3 left!

0

130B

Toro 130T0850

Bolt-Flanged (8X50)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

130C

Kawasaki 130T0875

Bolt-Flanged (8X75)
(Superseded to 130CA0875)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 9

0

172

Toro 172G0818

Bolt-Stud (8X18)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

214

Kawasaki 214B0408

SCREW-PAN (4X8)
(Superseded to 214AA0408)

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 5

0
