74245 (Z 555) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240002000) (2004) CARBURETOR ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

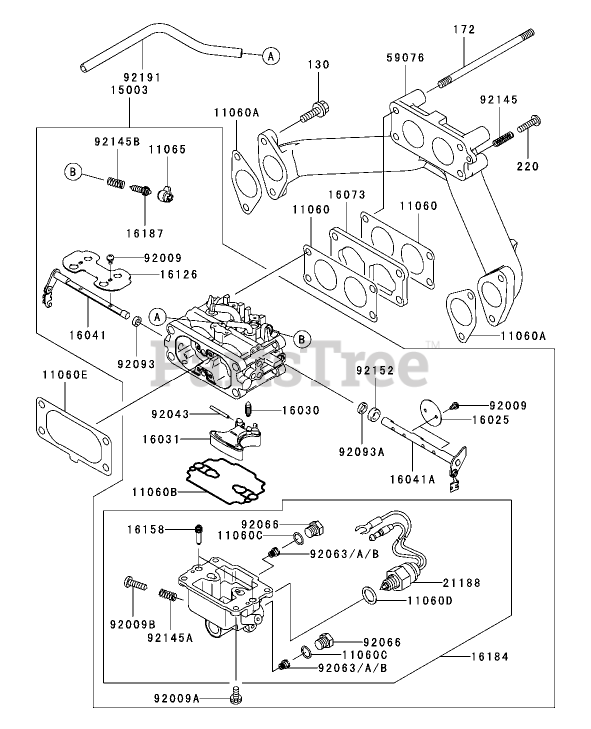

CARBURETOR ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

  • Title
11060

Kawasaki 11060-7010

Gasket-Carburetor

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7011

GASKET-MANIFOLD

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-7018

Gasket-Chamber, Float

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 20+

0

11060C

Kawasaki 11060-7019

Gasket-Plug, Main

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 12

0

11060D

Kawasaki 11060-7020

Gasket-Solenoid

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 9

0

11060E

Kawasaki 11060-7025

Gasket-Air Filter
(Superseded to 11061-7042)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-7004

Cap-Limitter

Note: Obtain Parts From Kawasaki

$21.99

$

Usually ships in 2-5 days

0

15003

Kawasaki 15003-7042

Carburetor ASM
(Superseded to 15004-7016)

Note: Obtain Parts From Kawasaki

$469.99

$

Usually ships in 2-5 days

0

16025

Kawasaki 16025-7002

Valve-Throttle

Note: Obtain Parts From Kawasaki

$24.99

$

Usually ships in 2-5 days

0

16030

Kawasaki 16030-7002

Valve-Float

Note: Obtain Parts From Kawasaki

$18.99

$

In Stock, Qty 20+

0

16031

Kawasaki 16031-7001

Float

Note: Obtain Parts From Kawasaki

$29.99

$

In Stock, Qty 6

0

16041

Kawasaki 16041-7011

Shaft-Carburetor
(Superseded to 16041-7060)

Note: Obtain Parts From Kawasaki

$32.99

$

In Stock, only 1 left!

0

16041A

Kawasaki 16041-7012

Shaft-Carburetor

Note: Obtain Parts From Kawasaki

$32.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-7003

Insulator

Note: Obtain Parts From Kawasaki

$

$

Not available

16126

Kawasaki 16126-7004

Valve-Choke

Note: Obtain Parts From Kawasaki

$6.49

$

Usually ships in 2-5 days

0

16158

Kawasaki 16158-7003

Jet-Slow, No.56

Note: Obtain Parts From Kawasaki

$29.99

$

In Stock, only 1 left!

0

16184

Kawasaki 16184-7005

Float Chamber ASM

Note: Obtain Parts From Kawasaki

$296.99

$

In Stock, only 1 left!

0

16187

Kawasaki 16187-7003

Needle-Jet

Note: Obtain Parts From Kawasaki

$13.99

$

Usually ships in 2-5 days

0

21188

Kawasaki 21188-7001

Solenoid

Note: Obtain Parts From Kawasaki

$172.99

$

In Stock, only 2 left!

0

59076

Kawasaki 59076-7003

Manifold-Intake
(Superseded to 59076-7006)

Note: Obtain Parts From Kawasaki

$

$

Not available

92009

Kawasaki 92009-7003

Screw

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

92009A

Kawasaki 92009-7005

Screw

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 17

0

92009B

Kawasaki 92009-7006

Screw-Drain

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 3 left!

0

92043

Kawasaki 92043-7004

Pin-Float

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, only 3 left!

0

92063

Kawasaki 92063-7012

Jet-Main, No.108

Note: Obtain Parts From Kawasaki

$21.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 92063-7013

Jet-Main, No.105

Note: Obtain Parts From Kawasaki

$20.99

$

Usually ships in 2-5 days

0

92063B

Kawasaki 92063-7014

Jet-Main, No.102

Note: Obtain Parts From Kawasaki

$20.99

$

Usually ships in 2-5 days

0

92066

Kawasaki 92066-7008

Plug-Jet, Main

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, only 1 left!

0

92093

Kawasaki 92093-7001

Seal (I D 5.9)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 12

0

92093A

Kawasaki 92093-7002

Seal (I D 6.9)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 17

0

92145

Kawasaki 92145-7005

Spring

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 12

0

92145A

Kawasaki 92145-7011

Spring

Note: Obtain Parts From Kawasaki

$2.49

$

Usually ships in 2-5 days

0

92145B

Kawasaki 92145-7013

Spring

Note: Obtain Parts From Kawasaki

$2.49

$

Usually ships in 2-5 days

0

92152

Kawasaki 92152-7002

Collar

Note: Obtain Parts From Kawasaki

$10.99

$

Usually ships in 2-5 days

0

92191

Kawasaki 92191-7010

Tube

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 13

0

130

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0

172

Kawasaki 172G06105

Bolt-Stud (6X10.5 )
(Superseded to 172BA06105)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, only 2 left!

0

220

Kawasaki 220B0520

Screw-Pan (5X20)
(Superseded to 220AA0520)

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0
