74244 (Z 553) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) HEAD, VALVE AND BREATHER ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

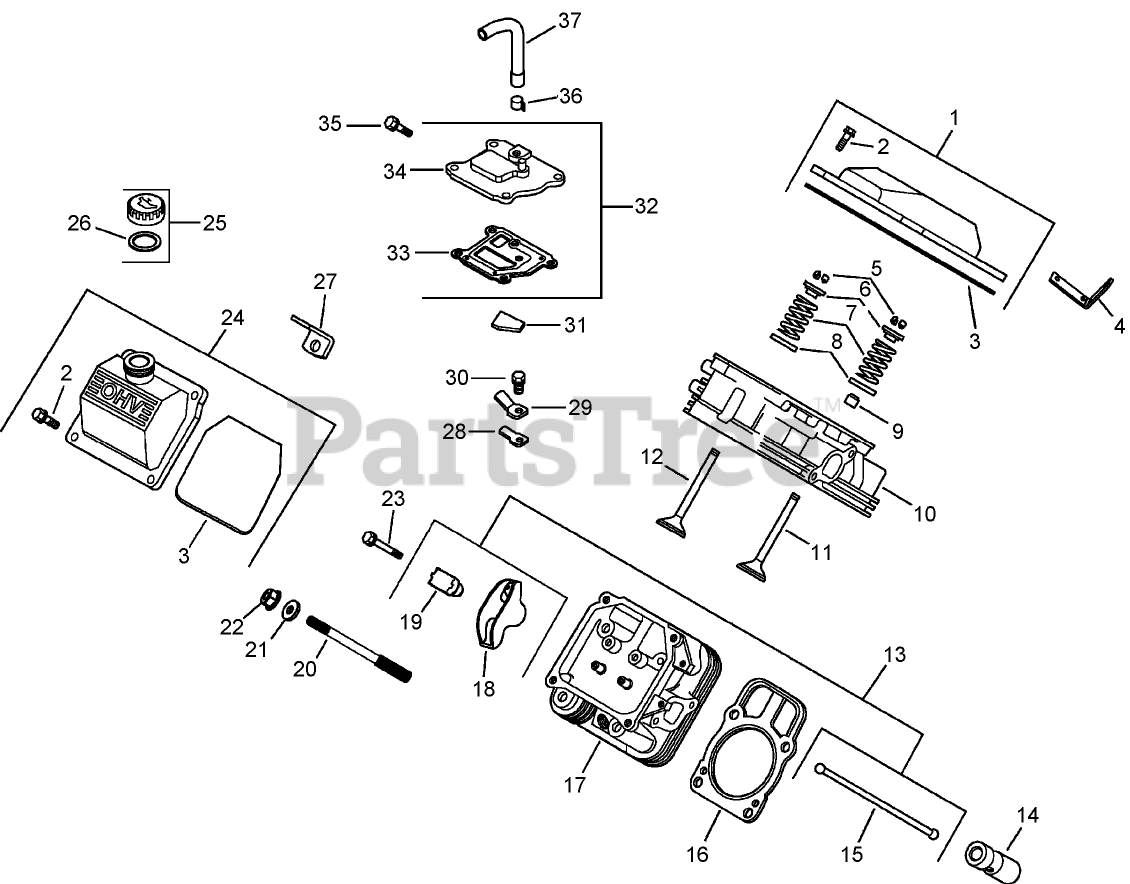

HEAD, VALVE AND BREATHER ASSEMBLY Parts Diagram

  • Title

1

Kohler 24 755 141-S

Plain Valve Cover Kit (Includes 2, 3)

Note: Obtain parts from www.kohlerplus.com

$35.99

$

In Stock, only 3 left!

0

2

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Kohler 24 153 28-S

O-Ring
(Superseded to 24 153 30-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, only 4 left!

0

4

Kohler 24 455 01-S

Strap-Lifting

Note: Obtain parts from www.kohlerplus.com

$37.99

$

Usually ships in 2-5 days

0

5

Kohler 12 755 03-S

RETAINER KIT

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, only 3 left!

0

6

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, Qty 9

0

7

Kohler 24 089 02-S

SPRING-VALVE

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 2 left!

0

8

Kohler 235011-S

RETAINER-SPRING

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

9

Kohler 66 032 05-S

SEAL-STEM, VALVE
(Superseded to 25 032 14-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

Usually ships in 2-5 days

0

10

Kohler 24 318 68-S

No. 1 Cylinder Head ASM
(Superseded to 24 318 202-S)

Note: Obtain parts from www.kohlerplus.com

$240.99

$

In Stock, only 1 left!

0

11

Kohler 24 017 01-S

VALVE-INTAKE (STD)

Note: Obtain parts from www.kohlerplus.com

$30.99

$

In Stock, Qty 20+

0

11

Kohler 24 017 02-S

VALVE-INTAKE (.25)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 24 016 01-S

VALVE-EXHAUST (STD)
(Superseded to 32 016 01-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, Qty 7

0

12

Kohler 24 016 02-S

VALVE-EXHAUST (.25)
(Superseded to 32 016 02-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 3 left!

0

13

Kohler 24 755 66-S

Valve Train Kit (Includes 15, 18, 19)

Note: Obtain parts from www.kohlerplus.com

$45.99

$

In Stock, only 1 left!

0

14

Kohler 25 351 01-S

Lifter-Valve
(Superseded to 25 351 11-S)

Note: Obtain parts from www.kohlerplus.com

$23.99

$

In Stock, Qty 14

0

15

Kohler 24 411 05-S

ROD-PUSH

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 11

0

16

Kohler 24 841 02-S

Cylinder Head Gasket Kit (Includes head mounting hardware)

Note: Obtain parts from www.kohlerplus.com

$45.99

$

Usually ships in 2-5 days

0

17

Kohler 24 318 71-S

No. 2 Cylinder Head ASM
(Superseded to 24 318 203-S)

Note: Obtain parts from www.kohlerplus.com

$240.99

$

In Stock, only 1 left!

0

18

Kohler 25 186 01-S

ARM-ROCKER

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, only 3 left!

0

19

Kohler 24 599 01-S

Pivot-Arm, Rocker
(Superseded to 24 599 02-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 12

0

20

Kohler 24 072 09-S

STUD (M8X1.25xM10X1.5x105MM)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 7

0

21

Kohler 24 468 16-S

WASHER-FLAT (8.6 MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 24 100 10-S

NUT-FLANGE (M8X1.25)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

23

Kohler 66 086 07-S

Screw
(Superseded to M-640034-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 19

0

24

Kohler 24 755 140-S

Oil Fill Valve Cover Kit (Includes 2, 3)

Note: Obtain parts from www.kohlerplus.com

$36.99

$

In Stock, only 1 left!

0

25

Kohler 25 755 13-S

Oil Fill Cap ASM (Includes 27)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, only 1 left!

0

26

Kohler 25 153 02-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

27

Kohler 12 445 05-S

Strap-Lifting
(Superseded to 25 445 02-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

28

Kohler 24 402 03-S

REED-BREATHER
(Superseded to 24 402 06-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 10

0

29

Kohler 66 018 04-S

RETAINER-REED

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 8

0

30

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

31

Kohler 24 050 01-S

Filter-Breather
(Superseded to 24 050 11-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

32

Kohler 24 033 01-S

Breather Kit (Includes 21, 34)

Note: Obtain parts from www.kohlerplus.com

$31.99

$

In Stock, only 2 left!

0

33

Kohler 24 041 51-S

GASKET-BREATHER
(Superseded to 24 041 67-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, only 4 left!

0

34

Kohler 24 096 86-S

COVER-BREATHER
(Superseded to 24 033 01-S)

Note: Obtain parts from www.kohlerplus.com

$31.99

$

In Stock, only 2 left!

0

35

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

36

Kohler 25 237 08-S

Clamp-Hose
(Superseded to 25 237 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 11

0

37

Kohler 24 326 31-S

Hose-Breather
(Superseded to 24 326 91-S)

Note: Obtain parts from www.kohlerplus.com

$6.99

$

Usually ships in 2-5 days

0

Kohler 24 755 147-S

Cylinder Head Hardware Kit (Includes retainer kit, valve spring cap, valve spring, spring retainer, valve stem seal, intake valve, exhaust valve, push rod, rocker arm, and rocker arm pivot)

Note: Obtain parts from www.kohlerplus.com

$96.99

$

In Stock, only 3 left!

0

Kohler 24 755 147-S

Cylinder Head Hardware Kit (Includes retainer kit, valve spring cap, valve spring, spring retainer, valve stem seal, intake valve, exhaust valve, push rod, rocker arm, and rocker arm pivot)

Note: Not illustrated

$96.99

$

In Stock, only 3 left!

0
