74244 (Z 553) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) CRANKCASE ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

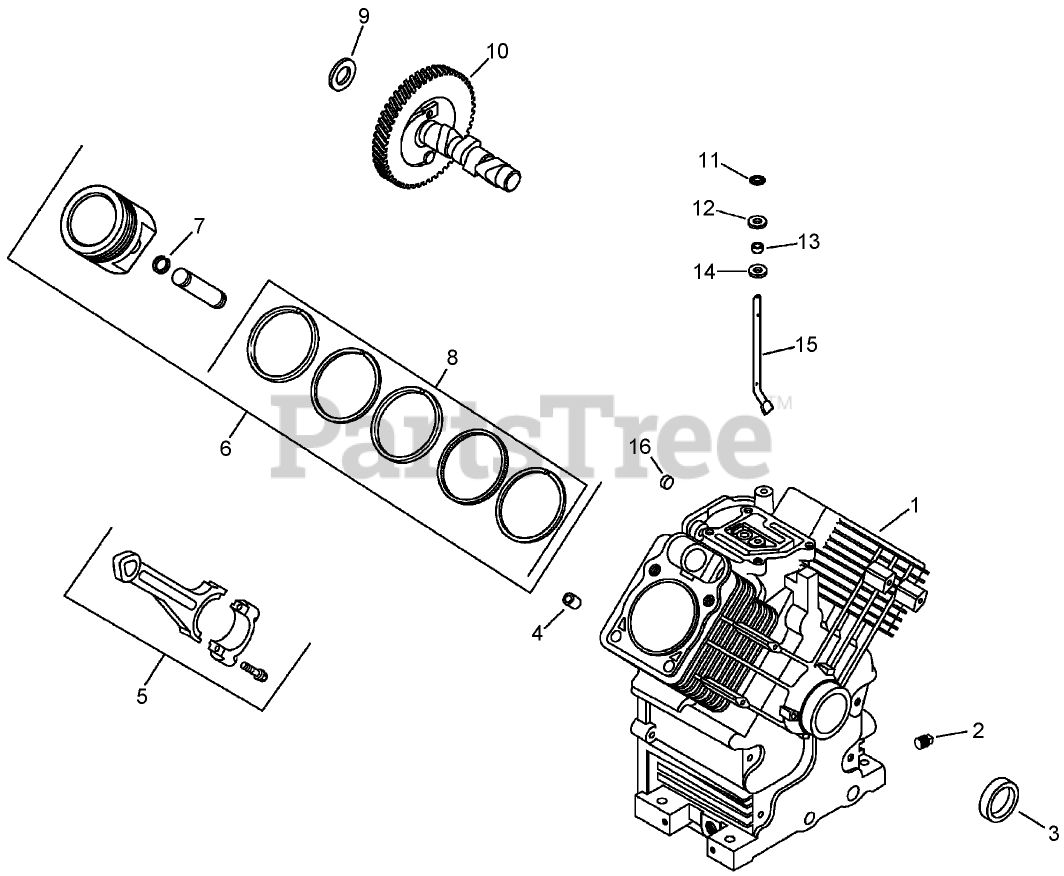

CRANKCASE ASSEMBLY Parts Diagram

  • Title
1

Crankcase (Use Short Block or Miniblock)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1

Crankcase (Use Short Block or Miniblock)

Note: Not serviced separately

$

$

Not available

2

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

3

Kohler 24 032 01-S

SEAL-OIL
(Superseded to 24 032 19-S)

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, Qty 20+

0

4

Kohler 24 380 13-S

Pin-Locating
(Superseded to 24 380 16-S)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

5

Kohler 24 067 13-S

Rod-Connecting (Standard)
(Superseded to 25 067 04-S)

Note: Obtain parts from www.kohlerplus.com

$59.99

$

In Stock, Qty 6

0

5

Kohler 24 067 14-S

Rod-Connecting (.25)
(Superseded to 25 067 05-S)

Note: Obtain parts from www.kohlerplus.com

$59.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 09-S

Piston w/Ring Set (Std.) (Includes 7, 8)
(Superseded to 24 874 54-S)

Note: Obtain parts from www.kohlerplus.com

$250.99

$

In Stock, only 3 left!

0

6

Kohler 24 874 15-S

Piston w/Ring Set (.08)
(Superseded to 24 874 55-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

Kohler 24 874 10-S

Piston w/Ring Set (.25)
(Superseded to 24 874 56-S)

Note: Obtain parts from www.kohlerplus.com

$289.99

$

Usually ships in 2-5 days

0

6

Kohler 24 874 11-S

Piston w/Ring Set (.50)
(Superseded to 24 874 45-S)

Note: Obtain parts from www.kohlerplus.com

$289.99

$

Usually ships in 2-5 days

0

7

Kohler 24 018 01-S

RETAINER-PIN, PISTON

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 7

0

8

Kohler 24 108 08-S

Ring Set (STD and .08)
(Superseded to 24 108 18-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

8

Kohler 24 108 09-S

Ring Set (.25)
(Superseded to 24 108 20-S)

Note: Obtain parts from www.kohlerplus.com

$289.99

$

Usually ships in 2-5 days

0

8

Kohler 24 108 10-S

Ring Set (.50)
(Superseded to 24 108 21-S)

Note: Obtain parts from www.kohlerplus.com

$146.99

$

Usually ships in 2-5 days

0

9

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

9

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

9

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

9

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

9

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 012 10-S

Camshaft Kit
(Superseded to 24 012 23-S)

Note: Obtain parts from www.kohlerplus.com

$138.99

$

Usually ships in 2-5 days

0

11

Kohler 24 018 09-S

RETAINER-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

12

Kohler M-931010-S

WASHER-FLAT (9MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

13

Kohler 28 032 09-S

SEAL-CROSS SHAFT, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 7

0

14

Kohler 24 468 15-S

WASHER-FLAT (11/32)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

15

Kohler 24 144 38-S

SHAFT-CROSS, GOVERNOR
(Superseded to 24 144 39-S)

Note: Obtain parts from www.kohlerplus.com

$41.99

$

Usually ships in 2-5 days

0

16

Kohler 52 139 09-S

PLUG-CUP

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 2 left!

0
