74244 (Z 553) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) GROUP 5-IGNITION/ELECTRICAL ASSEMBLY KOHLER CH23S-76569 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

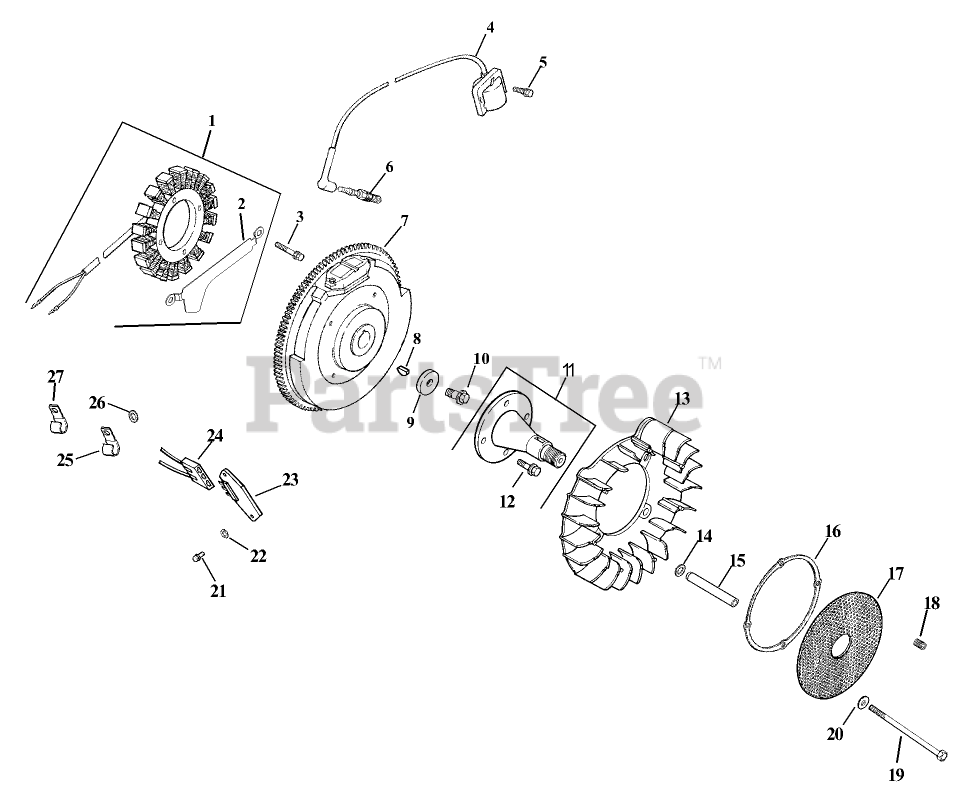

GROUP 5-IGNITION/ELECTRICAL ASSEMBLY KOHLER CH23S-76569 Parts Diagram

  • Title

1

Kohler 54 755 09-S

Kit, 15 amp stator (Includes 2)
(Superseded to 237878-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$149.99

$

In Stock, Qty 8

0

2

Kohler 24 126 71-S

Bracket-Wire, Stator
(Superseded to 24 126 139-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

Usually ships in 2-5 days

0

3

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!
