74244 (Z 553) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) DRIVE IDLER ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

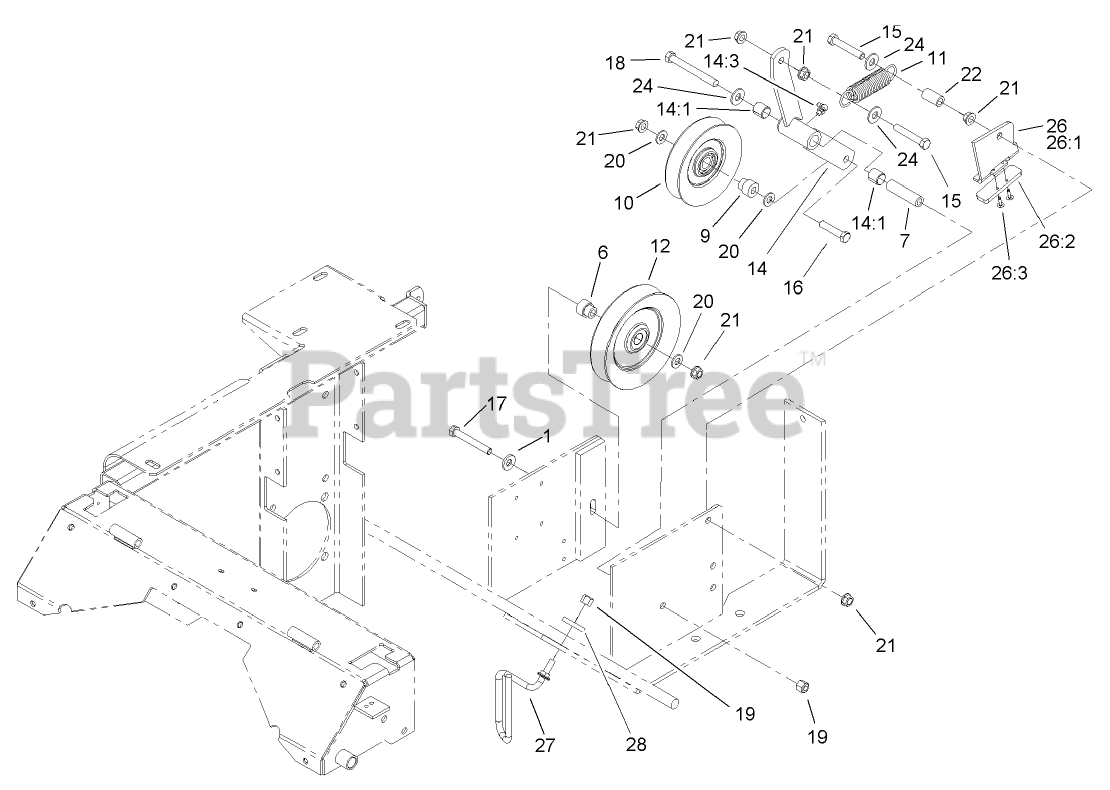

DRIVE IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Toro 103-2627

Bushing-Idler

$3.49

$

In Stock, Qty 20+

0

7

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

9

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

10

Toro 99-4638

Idler
(Superseded to 1-603805)

$54.99

$

In Stock, Qty 14

0

11

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

12

Toro 1-633166

PULLEY-IDLER

$56.99

$

In Stock, only 4 left!

0

14

Toro 103-3147

Arm ASM

$102.99

$

In Stock, only 1 left!

0

14:1

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14:2

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

15

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 17

0

18

Toro 1-800805

SCREW-HH

$5.49

$

In Stock, only 4 left!

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22

Toro 1-603401

SPACER

$6.99

$

In Stock, Qty 8

0

24

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

26

Toro 106-3271

Travel Limiter ASM

$41.99

$

In Stock, only 1 left!

0

26:1

Toro 106-3228-03

Plate-Limiter, Pulley

$28.99

$

In Stock, only 1 left!

0

26:2

Toro 106-3229

PAD-BUMPER

$8.99

$

In Stock, only 1 left!

0

26:3

Toro 3269-24

RIVET

$2.99

$

In Stock, Qty 12

0

27

Toro 105-7772

Guide-Belt
(Superseded to 108-7204-03)

$85.99

$

In Stock, only 1 left!

0

28

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0
