74243 (Z 557) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) FUEL TANK AND LINE ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

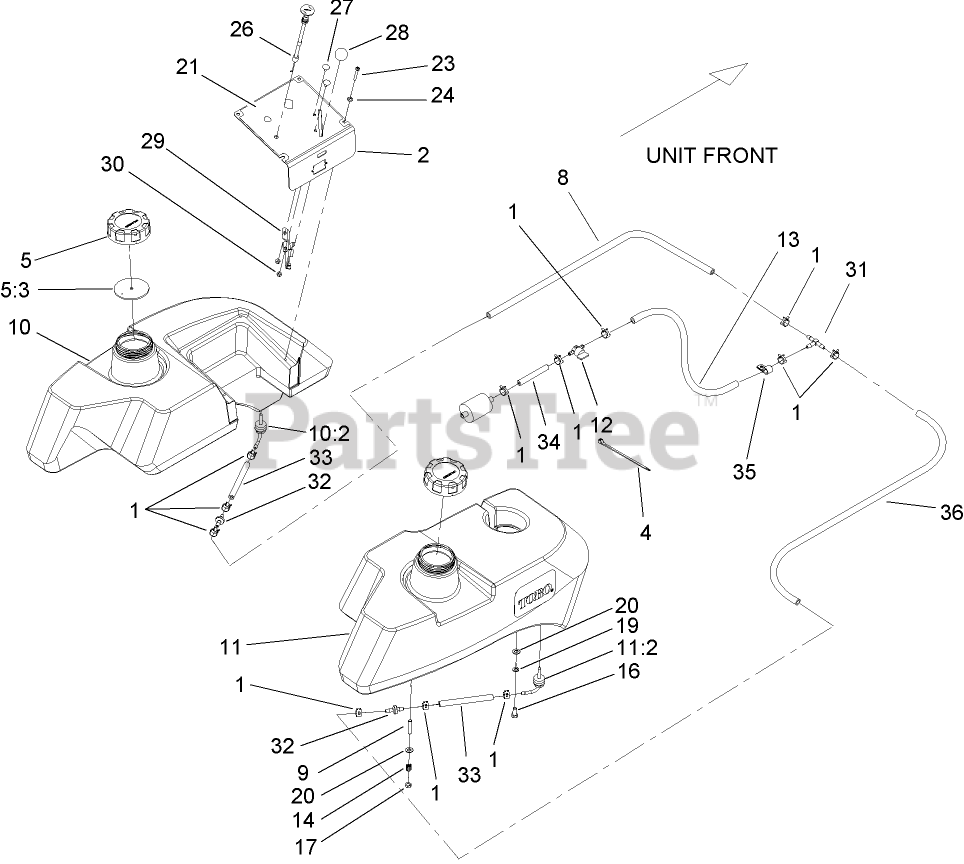

FUEL TANK AND LINE ASSEMBLY Parts Diagram

  • Title

1

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

2

Toro 107-8079-03

PANEL-CONTROL
(Superseded to 110-3886)

$215.99

$

Usually ships in 3-6 days

0

4

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

5

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 6

0

5:3

Toro 88-4010

GASKET-CAP, GAS

$29.99

$

In Stock, only 1 left!

0

8

Toro 94-7420

HOSE-FUEL
(Superseded to 1-603954)

$8.99

$

In Stock, only 1 left!

0

9

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

10

Toro 106-9980

LH Fuel Tank ASM
(Superseded to 105-3644)

$771.99

$

Usually ships in 3-6 days

0

10:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, only 3 left!

0

11

Toro 106-9979

RH Fuel Tank ASM
(Superseded to 105-3643)

$771.99

$

Usually ships in 3-6 days

0

11:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, only 3 left!

0

12

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 8

0

13

Toro 107-2119

Hose-Fuel

$62.99

$

Usually ships in 3-6 days

0

14

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

19

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 106-9969

Decal-Panel, Control

$

$

Not available

23

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

24

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

26

Toro 106-9962

Control-Choke, Push / Pull

$75.99

$

In Stock, only 4 left!

0

27

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

28

Toro 1-513592

KNOB-BALL

$6.49

$

In Stock, Qty 10

0

29

Toro 107-8073

CABLE-THROTTLE

$66.99

$

In Stock, only 3 left!

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0

32

Toro 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, only 2 left!

0

33

Toro 99-7190

HOSE-FUEL
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

34

Toro 105-8342

HOSE-FUEL

$6.49

$

In Stock, only 4 left!

0

35

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

36

Toro 1-543526

HOSE-FUEL
(Superseded to 109-0302)

$12.99

$

In Stock, Qty 5
